PanelSet SF Parts
Schneider Electric
NSYBHS800L2 hor. busbar sup. In 3200A 10 mm bars. Bars distance 115mm. For 800mm widths
Schneider Electric
NSYSMP2D8Kit for adapting mounting plates in double doors enclosures, PanelSeT SFN, PanelSeT SF, for electrical enclosure D800mm
Schneider Electric
NSYSMP2D5Kit for adapting mounting plates in double doors enclosures, PanelSeT SFN, PanelSeT SF, for electrical enclosure D500mm
Schneider Electric
NSYSMP2D4Kit for adapting mounting plates in double doors enclosures, PanelSeT SFN, PanelSeT SF, for electrical enclosure D400mm
Compare PanelSet SF
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Mounting location | Depth |
|---|---|---|---|
| NSYSFHFBK206 | EMC coupling kit | Side by side | — |
| NSYSFHFBK204 | EMC coupling kit | Side by side | — |
| NSYSFHFBK186 | EMC coupling kit | Side by side | — |

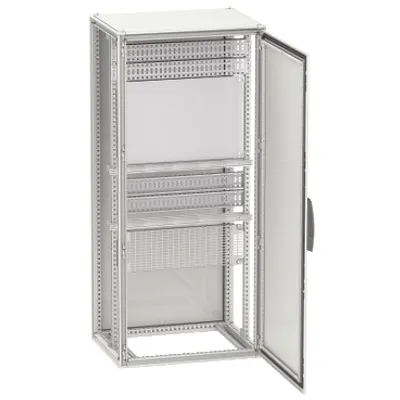

| NSYSFHFBK184 | EMC coupling kit | Side by side | — |
| NSYBHS800L | Busbar support | On structure of enclosure | 39 mm |
| NSYSDCRV18 | Door upright | On door reinforcement frame | 18 mm |
| NSYSDCRV20 | Door upright | On door reinforcement frame | 18 mm |
| NSYSDCRV22 | Door upright | On door reinforcement frame | 18 mm |
| NSYSMP2D8 | Adaptation kit | Bottom and top centre of enclosure | 707 mm |
| NSYSMP2D5 | Adaptation kit | Bottom and top centre of enclosure | 407 mm |
| NSYSMP2D4 | Adaptation kit | Bottom and top centre of enclosure | Nominal : 400 mm |
