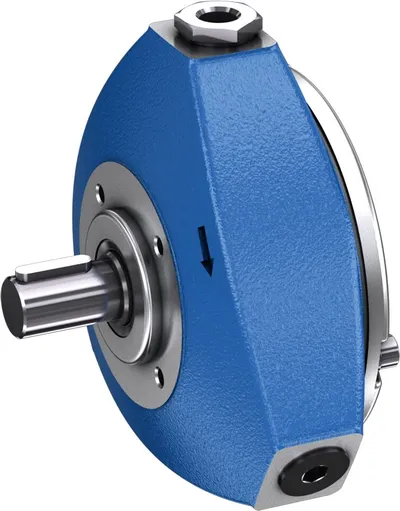

Radial piston pumps Parts
Compare Radial piston pumps
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connection diagram | Size [cm³] | Operating pressure, max. [bar] | Max. flow [l/min] | Weight [kg] |
|---|---|---|---|---|---|
| R901516922 | 1 | 2.5 | 700.0 | 3.5 | 9.53 |
| R901089817 | 1 | 8 | 700.0 | 11.0 | 12.71 |
| R901246317 | 2 | 8 | 700.0 | 11.0 | 12.71 |
| R901089810 | 1 | 8 | 700.0 | 11.0 | 12.7 |
| R901121470 | 1 | 8 | 700.0 | 11.0 | 17.01 |
| R901131113 | 5 | 8 | 700.0 | 11.0 | 16.8 |
| R901093873 | 2 | 8 | 700.0 | 11.0 | 17.52 |
| R901093864 | 1 | 8 | 700.0 | 11.0 | 16.81 |
| R901324649 | 2 | 8 | 700.0 | 11.0 | 16.48 |
| R901104134 | 1 | 8 | 700.0 | 11.0 | 16.3 |
| R901089169 | 10 | 8 | 700.0 | 11.0 | 16.28 |
| R901088970 | 6 | 8 | 700.0 | 11.0 | 16.44 |
| R901088960 | 5 | 8 | 700.0 | 11.0 | 16.28 |
| R901088952 | 2 | 8 | 700.0 | 11.0 | 17.01 |
| R901088940 | 1 | 8 | 700.0 | 11.0 | 16.26 |
| R901485286 | 5 | 8 | 500.0 | 12.0 | 11.05 |
| R901089924 | 1 | 8 | 500.0 | 12.0 | 11.62 |
| R901089806 | 1 | 8 | 500.0 | 12.0 | 10.88 |
| R901093869 | 5 | 8 | 500.0 | 12.0 | 10.74 |
| R901089799 | 1 | 8 | 500.0 | 12.0 | 10.7 |
| R901093866 | 1 | 8 | 500.0 | 12.0 | 11.04 |
| R901154173 | 5 | 8 | 500.0 | 12.0 | 11.05 |
| R901535693 | 1 | 8 | 500.0 | 12.0 | 15 |
| R901117824 | 1 | 8 | 500.0 | 12.0 | 10.8 |
Common to all listed parts
| Displacement type | constant |
| Product family | PR4 |
| Direction of rotation | clockwise rotation |
| Mounting flange | 4-hole fastening centering 63 mm |
| Hydraulic fluid | HLP |
