Bosch Rexroth R901535693

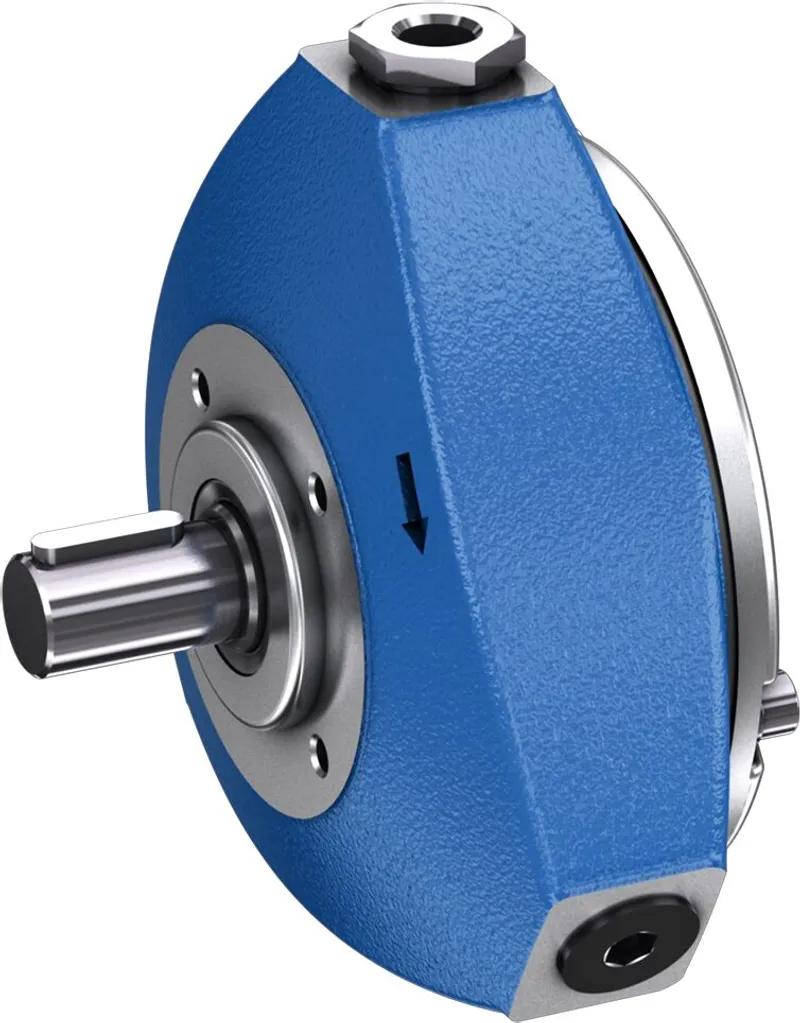

RADIAL PISTON PUMP PR4-3X/8,00-500RA01V01-C3.1
- MPN
- R901535693
- Category
- Radial piston pumps
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Bosch Rexroth R901535693?
5-piston pump
Radial piston pump with constant displacement
For industrial applications in open circuit
FKM seal
Cast iron housing
Specifications
Specifications
| Connection diagram | 1 |
| Displacement type | constant |
| Size [cm³] | 8 |
| Product family | PR4 |
| Operating pressure, max. [bar] | 500.0 |
| Max. flow [l/min] | 12.0 |
| Through-drive | without |
| Direction of rotation | clockwise rotation |
| Shaft end | Cylindrical Ø 25 mm with fitting key, ISO 3019-2 |
| Mounting flange | 4-hole fastening centering 63 mm |
| Hydraulic fluid | HLP |
| Seals | FKM |
| Weight [kg] | 15 |
R901535693: frequently asked questions
When can R901535693 be shipped?
R901535693 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901535693 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901535693 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901535693, subject to availability and destination.
