SENTRON 3NP1 Fuse Switch Disconnectors up to 630 A Parts
Compare SENTRON 3NP1 Fuse Switch Disconnectors up to 630 A
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] — with conventional rated thermal current without fuse per device | connectable conductor cross-section for main contacts — solid or stranded minimum | width | depth | Net Weight |
|---|---|---|---|---|---|
| 3NP1163-1BC14 | 90 W | 120 mm² | 249.4 mm | 195.7 mm | 5.468 kg |
| 3NP1163-1BC13 | 90 W | 120 mm² | 249.4 mm | 195.7 mm | 5.556 kg |
| 3NP1163-1BC12 | 90 W | 120 mm² | 249.4 mm | 195.7 mm | 5.54 kg |
| 3NP1163-1BC11 | 90 W | 120 mm² | 249.4 mm | 242.3 mm | 5.868 kg |

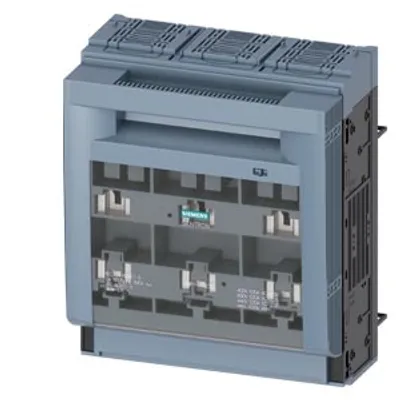

| 3NP1163-1BC10 | 90 W | 120 mm² | 249.4 mm | 164.5 mm | 5.197 kg |
| 3NP1161-1DA24 | 30 W | 50 mm² | 89.4 mm | 169.7 mm | 2.223 kg |
| 3NP1161-1DA20 | 30 W | 50 mm² | 89.4 mm | 138.5 mm | 2.226 kg |
| 3NP1143-1JC22 | 24 W | 70 mm² | 183.7 mm | 172.5 mm | 3.639 kg |
| 3NP1143-1JC21 | 24 W | 70 mm² | 183.7 mm | 214.8 mm | 3.979 kg |
| 3NP1143-1JC20 | 24 W | 70 mm² | 183.7 mm | 138 mm | 3.284 kg |
| 3NP1143-1JC13 | 24 W | 16 mm² | 183.7 mm | 169.5 mm | 3.663 kg |
| 3NP1143-1DA20 | 24 W | 70 mm² | 183.7 mm | 116 mm | 2.924 kg |
| 3NP1143-1DA14 | 24 W | 16 mm² | 183.7 mm | 146.5 mm | 3.085 kg |
| 3NP1143-1DA13 | 24 W | 16 mm² | 183.7 mm | 146.5 mm | 3.147 kg |

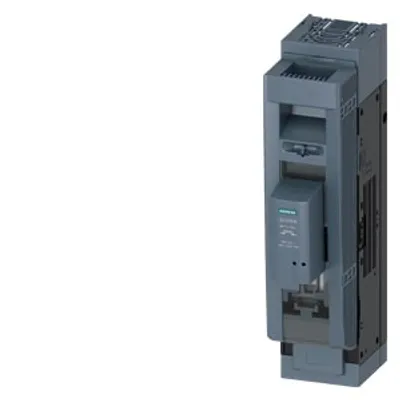

| 3NP1141-1DA14 | 8 W | 16 mm² | 69.7 mm | 146.5 mm | 1.394 kg |
| 3NP1141-1DA10 | 8 W | 16 mm² | 69.7 mm | 116 mm | 1.319 kg |
| 3NP1134-1CA20 | 20 W | 6 mm² | 147.7 mm | 86.5 mm | 1.192 kg |
| 3NP1134-1CA10 | 20 W | 2.5 mm² | 147.7 mm | 86.5 mm | 1.142 kg |
| 3NP1134-1BC20 | 20 W | 6 mm² | 147.6 mm | 137.5 mm | 1.797 kg |
| 3NP1134-1BC10 | 20 W | 2.5 mm² | 147.6 mm | 137.5 mm | 1.779 kg |
| 3NP1133-1CA13 | 15 W | 2.5 mm² | 105.8 mm | 126.2 mm | 1.102 kg |
| 3NP1133-1CA12 | 15 W | 2.5 mm² | 105.8 mm | 126.2 mm | 1.067 kg |
| 3NP1133-1CA11 | 15 W | 2.5 mm² | 105.8 mm | 165.5 mm | 1.366 kg |
| 3NP1133-1CA10 | 15 W | 2.5 mm² | 105.8 mm | 86.5 mm | 776.5 g |
Common to all listed parts
| product designation | Fuse switch disconnector |
| design of the load switch strip form | No |
| type of the driving mechanism motor drive | No |
| power factor — at AC-22 B | 0.65 |
| power factor — with capacitive load | -0.25 |
| fuse system | LV HRC fuse |
| insulation voltage — rated value | 690 V |
| insulation voltage — with degree of pollution 3 at AC rated value | 690 V |
