SENTRON 3NP1 Fuse Switch Disconnectors up to 630 A Parts
Compare SENTRON 3NP1 Fuse Switch Disconnectors up to 630 A
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the safety monitoring | power loss [W] — with conventional rated thermal current without fuse per device | type of connectable conductor cross-sections of the laminated conductors maximum | depth | Net Weight |
|---|---|---|---|---|---|
| 3NP1133-1BC24 | electronic EFM 15 | 15 W | 9 x 12 mm | 177.4 mm | 1.393 kg |

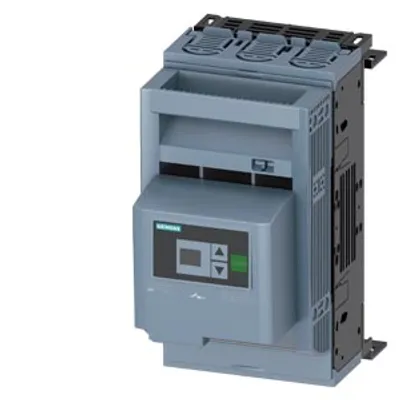

| 3NP1133-1BC23 | electronic EFM 20 | 15 W | 9 x 12 mm | 177.2 mm | 1.426 kg |

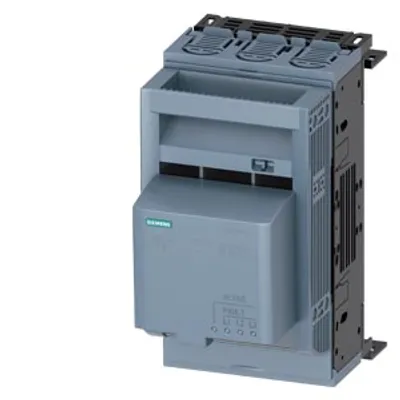

| 3NP1133-1BC22 | electronic EFM 10 | 15 W | 9 x 12 mm | 177.2 mm | 1.344 kg |

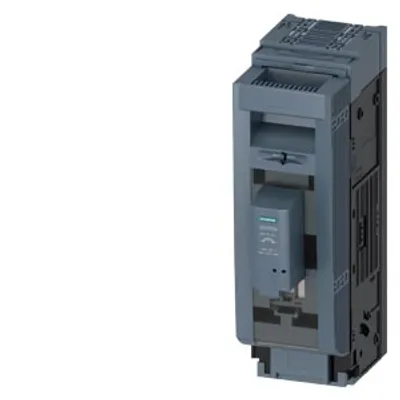

| 3NP1161-1DA14 | electronic EFM 15 | 30 W | 40 x 18 mm | 171.9 mm | 2.101 kg |

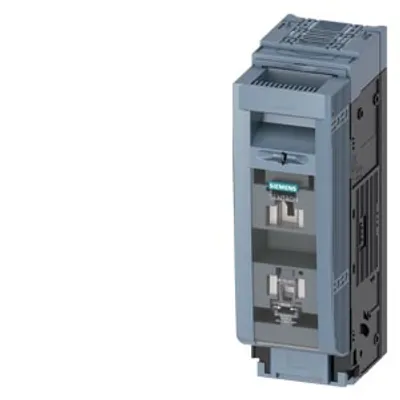

| 3NP1161-1DA10 | Without | 30 W | 40 x 18 mm | 138.5 mm | 2.014 kg |

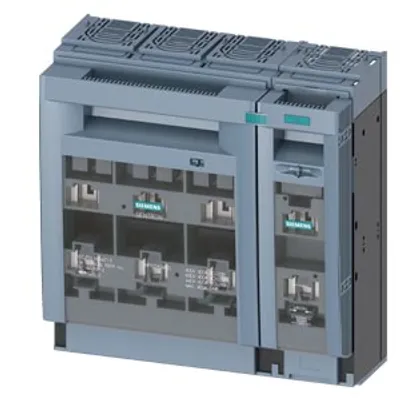

| 3NP1154-1DA20 | Without | 56 W | 32 x 10 mm | 130 mm | 6.289 kg |
| 3NP1154-1DA10 | Without | 56 W | 34 x 18 mm | 130 mm | 5.466 kg |

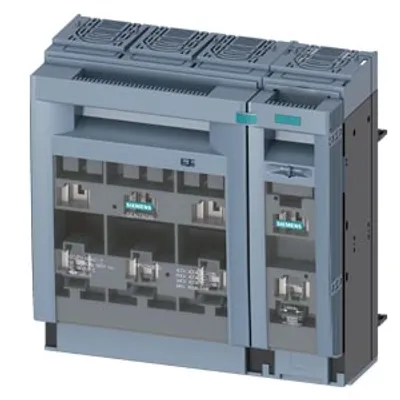

| 3NP1154-1BC20 | Without | 56 W | 32 x 10 mm | 157 mm | 6.593 kg |
| 3NP1154-1BC10 | Without | 56 W | 34 x 18 mm | 157 mm | 6.282 kg |
| 3NP1153-1JC23 | electronic EFM 20 | 42 W | 32 x 10 mm | 184.6 mm | 5.046 kg |
| 3NP1153-1DA11 | electro mechanical | 42 W | 34 x 18 mm | 208 mm | 4.366 kg |

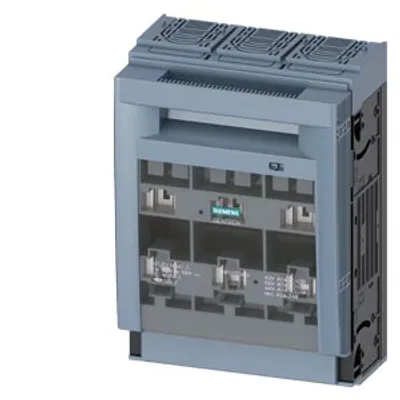

| 3NP1153-1DA10 | Without | 42 W | 34 x 18 mm | 130 mm | 3.725 kg |

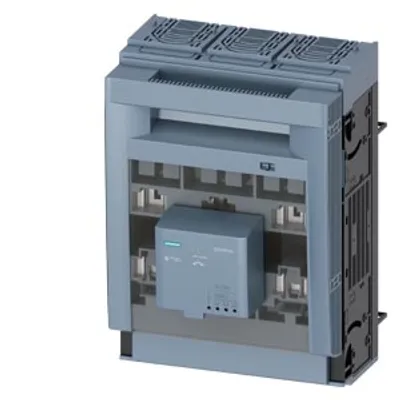

| 3NP1153-1BC24 | electronic EFM 15 | 42 W | 32 x 10 mm | 187.6 mm | 4.923 kg |
| 3NP1153-1BC23 | electronic EFM 20 | 42 W | 32 x 10 mm | 187.6 mm | 5.069 kg |

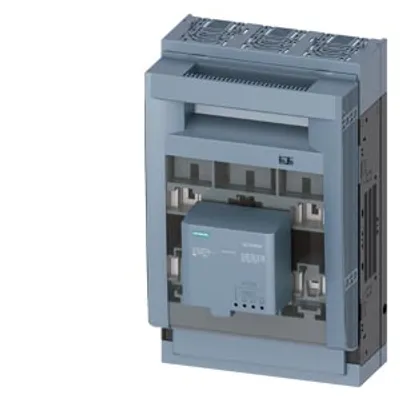

| 3NP1143-1DA12 | electronic EFM 10 | 24 W | 25 x 18 mm | 146.5 mm | 3.135 kg |

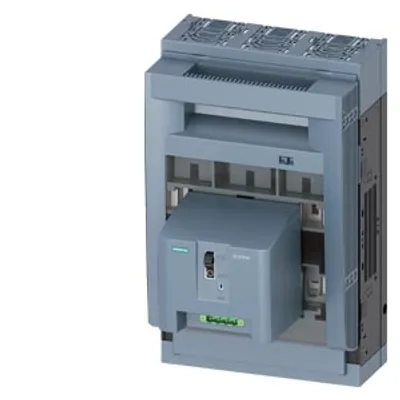

| 3NP1143-1DA11 | electro mechanical | 24 W | 25 x 18 mm | 192.8 mm | 3.463 kg |

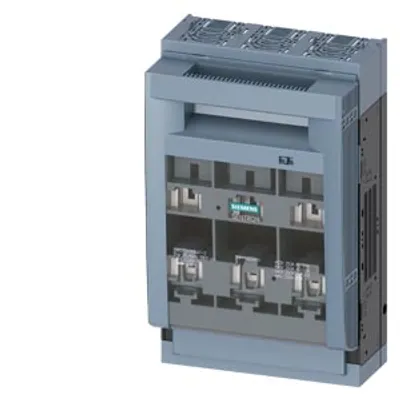

| 3NP1143-1DA10 | Without | 24 W | 25 x 18 mm | 116 mm | 2.742 kg |
| 3NP1143-1BC24 | electronic EFM 15 | 24 W | 20 x 10 mm | 172.5 mm | 3.659 kg |

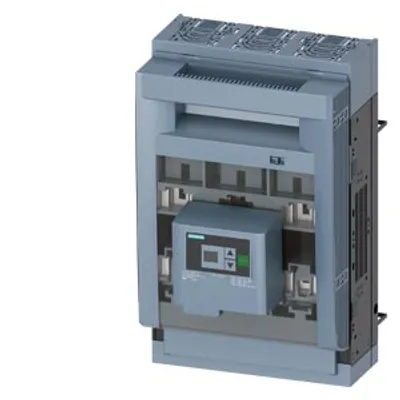

| 3NP1143-1BC23 | electronic EFM 20 | 24 W | 20 x 10 mm | 172.5 mm | 3.711 kg |

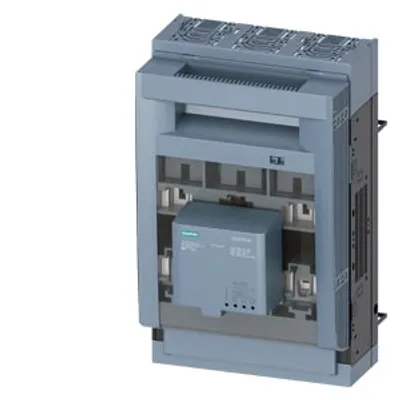

| 3NP1143-1BC22 | electronic EFM 10 | 24 W | 20 x 10 mm | 172.5 mm | 3.634 kg |

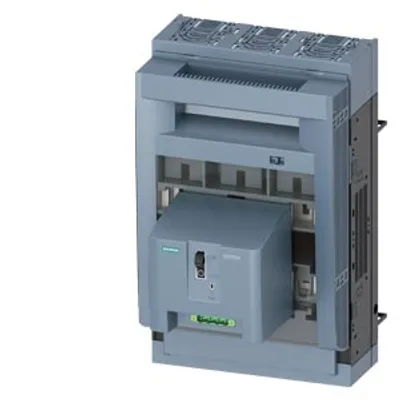

| 3NP1143-1BC21 | electro mechanical | 24 W | 20 x 10 mm | 218.8 mm | 3.97 kg |
| 3NP1133-1JB23 | electronic EFM 20 | 15 W | 9 x 12 mm | 174.4 mm | 1.414 kg |

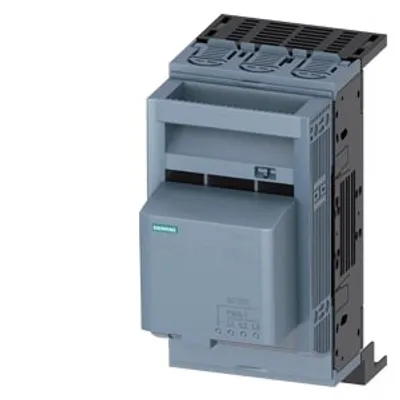

| 3NP1133-1JB22 | electronic EFM 10 | 15 W | 9 x 12 mm | 174.4 mm | 1.364 kg |

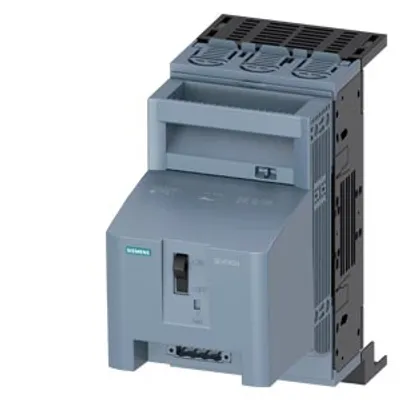

| 3NP1133-1JB21 | electro mechanical | 15 W | 9 x 12 mm | 211.5 mm | 1.69 kg |
Common to all listed parts
| product designation | Fuse switch disconnector |
| design of the load switch strip form | No |
| type of the driving mechanism motor drive | No |
| power factor — at AC-22 B | 0.65 |
| power factor — with capacitive load | -0.25 |
| fuse system | LV HRC fuse |
| insulation voltage — rated value | 690 V |
| insulation voltage — with degree of pollution 3 at AC rated value | 690 V |
