Siemens 3NP1133-1CA11

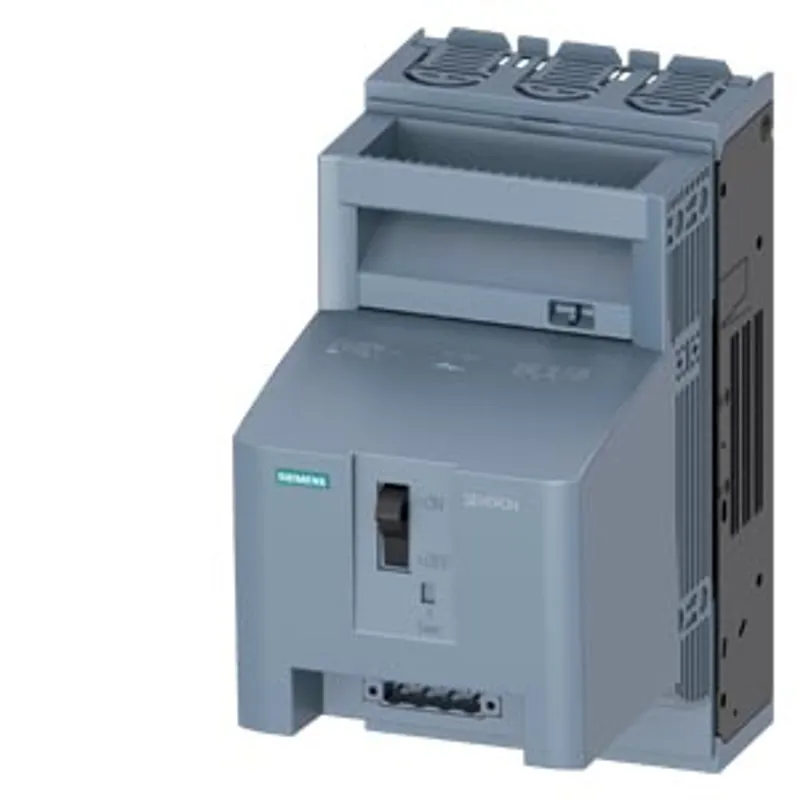

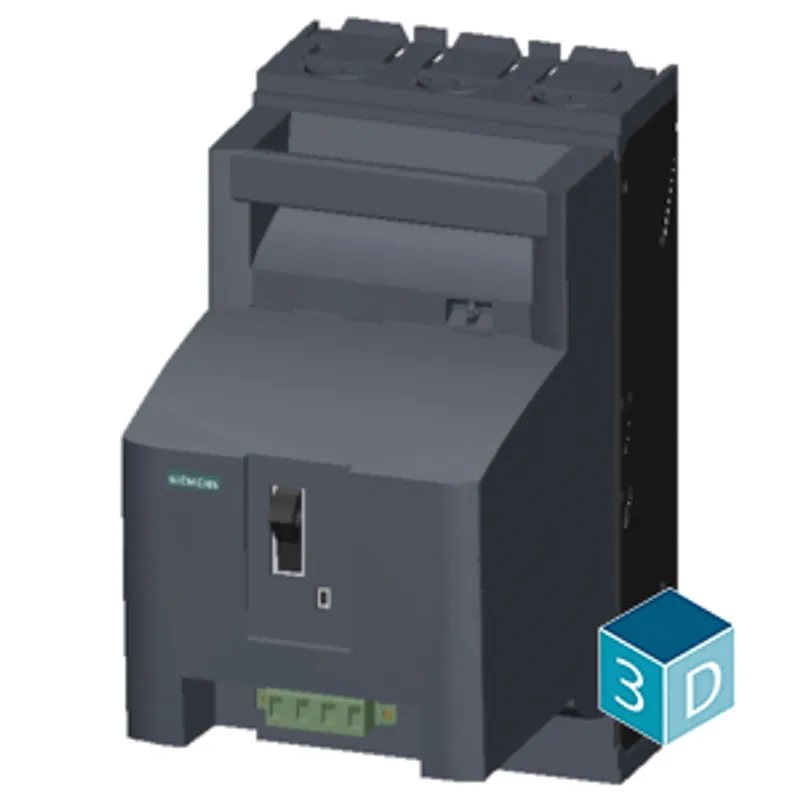

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH00, 160 A, for assembly and installation on mounting plate

MPN: 3NP1133-1CA11
Category: SENTRON 3NP1 Fuse Switch Disconnectors up to 630 A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 3NP1133-1CA11?

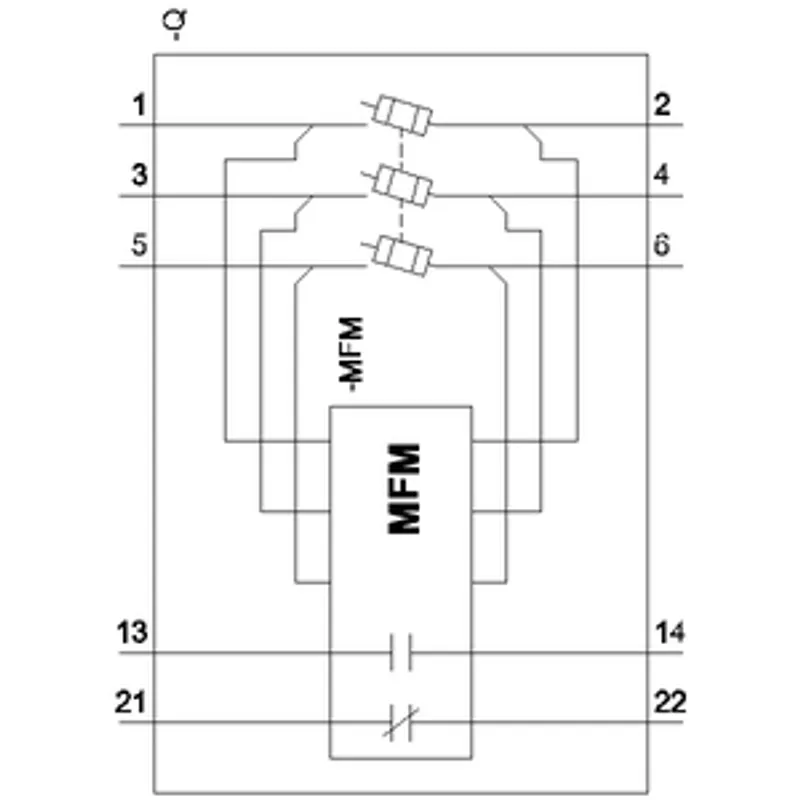

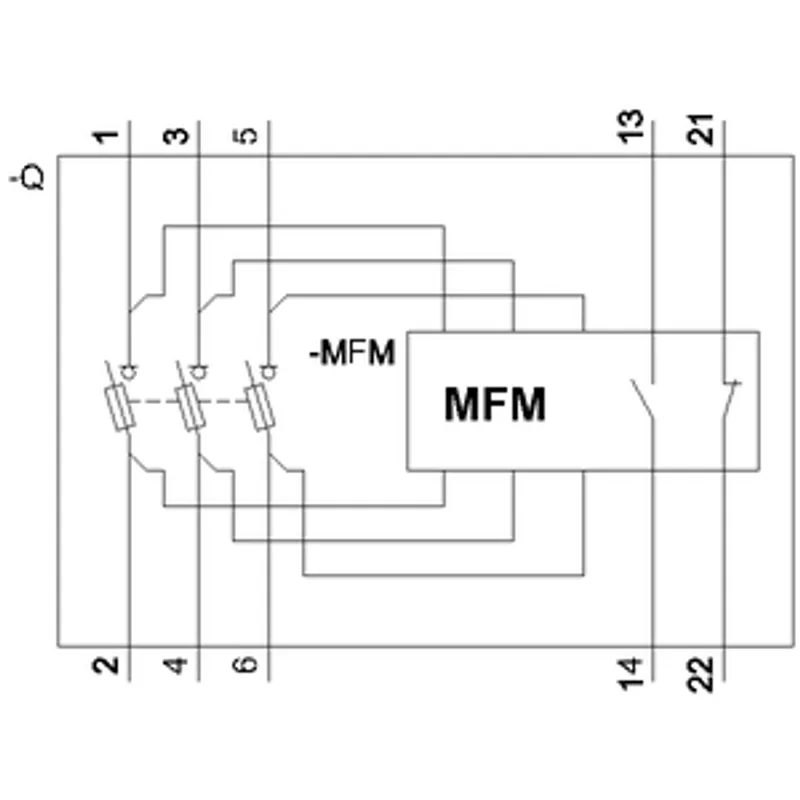

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH00, 160 A, for assembly and installation on mounting plate, flat terminal, Fuse monitoring: electromechanical, Cover level 45 mm

Specifications

Model

product designation	Fuse switch disconnector
design of the safety monitoring	electro mechanical
design of the load switch strip form	No
type of the driving mechanism motor drive	No

General technical data

number of poles	3
type of device	For assembly and installation on mounting plate
size of disconnecting link	00 and 000
size of fuse link	NH000, NH00
let-through current with closed switch maximum	23 kA
mechanical service life (operating cycles) typical	2 000
I2t value with closed switch maximum	223 kA²·s
power factor — at AC-22 B	0.65
power factor — at AC-23 B	0.45
power factor — with capacitive load	-0.25
fuse system	LV HRC fuse
degree of pollution	3

Voltage

insulation voltage — rated value	690 V
insulation voltage — with degree of pollution 3 at AC rated value	690 V
insulation voltage — with degree of pollution 2 at AC rated value	1 000 V
power factor at AC-21 B	0.95
surge voltage resistance rated value	8 kV
operational current — at 35 °C rated value	160 A
operational current — at 40 °C rated value	155 A
operational current — at 45 °C rated value	145 A
operational current — at 50 °C rated value	140 A
operational current — at 55 °C rated value	133 A
operational current — at AC-21 B at 240 V rated value	160 A
operational current — at AC-21 B at 400 V rated value	160 A
operational current — at AC-21 B at 500 V rated value	160 A
operational current — at AC-21 B at 690 V rated value	160 A
operational current — at AC-22 B at 240 V rated value	160 A
operational current — at AC-22 B at 400 V rated value	160 A
operational current — at AC-22 B at 500 V rated value	160 A
operational current — at AC-22 B at 690 V rated value	125 A
operational current — at AC-23 B at 690 V rated value	35 A
operational current — at AC-23 B at 500 V rated value	63 A
operational current — at AC-23 B at 400 V rated value	160 A
operational current — at AC-23 B at 240 V rated value	160 A
operational current — at DC-21 B at 120 V rated value	160 A
operational current — at DC-21 B at 240 V rated value	160 A
operational current — at DC-21 B at 440 V rated value	160 A
operational current — at DC-22 B at 120 V rated value	160 A
operational current — at DC-22 B at 240 V rated value	160 A
operational current — at DC-22 B at 440 V rated value	125 A
operational current — at DC-23 B at 120 V rated value	100 A
operational current — at DC-23 B at 240 V rated value	100 A
operational current — at DC-23 B at 440 V rated value	63 A
let-through current with high-speed activation maximum	15 kA
operating voltage — at AC rated value minimum	24 V
operating voltage — at AC rated value maximum	690 V
operating voltage — at DC rated value	240 V
operating voltage — at DC rated value minimum	24 V
operating voltage — at DC rated value maximum	250 V

Protection class

protection class IP — with closed switch with cover or cable lug cover	IP40
protection class IP — with closed switch without cover or cable lug cover	IP30
protection class IP — open	IP20

Dissipation

power loss [W] — with conventional rated thermal current without fuse per pole	5 W
power loss [W] — with conventional rated thermal current without fuse per device	15 W
power loss [W] — for rated value of the current at AC in hot operating state per pole	5.7 W
power loss [W] — of the fuse per fuse maximum	12 W

Main circuit

operational current — rated value	160 A
operational current — with capacitive load at 400 V rated value	72 A
operational current — with capacitive load at 500 V rated value	55 A

Auxiliary circuit

number of CO contacts for auxiliary contacts	0
number of NC contacts for auxiliary contacts	0
number of NO contacts for auxiliary contacts	0

Suitability

suitability for use main switch	No
suitability for use switch disconnector	Yes
suitability for use EMERGENCY OFF switch	No
suitability for use maintenance/repair switch	Yes

Product details

product function phase failure monitoring	No
product component — undervoltage release	No
product component — undervoltage release with leading contact	No
product feature sealable	Yes
product extension auxiliary switch	Yes
product extension optional locking capability	Yes
product extension optional phase failure monitoring	Yes
product extension optional voltage trigger	No
product extension optional overvoltage protection monitoring	Yes

Product function

product function overvoltage protection monitoring

Short circuit

conditional short-circuit current (Iq) — at AC at 240 V with high-speed activation rated value	80 kA
conditional short-circuit current (Iq) — at AC at 500 V with high-speed activation rated value	80 kA
conditional short-circuit current (Iq) — at AC at 690 V with high-speed activation rated value	50 kA
conditional short-circuit current (Iq) — with closed switch at AC at 240 V rated value	120 kA
conditional short-circuit current (Iq) — with closed switch at AC at 500 V rated value	120 kA
conditional short-circuit current (Iq) — with closed switch at AC at 690 V rated value	100 kA

Connections

arrangement of electrical connectors for main current circuit	other
connectable conductor cross-section for main contacts — solid or stranded minimum	2.5 mm²
connectable conductor cross-section for main contacts — solid or stranded maximum	95 mm²
connectable conductor cross-section for main contacts — stranded minimum	2.5 mm²
connectable conductor cross-section for main contacts — stranded maximum	95 mm²
tightening torque with screw-type terminals — minimum	10 N·m
tightening torque with screw-type terminals — maximum	12 N·m
type of connectable conductor cross-sections of the laminated conductors maximum	24 x 12 mm
type of connection technology	Flat terminal

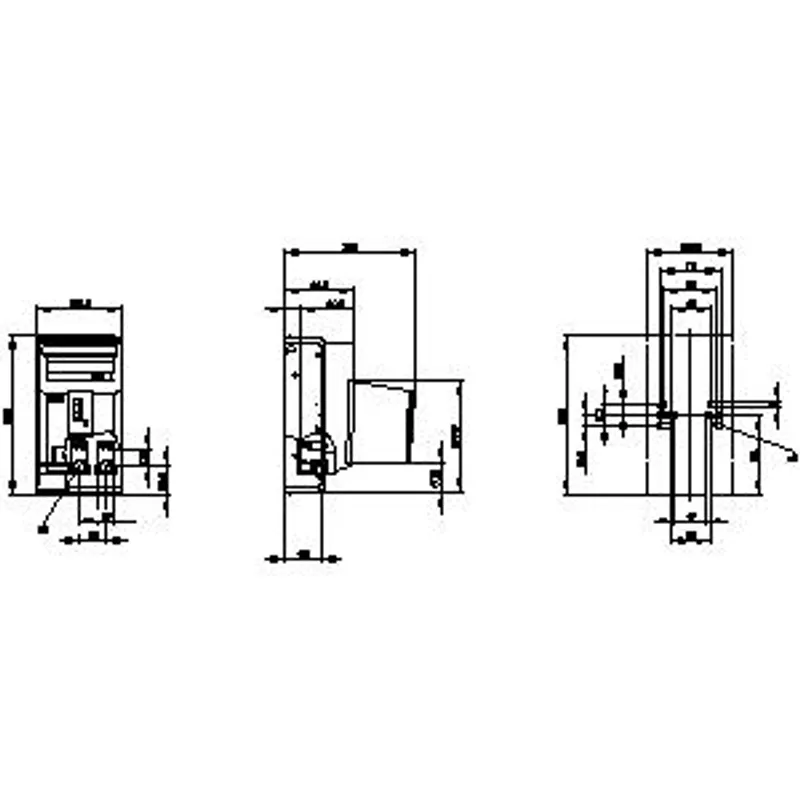

Mechanical Design

height	202 mm
width	105.8 mm
depth	165.5 mm
fastening method	mounting plate
fastening method — floor mounting	Yes
fastening method — rail mounting	No
mounting position	horizontal/vertical
Net Weight	1.366 kg

Environmental conditions

ambient temperature during operation — minimum	-25 °C
ambient temperature during operation — maximum	55 °C
ambient temperature during storage — minimum	-50 °C
ambient temperature during storage — maximum	80 °C

Certificates

reference code according to IEC 81346-2
