AT2xxx, ATH2xxx | XTS motor modules Parts
Compare AT2xxx, ATH2xxx | XTS motor modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Magnet pitch | Motor length | Length | Height | Weight |
|---|---|---|---|---|---|
| ATH2020 | ≥ 60 mm | 250 mm | 258 mm | 115 mm | 4.6 kg |

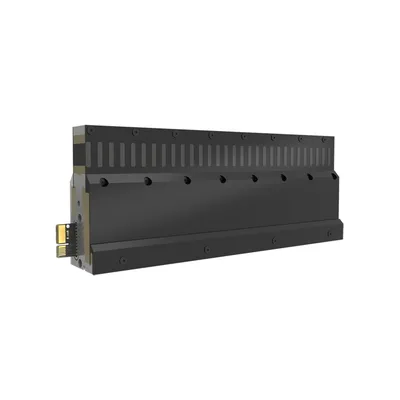

| AT2000 | ≥ 50 mm | 233 mm/250 mm | 233/250 mm | 96 mm | 1.9/2 kg |

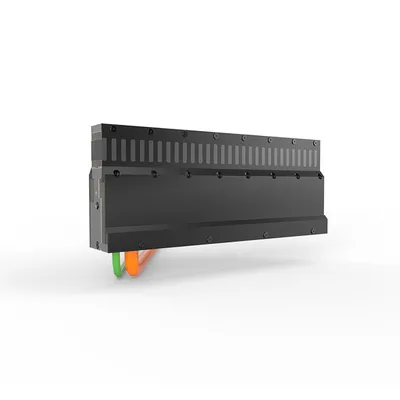

| AT2001 | ≥ 50 mm | 250 mm | 250 mm | 96 mm | 3.1 kg |

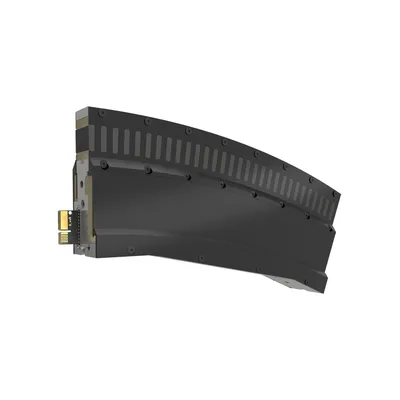

| AT2020 | ≥ 50 mm | 250 mm | 256.2 mm | 106.8 mm | 2.2 kg |

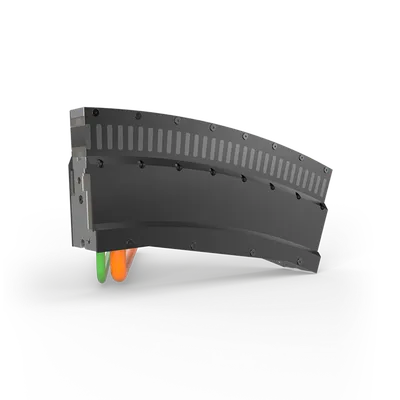

| AT2021 | ≥ 50 mm | 250 mm | 256.2 mm | 106.8 mm | 3.3 kg |
| AT2025 | ≥ 50 mm | 250 mm | 278.1 mm | 107.8 mm | 2.2 kg |
| AT2026 | ≥ 50 mm | 250 mm | 278.1 mm | 107.8 mm | 3.3 kg |

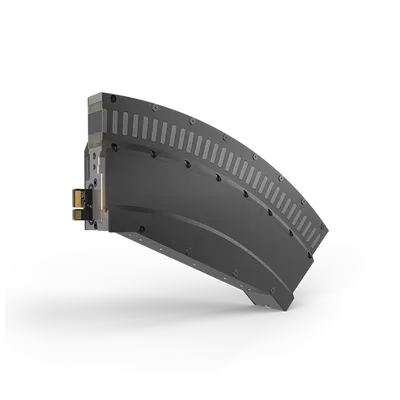

| AT2040 | ≥ 50 mm | 250 mm | 258.9 mm | 114.4 mm | 1.9 kg |

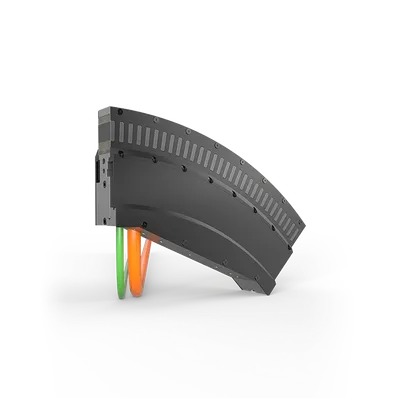

| AT2041 | ≥ 50 mm | 250 mm | 258.9 mm | 114.4 mm | 3.0 kg |

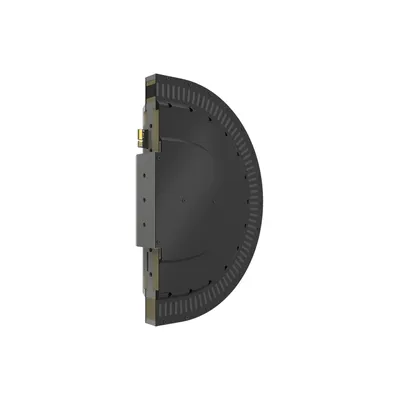

| AT2050 | ≥ 50 mm | 500 mm | 306.7 mm | 194.5 mm | 4.1 kg |

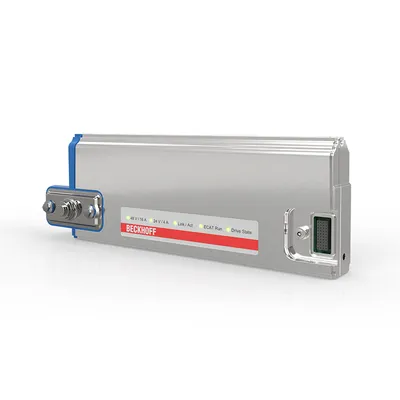

| ATH2000 | ≥ 60 mm | 250 mm | 250 mm | 96 mm | 4.7 kg |

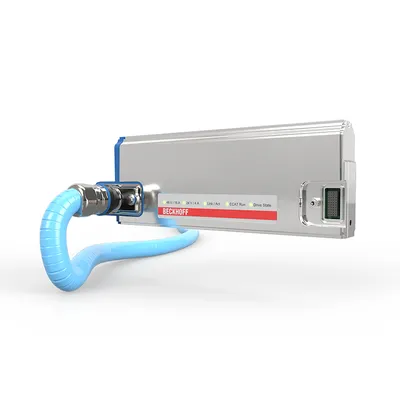

| ATH2001 | ≥ 60 mm | 250 mm | 250 mm | 96 mm | 4.7 kg |

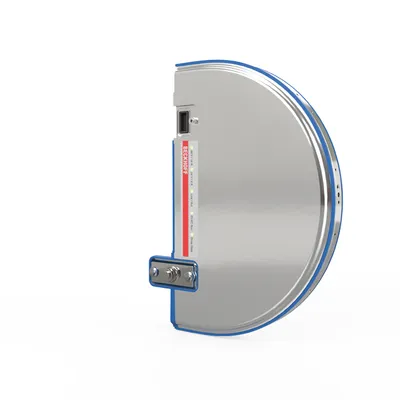

| ATH2050 | ≥ 60 mm | 500 mm | 315 mm | 200 mm | 9.6 kg |

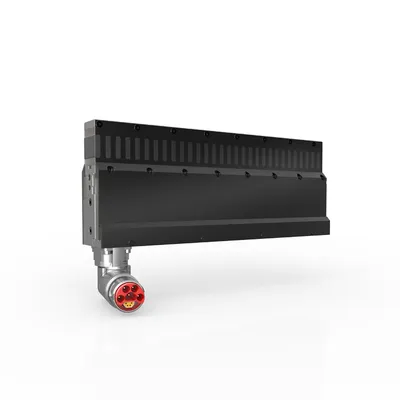

| AT2002 | ≥ 50 mm | 249 mm/250 mm | 249/250 mm | 96 mm | 2.2/2.3 kg |

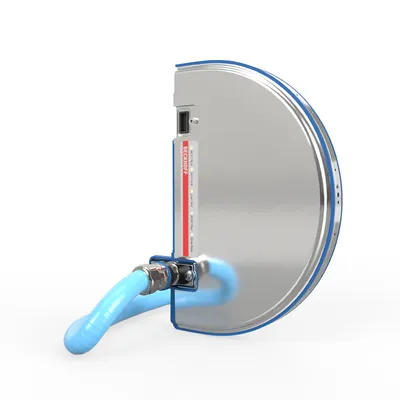

| ATH2051 | ≥ 60 mm | 500 mm | 315 mm | 200 mm | 9.6 kg |

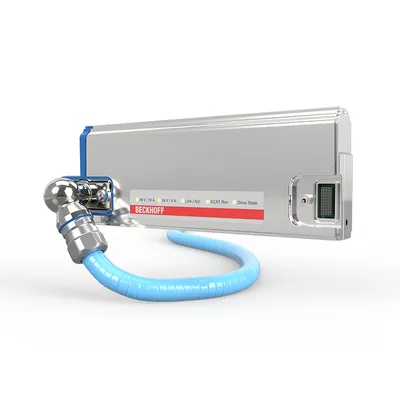

| ATH2002 | ≥ 60 mm | 250 mm | 250 mm | 96 mm | 4.7 kg |

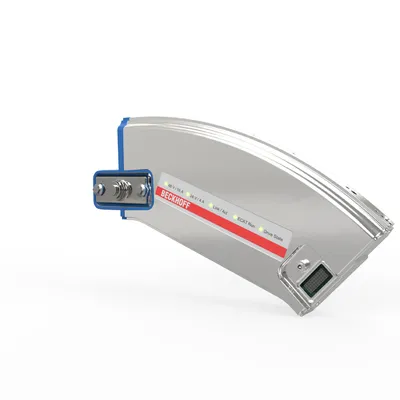

| ATH2040 | ≥ 60 mm | 250 mm | 258 mm | 115 mm | 4.6 kg |

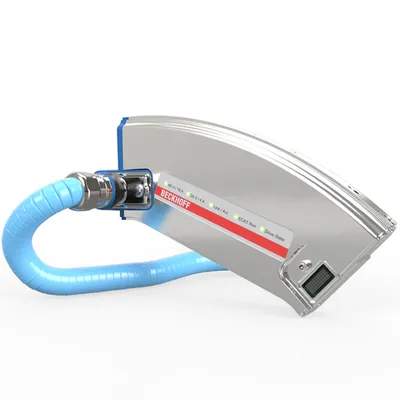

| ATH2041 | ≥ 60 mm | 250 mm | 258 mm | 115 mm | 4.6 kg |

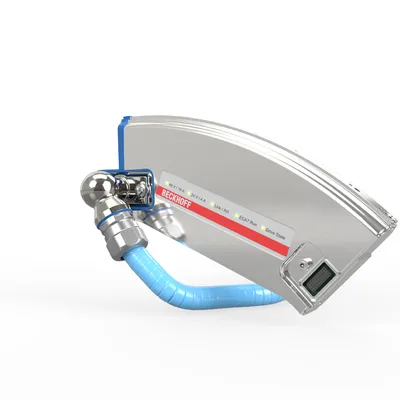

| ATH2042 | ≥ 60 mm | 250 mm | 258 mm | 115 mm | 4.6 kg |
| ZXH9999-0021 | — | — | — | — | — |

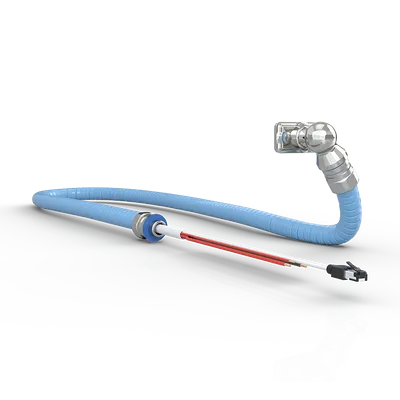

| ZXH9999-0022 | — | — | — | — | — |
