Beckhoff ATH2050

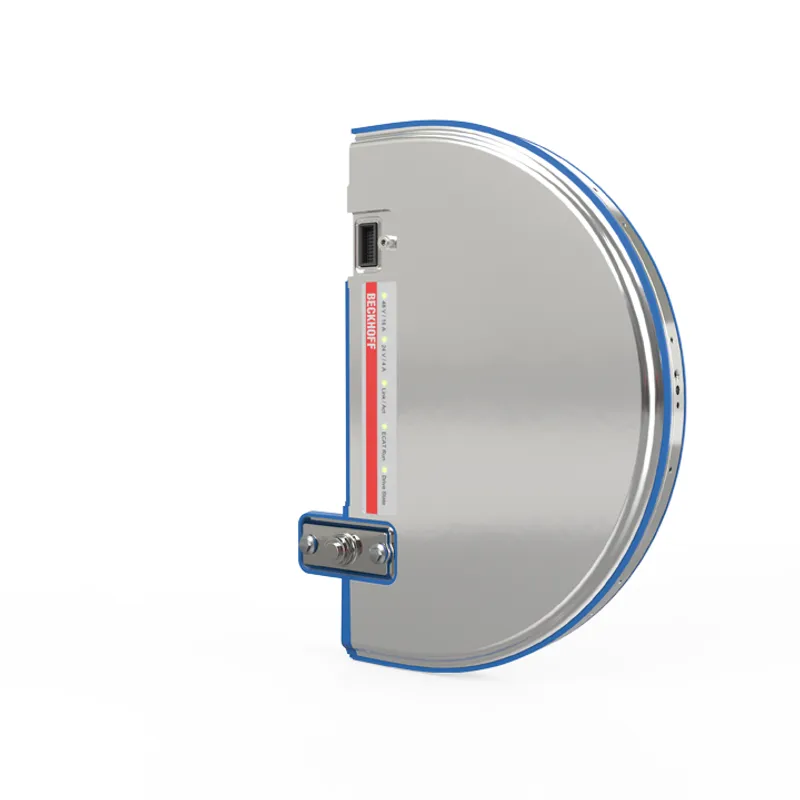

Motor module, 180° curved segment, without infeed

MPN: ATH2050
Category: AT2xxx, ATH2xxx | XTS motor modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ATH2050?

The motor modules with the product designation ATH205x are elements for the construction of curved XTS track sections for demanding environmental conditions. They represent a 180° curve segment (outside curve) with a clothoid-shaped geometry. Via lateral

Specifications

Magnet pitch	≥ 60 mm
Geometries	rectangle, square, circle or straight
Diameter	180° curved segment: 267 mm (clothoid), 45° curved segment: 637 mm (1)
Alignment	horizontally, vertically or at any angle from 1…179°
Peak force	ATH9001-x550 (5-pin): 90 N (specification refer to straight sections)
Continuous force	ATH9001-x550 (5-pin): 30 N (specification refers to straight sections)
Max. speed	4 m/s
Max. acceleration	10 g
Payload	up to 4 kg, higher loads with reduced dynamics
Cycle time	250 µs
Absolute accuracy	±0.25 mm within a straight module
Repeatability	±0.01 mm (standstill unidirectional)
Positioning accuracy	±0.15 mm @ 1.5 m/s within a straight module
System size	> 100 m, > 200 movers
Protection rating	IP69K (in assembled condition for a closed system)
Approvals/markings	CE, UL
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Motor type	long stator linear motor segment
Design form	curved segment, 180° (positive curve, clothoid)
Motor length	500 mm
Connection method	cover between the motor modules (daisy chaining)
Material	housing: stainless steel 1.4404 AISI 316L; sealing: VMQ silicone
Length per feed	max. 3 m (voltage supply, EtherCAT)
Cooling	convection
Ambient temperature (operation)	0…40°C
Rated power	768 W
Operating voltage	48 V DC
Rated current	16 A
Peak current	48 A
Control voltage	24 V DC -15/+20%
Power consumption control voltage	30 W per meter travel distance
Length	315 mm
Width	34 mm
Height	200 mm
Weight	9.6 kg
