Beckhoff ATH2000

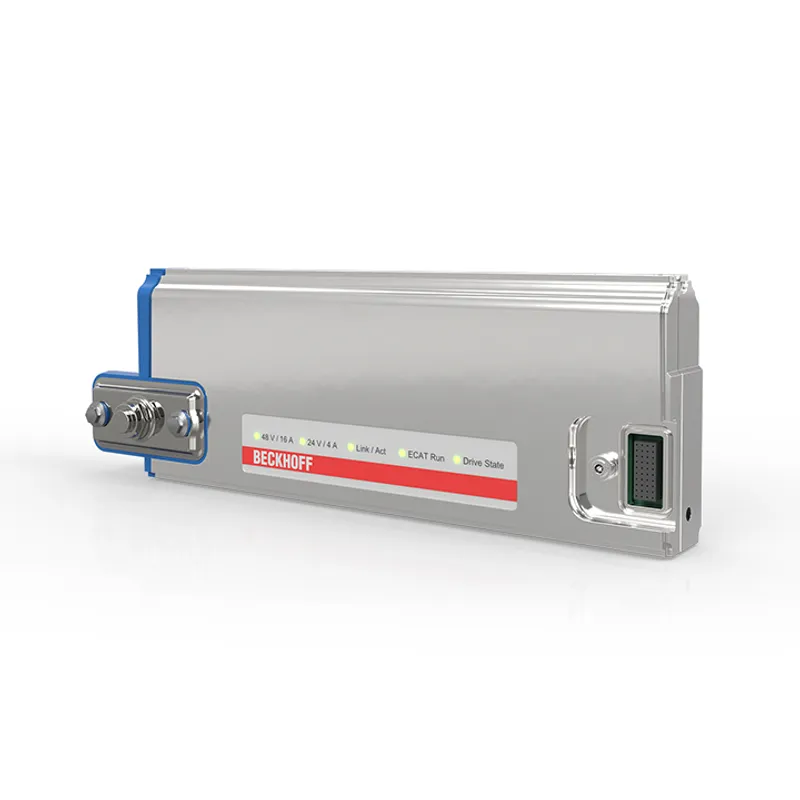

Motor module, straight, without infeed
- MPN
- ATH2000
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff ATH2000?
The motor modules with the product designation ATH200x are elements for the construction of straight XTS track sections for demanding environmental conditions. Via lateral plug-in contacts for the transmission of power and communication, a connection
Specifications
Specifications
| Magnet pitch | ≥ 60 mm |
| Geometries | rectangle, square, circle or straight |
| Diameter | 180° curved segment: 267 mm (clothoid), 45° curved segment: 637 mm (1) |
| Alignment | horizontally, vertically or at any angle from 1…179° |
| Peak force | ATH9001-x550 (5-pin): 90 N (specification refer to straight sections) |
| Continuous force | ATH9001-x550 (5-pin): 30 N (specification refers to straight sections) |
| Max. speed | 4 m/s |
| Max. acceleration | 10 g |
| Payload | up to 4 kg, higher loads with reduced dynamics |
| Cycle time | 250 µs |
| Absolute accuracy | ±0.25 mm within a straight module |
| Repeatability | ±0.01 mm (standstill unidirectional) |
| Positioning accuracy | ±0.15 mm @ 1.5 m/s within a straight module |
| System size | > 100 m, > 200 movers |
| Protection rating | IP69K (in assembled condition for a closed system) |
| Approvals/markings | CE, UL |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Motor type | long stator linear motor segment |
| Design form | straight |
| Motor length | 250 mm |
| Connection method | cover between the motor modules (daisy chaining) |
| Material | housing: stainless steel 1.4404 AISI 316L; sealing: VMQ silicone |
| Length per feed | max. 3 m (voltage supply, EtherCAT) |
| Cooling | convection |
| Ambient temperature (operation) | 0…40°C |
| Rated power | 768 W |
| Operating voltage | 48 V DC |
| Rated current | 16 A |
| Peak current | 48 A |
| Control voltage | 24 V DC -15/+20% |
| Power consumption control voltage | 30 W per meter travel distance |
| Length | 250 mm |
| Width | 34 mm |
| Height | 96 mm |
| Weight | 4.7 kg |
ATH2000: frequently asked questions
When can ATH2000 be shipped?
ATH2000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ATH2000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ATH2000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATH2000, subject to availability and destination.
