EtherCAT and fieldbus connectors Parts

Beckhoff

ZS7000-0012

Plug, field assembly, shielded

Beckhoff

ZS7000-0014

Socket, field assembly, shielded

Beckhoff

ZS1090-1017

Socket, field assembly, shielded

Beckhoff

ZS1090-1016

Plug, field assembly, shielded

Beckhoff

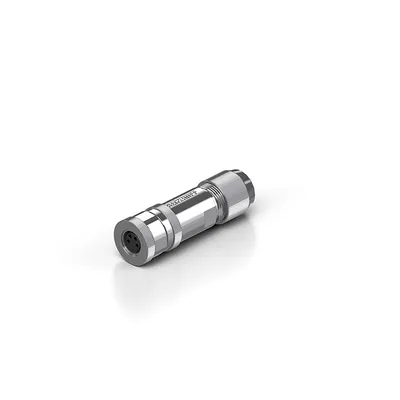

ZS1090-1007

M8 socket field assembly, Ethernet/EtherCAT, IP67, shielded

Beckhoff

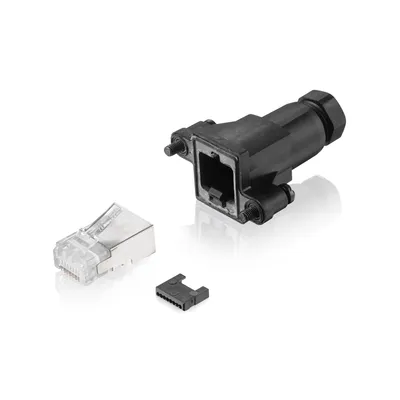

ZS1090-0002

RJ45 plug field assembly, IP67

Beckhoff

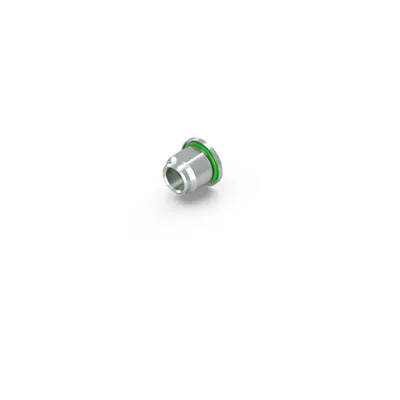

ZS7002-2003

M8 housing for ZS7002-0003, 6.0 mm, without counter nut, shielded

Beckhoff

ZS7000-0001

M8 plug field assembly, IP65/67, crimp, shielded

Beckhoff

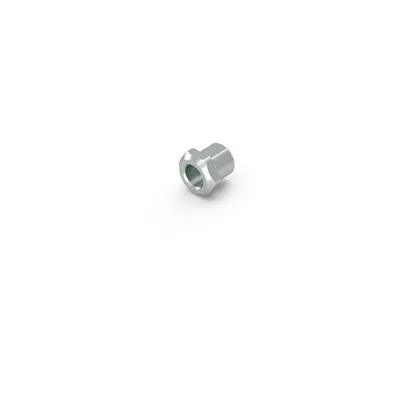

ZS7002-2008

M8 housing for ZS7002-0008, 13.0 mm, without counter nut, shielded

Beckhoff

ZS7002-2001

Counter nut, M10

Beckhoff

ZS1090-0003

RJ45 plug field assembly, IP20, shielded

Beckhoff

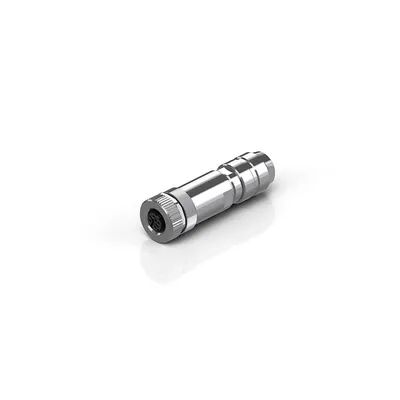

ZS1090-0010

M12 socket field assembly, Ethernet/EtherCAT, IP67, shielded

Beckhoff

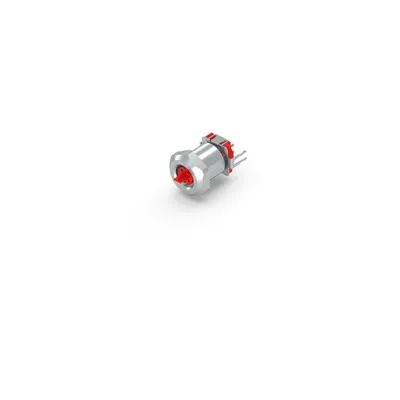

ZS7002-0008

Flange rear assembly, EtherCAT P, print contact, 13.0 mm, with counter nut, 2-pieces: separate contact carrier and housing, shielded

Beckhoff

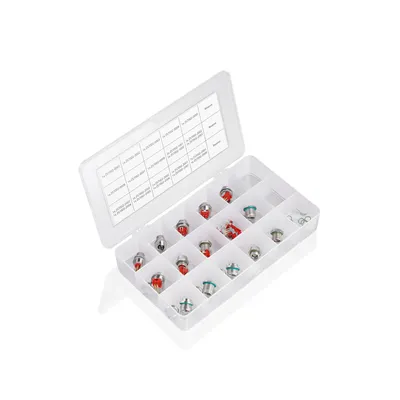

ZS7002-9990

EtherCAT P M8 flange sample box

Beckhoff

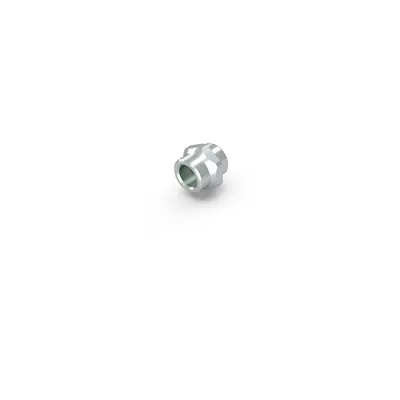

ZS7002-2007

M8 housing for ZS7002-0007, 9.0 mm, without counter nut, shielded

Beckhoff

ZS7002-0002

Flange rear assembly, EtherCAT P, print contact, 6.0 mm, with counter nut, 1-piece: contact carrier glued into housing, shielded

Beckhoff

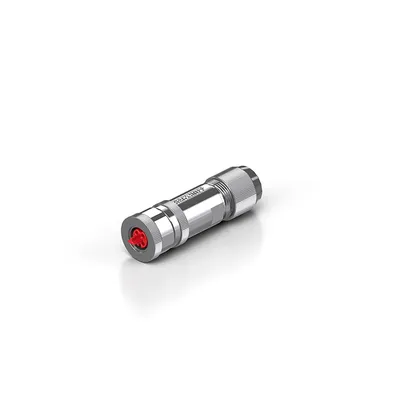

ZS7000-0004

M8 socket field assembly, IP65/67, screw, shielded

Beckhoff

ZS7002-0004

Flange rear assembly, EtherCAT P, print contact, 10.0 mm, with counter nut, 2-pieces: separate contact carrier and housing, shielded

Beckhoff

ZS7002-1001

EtherCAT P contact carrier, IP67, for ZS7002-0003, ZS7002-0004, ZS7002-0007 and ZS7002-0008

Beckhoff

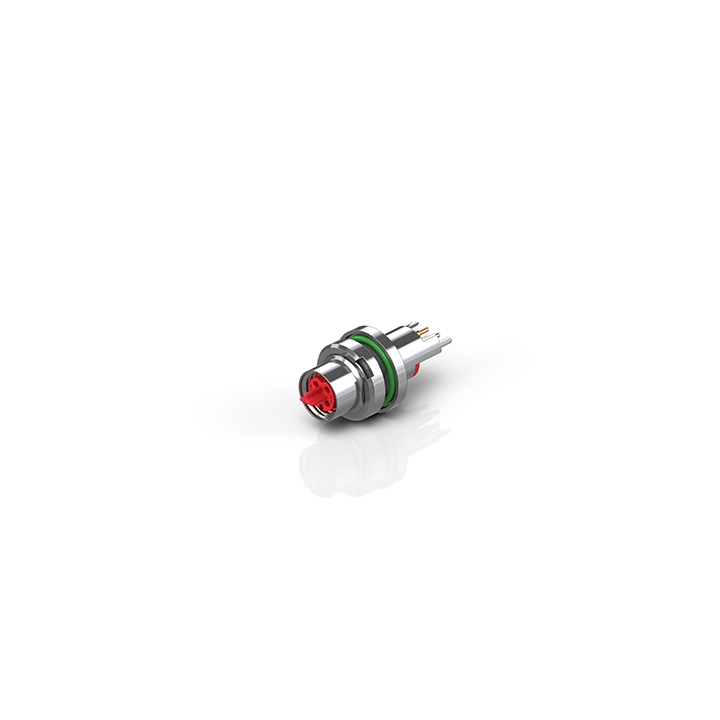

ZS7002-0001

Flange rear assembly, EtherCAT P, print contact, 12.5 mm, with counter nut, 2-pieces: separate contact carrier and housing, shielded

Beckhoff

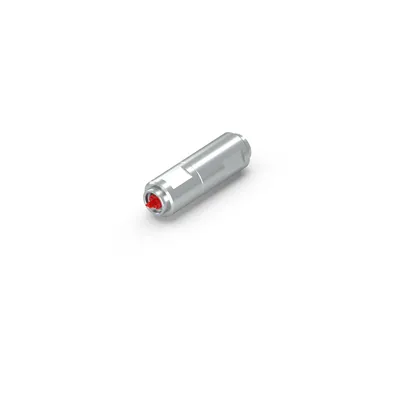

ZS7000-0005

M8 EtherCAT P/EtherCAT interface, IP67, P-coded input, EtherCAT A-coded output, cable adapter passive, shielded

Beckhoff

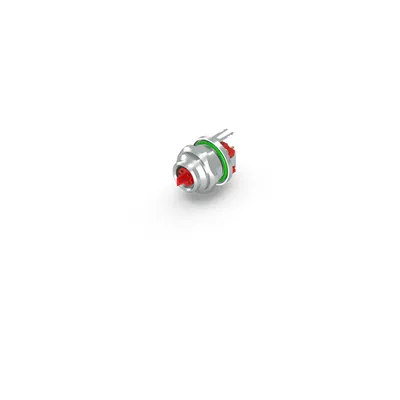

ZS7002-0003

Flange rear assembly, EtherCAT P, print contact, 6.0 mm, with counter nut, 2-pieces: separate contact carrier and housing, shielded

Beckhoff

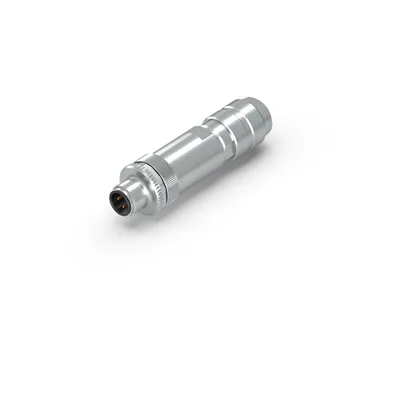

ZS1090-0004

M12 plug field assembly, IP67, shielded

Beckhoff

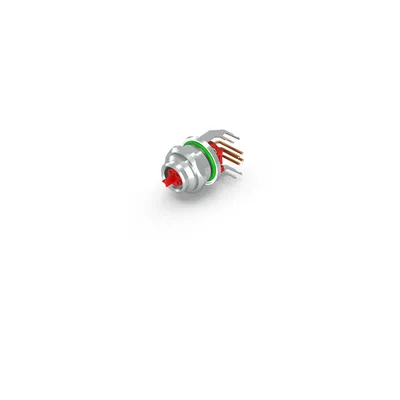

ZS7002-0005

Flange rear assembly, EtherCAT P, print contact, 8.2 mm, with counter nut, 2-pieces: separate contact carrier and housing, shielded

Compare EtherCAT and fieldbus connectors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Installation size	Connector type	Coding	Mating cycles	A1
ZS7000-0012	M8	plug	EtherCAT P-coded	≥ 100	38.5 mm
ZS7000-0014	M8	plug	EtherCAT P-coded	≥ 100	~34.5 mm
ZS1090-1017	M8	socket	A‑coded	≥ 100	~34.5 mm
ZS1090-1016	M8	plug	A‑coded	≥ 100	~38.5 mm
ZS1090-1007	M8	socket	A‑coded	≥ 100	40.00 mm
ZS1090-0002	RJ45	plug	—	—	55.0 mm
ZS7002-2003	M8	flange housing	—	—	—
ZS7000-0001	M8	plug	EtherCAT P-coded	≥ 100	47.00 mm
ZS7002-2008	M8	flange housing	—	—	—
ZS7002-2001	M10	counter nut	—	—	—
ZS1090-0003	RJ45	plug	—	≥ 750	approx. 55.00 mm
ZS1090-0010	M12	socket	D‑coded	≥ 100	43.00 mm
ZS7002-0008	M8	flange rear assembly	EtherCAT P-coded	≥ 100	17.00 mm
ZS7002-9990	M8	sample box	EtherCAT P-coded	—	—
ZS7002-2007	M8	flange housing	—	—	—
ZS7002-0002	M8	flange rear assembly	EtherCAT P-coded	≥ 100	20.00 mm
ZS7000-0004	M8	socket	EtherCAT P-coded	≥ 100	47.00 mm
ZS7002-0004	M8	flange rear assembly	EtherCAT P-coded	≥ 100	17.00 mm
ZS7002-1001	M8	EtherCAT P contact carrier	EtherCAT P-coded	≥ 100	16.30 mm
ZS7002-0001	M8	flange rear assembly	EtherCAT P-coded	≥ 100	26.00 mm
ZS7000-0005	M8	socket	EtherCAT P-coded	≥ 100	48.00 mm
ZS7002-0003	M8	flange rear assembly	EtherCAT P-coded	≥ 100	17.00 mm
ZS1090-0004	M12	plug	D‑coded	≥ 100 (according to IEC 60512-9a)	49.00 mm
ZS7002-0005	M8	flange rear assembly	EtherCAT P-coded	≥ 100	21.00 mm
