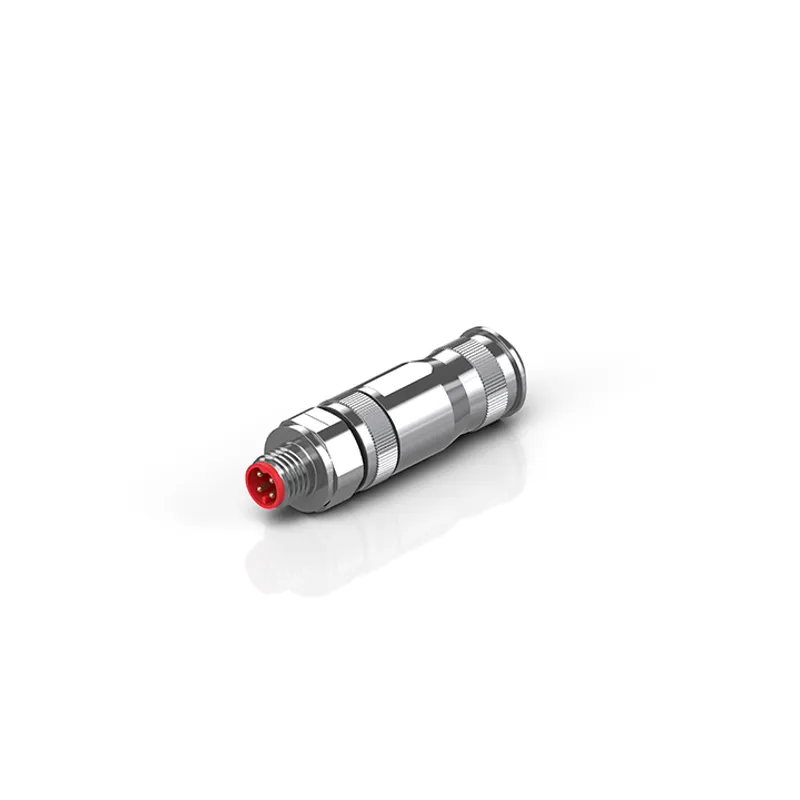

Beckhoff ZS7000-0001

M8 plug field assembly, IP65/67, crimp, shielded

MPN: ZS7000-0001
Category: EtherCAT and fieldbus connectors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ZS7000-0001?

M8 plug field assembly for EtherCAT P

Specifications

Shielding	yes
Installation size	M8
Connector type	plug
Contact type	male
Number of positions (face)	4-pin
Coding	EtherCAT P-coded
Rated current	3 A at 40°C (according to IEC 61076-2-104)
Rated voltage	24 V DC (according to IEC 61076-2-104)
Recommended torque, nut	0.4 Nm
Mating cycles	≥ 100
Wire termination	crimp connection
Max. wire cross-section	AWG22 (0.34 mm²)
Max. cable outer diameter	4.9…6.5 mm
Material	metal
A1	47.00 mm
A2	14.00 mm
