EtherCAT and fieldbus connectors Parts

Beckhoff

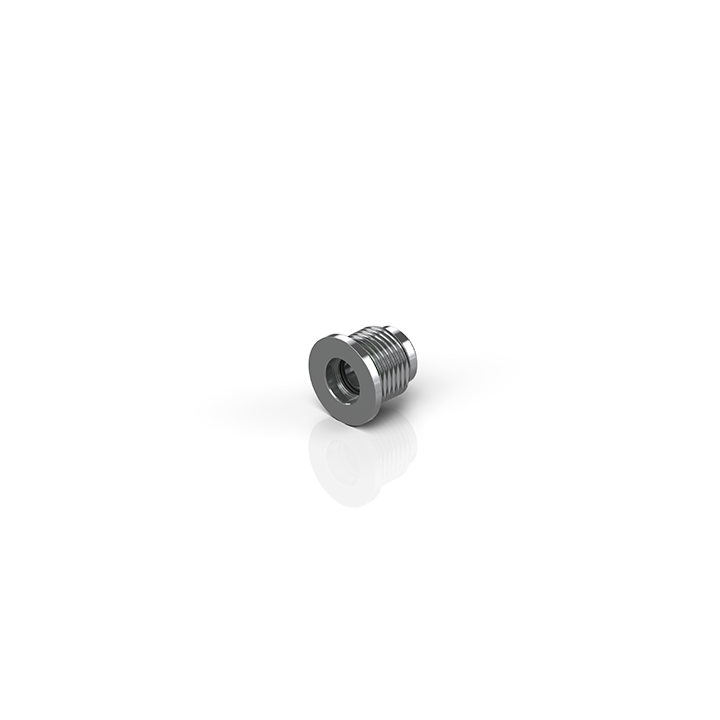

ZS7002-2005

M8 housing for ZS7002-0005, 8.2 mm, without counter nut, shielded

Beckhoff

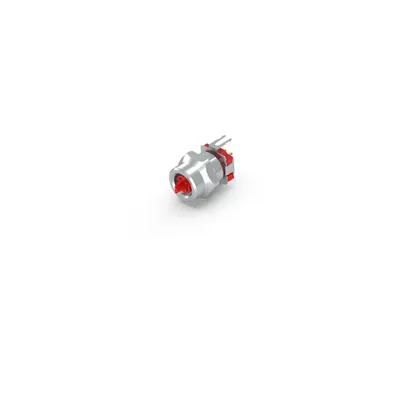

ZS7002-0007

Flange rear assembly, EtherCAT P, print contact, 9.0 mm, with counter nut, 2-pieces: separate contact carrier and housing, shielded

Beckhoff

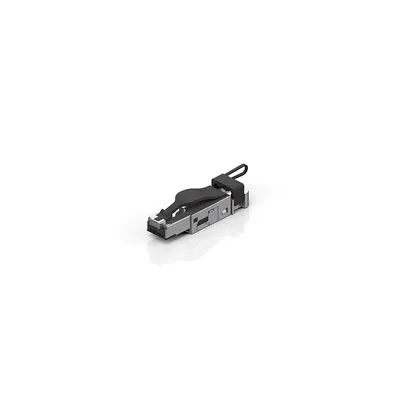

ZS1090-0005

RJ45 plug field assembly, IP20, shielded

Beckhoff

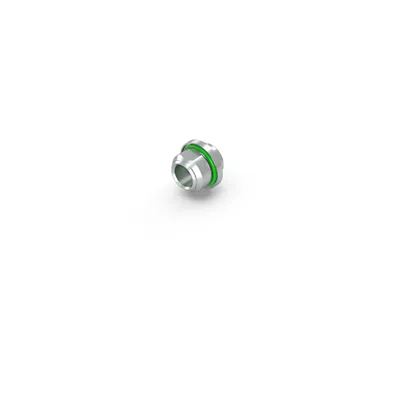

ZS7002-2004

M8 housing for ZS7002-0004, 10.0 mm, without counter nut, shielded

Beckhoff

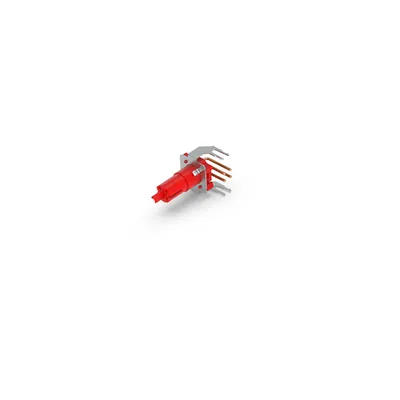

ZS7002-1002

EtherCAT P contact carrier, IP67, for ZS7002-0005 and ZS7002-0006

Beckhoff

ZS7002-2002

Counter nut, M12

Beckhoff

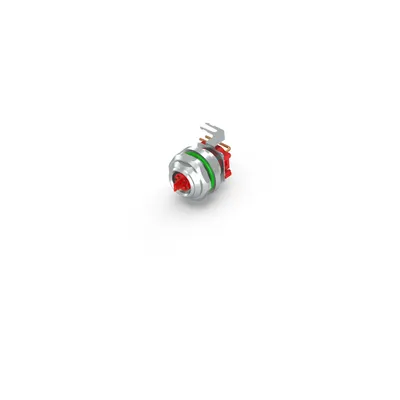

ZS7002-0006

Flange rear assembly, EtherCAT P, print contact, 12.2 mm, with counter nut, 2-pieces: separate contact carrier and housing, shielded

Beckhoff

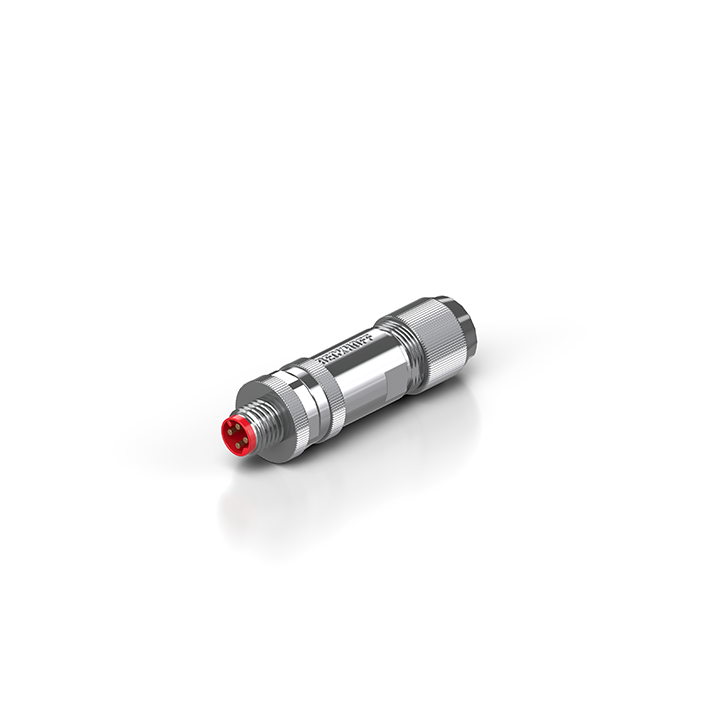

ZS7000-0002

M8 plug field assembly, IP65/67, screw, shielded

Beckhoff

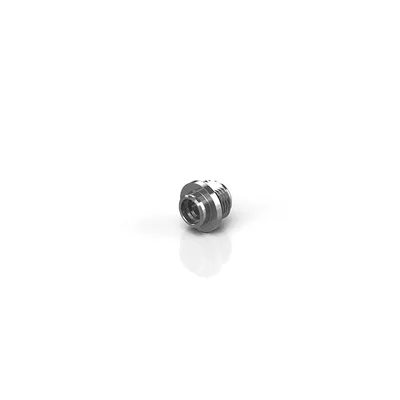

ZS7002-2006

M8 housing for ZS7002-0006, 12.2 mm, without counter nut, shielded

Beckhoff

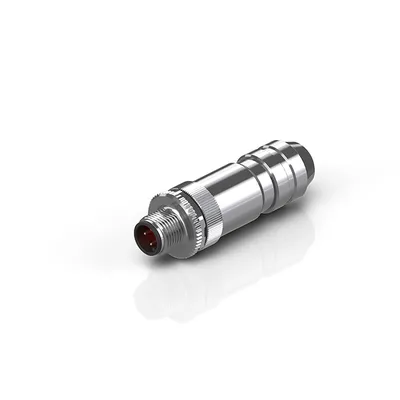

ZS1000-0610

Plug field assembly for PROFIBUS, Modbus, RS485, shielded

Beckhoff

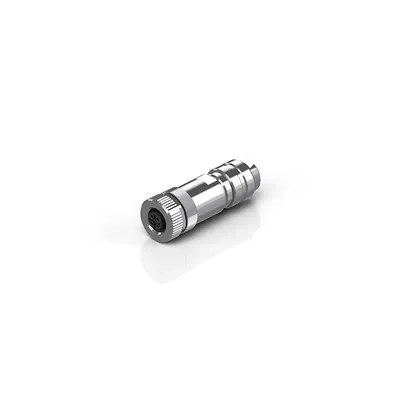

ZS1000-0620

Socket field assembly for PROFIBUS, Modbus, RS485, shielded

Beckhoff

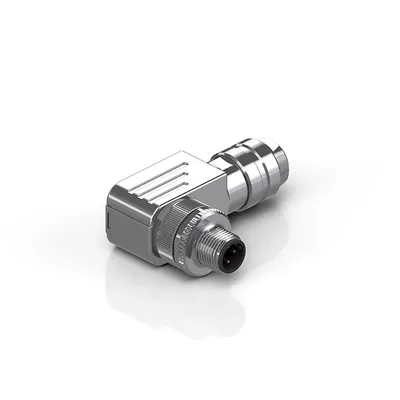

ZS1000-0630

Plug field assembly PROFIBUS, Modbus, RS485, shielded

Beckhoff

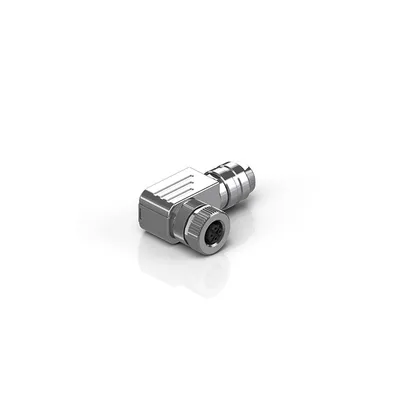

ZS1000-0640

Socket field assembly for PROFIBUS, Modbus, RS485, shielded

Beckhoff

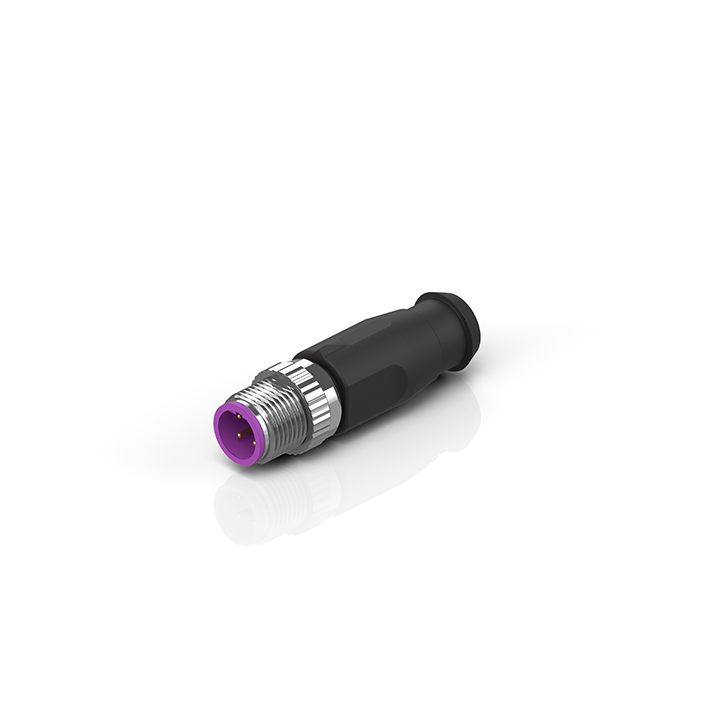

ZS1000-1610

Plug termination resistor for PROFIBUS, Modbus, RS485, shielded

Beckhoff

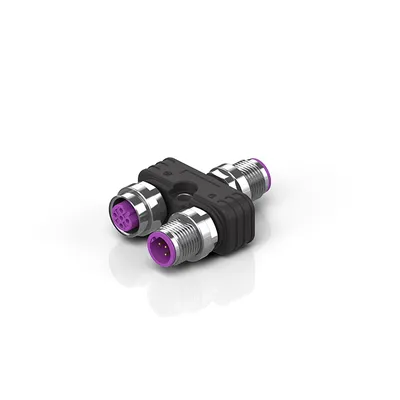

ZS1000-2600

Plug Y splitter for PROFIBUS, Modbus, RS485, IP67, shielded

Beckhoff

ZS1090-0013

RJ45 plug field assembly, IP20, shielded

Beckhoff

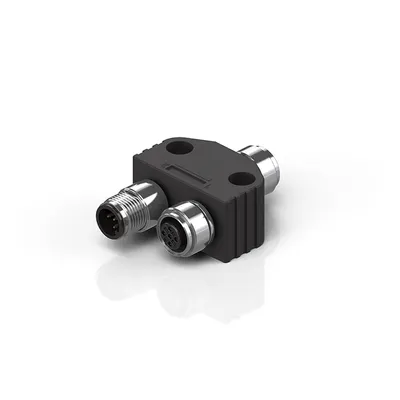

ZS1052-2600

Plug Y splitter CANopen/DeviceNet®, IP67

Beckhoff

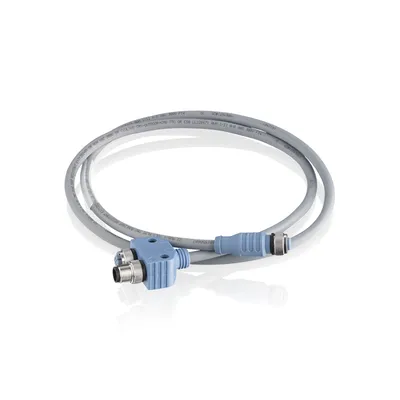

ZS1052-2602

Y-connector with stub CANopen/DeviceNet®, IP67

Beckhoff

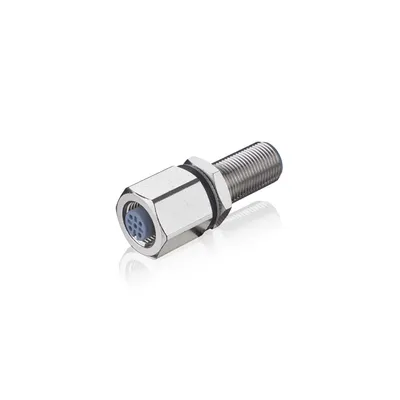

ZS1052-6610

Plug control cabinet feed-through CANopen/DeviceNet®, IP67

Beckhoff

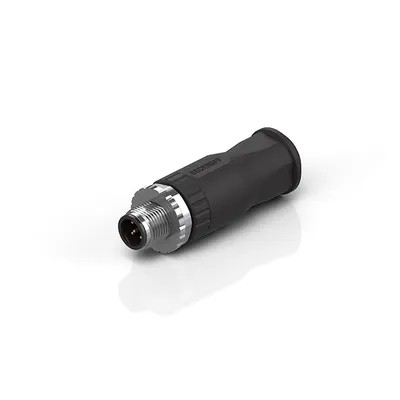

ZS1052-0610

Plug CANopen/DeviceNet®, IP67

Beckhoff

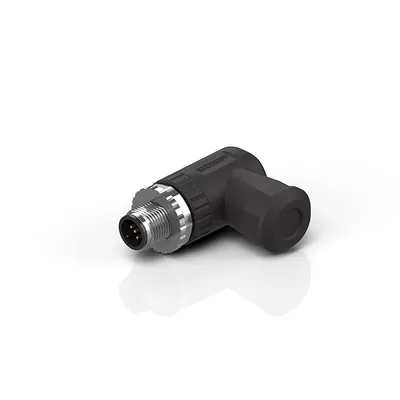

ZS1052-0630

Plug CANopen/DeviceNet®, IP67

Beckhoff

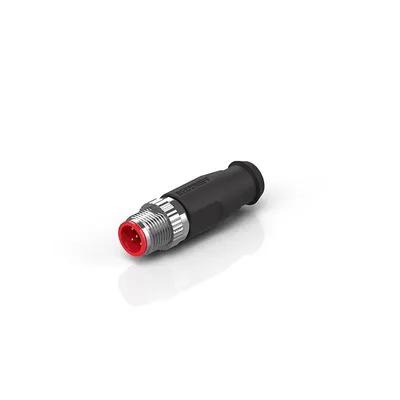

ZS1052-1610

Plug termination resistor CANopen/DeviceNet®, IP67

Beckhoff

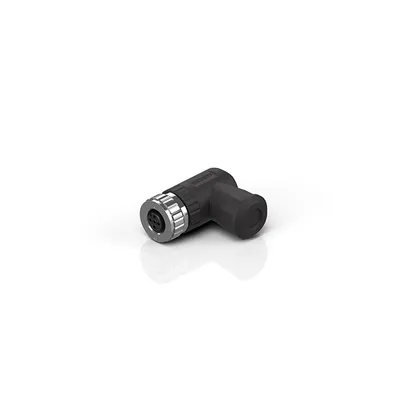

ZS1052-0640

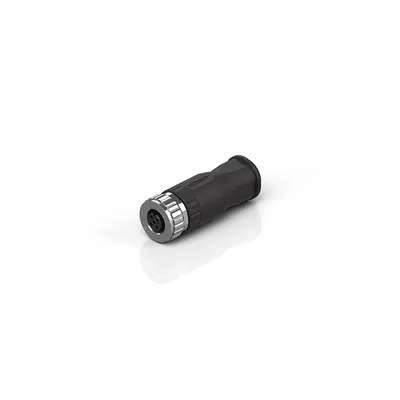

Socket CANopen/DeviceNet®, IP67

Beckhoff

ZS1052-0620

Socket CANopen/DeviceNet®, IP67

Compare EtherCAT and fieldbus connectors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Installation size	Connector type	Rated voltage	Contact type	Number of positions (face)
ZS7002-2005	M8	flange housing	24 V DC (according to IEC 61076-2-104)	—	—
ZS7002-0007	M8	flange rear assembly	24 V DC (according to IEC 61076-2-104)	female	4-pin
ZS1090-0005	RJ45	plug	—	male	8-pin
ZS7002-2004	M8	flange housing	24 V DC (according to IEC 61076-2-104)	—	—
ZS7002-1002	M8	EtherCAT P contact carrier	24 V DC (according to IEC 61076-2-104)	female	4-pin
ZS7002-2002	M12	counter nut	—	—	—
ZS7002-0006	M8	flange rear assembly	24 V DC (according to IEC 61076-2-104)	female	4-pin
ZS7000-0002	M8	plug	24 V DC (according to IEC 61076-2-104)	male	4-pin
ZS7002-2006	M8	flange housing	24 V DC (according to IEC 61076-2-104)	—	—
ZS1000-0610	M12	plug	125 V	male	5-pin
ZS1000-0620	M12	socket	60 V	female	5-pin
ZS1000-0630	M12	plug	60 V	male	5-pin
ZS1000-0640	M12	socket	125 V	female	5-pin
ZS1000-1610	M12	plug	160 V (according to IEC 61076-2-101)	male	4-pin
ZS1000-2600	M12	Y splitter	250 V	male+female	5-pin
ZS1090-0013	RJ45	plug	—	male	8-pin
ZS1052-2600	M12	Y splitter	60 V (according to IEC 61076-2-101)	male+female	5-pin
ZS1052-2602	—	—	—	—	—
ZS1052-6610	M12	wall/panel feed-through	150 V	male+female	5-pin
ZS1052-0610	M12	plug	60 V (according to IEC 61076-2-101)	male	5-pin
ZS1052-0630	M12	plug	60 V (according to IEC 61076-2-101)	male	5-pin
ZS1052-1610	M12	plug	60 V (according to IEC 61076-2-101)	male	5-pin
ZS1052-0640	M12	socket	60 V (according to IEC 61076-2-101)	female	5-pin
ZS1052-0620	M12	socket	60 V (according to IEC 61076-2-101)	female	5-pin
