Schneider Electric

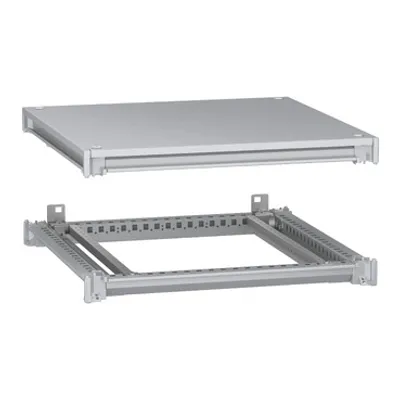

NSYSFNC66Bottom and top frame, PanelSeT SFN, for electrical enclosure W600 D600mm, roof included
PanelSeT SFN Parts
Schneider Electric

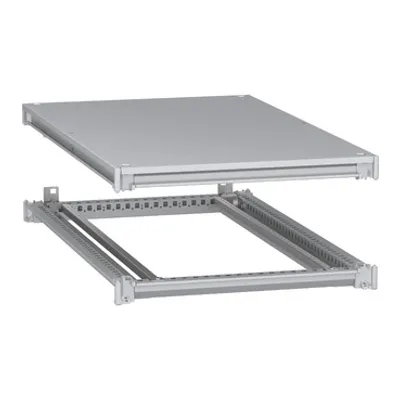

NSYSFNC610Bottom and top frame, PanelSeT SFN, for electrical enclosure W600 D1000mm, roof included
Schneider Electric

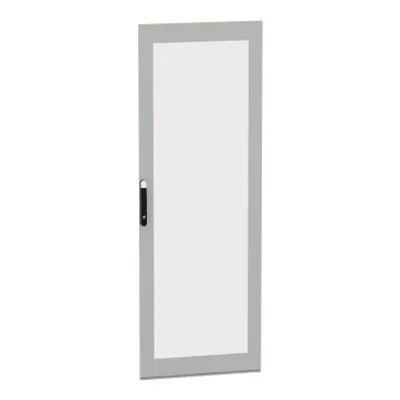

NSYSFND228TGlazed door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2200 W800mm
Schneider Electric

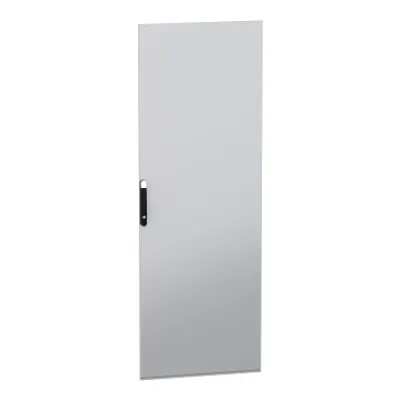

NSYSFND228Plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2200 W800mm
Schneider Electric

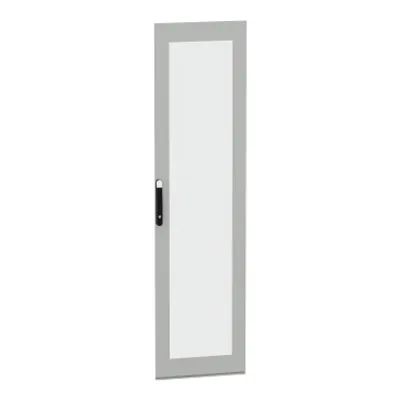

NSYSFND226TGlazed door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2200 W600mm
Schneider Electric

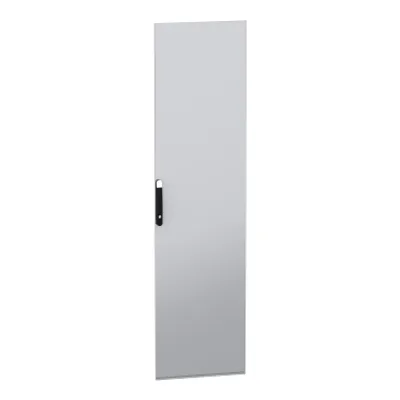

NSYSFND226Plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2200 W600mm
Schneider Electric

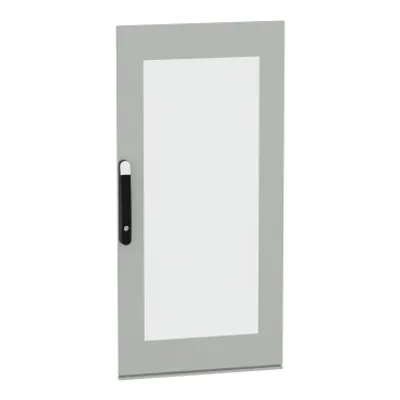

NSYSFND126TGlazed door, PanelSeT SFN, for electrical enclosure H1200 W600mm, RAL7035
Schneider Electric

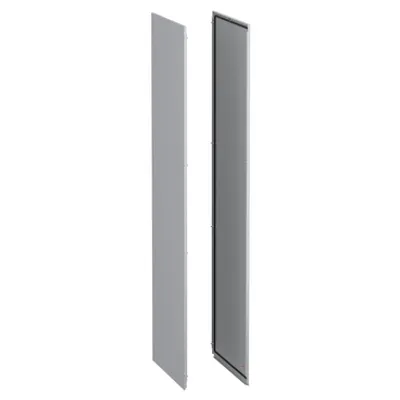

NSY2SPN228Side panels, PanelSeT SFN, for electrical enclosure H2200 D800mm, external fixing, set of 2
Schneider Electric

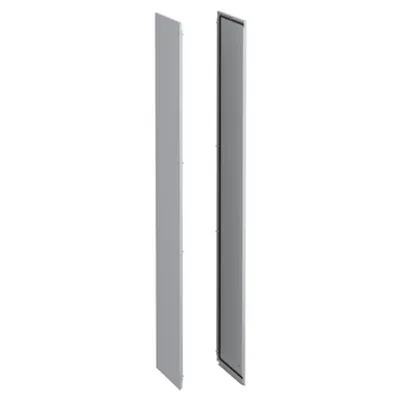

NSY2SPN226Side panels, PanelSeT SFN, for electrical enclosure H2200 D600mm, external fixing, set of 2
Schneider Electric
NSY2SPN2210Side panels, PanelSeT SFN, for electrical enclosure H2200 D1000mm, external fixing, set of 2
Schneider Electric

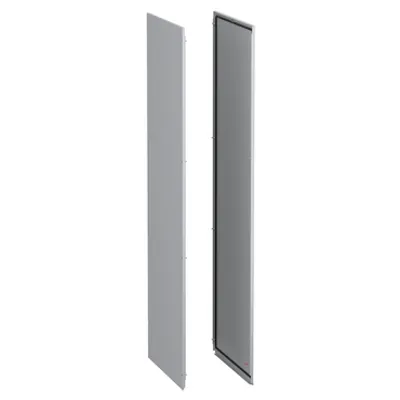

NSY2SPN208Side panels, PanelSeT SFN, for electrical enclosure H2000 D800mm, external fixing, set of 2
Schneider Electric

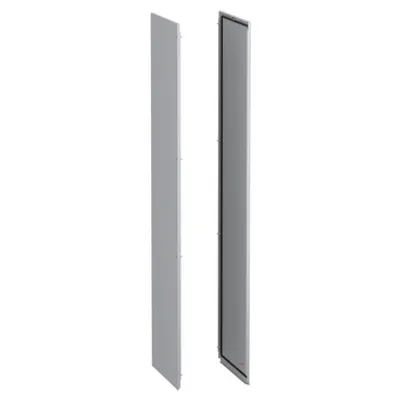

NSY2SPN206Side panels, PanelSeT SFN, for electrical enclosure H2000 D600mm, external fixing, set of 2
Schneider Electric

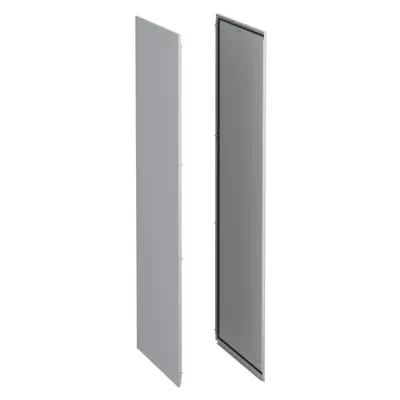

NSY2SPN2010Side panels, PanelSeT SFN, for electrical enclosure H2000 D1000mm, external fixing, set of 2
Schneider Electric

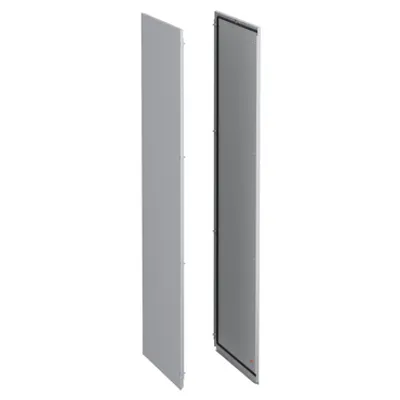

NSY2SPN188Side panels, PanelSeT SFN, for electrical enclosure H1800 D800mm, external fixing, set of 2
Schneider Electric

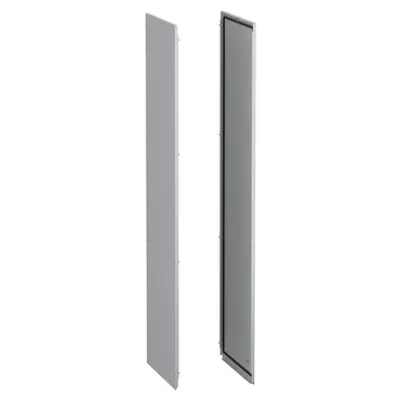

NSY2SPN186Side panels, PanelSeT SFN, for electrical enclosure H1800 D600mm, external fixing, set of 2
Schneider Electric

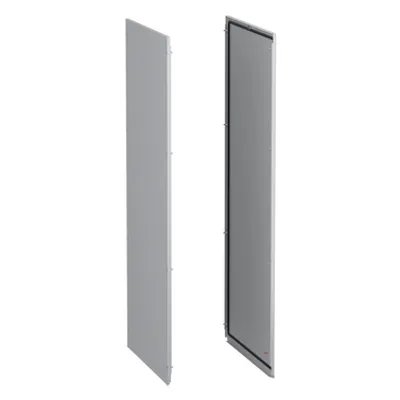

NSY2SPN168Side panels, PanelSeT SFN, for electrical enclosure H1600 D800mm, external fixing, set of 2
Schneider Electric

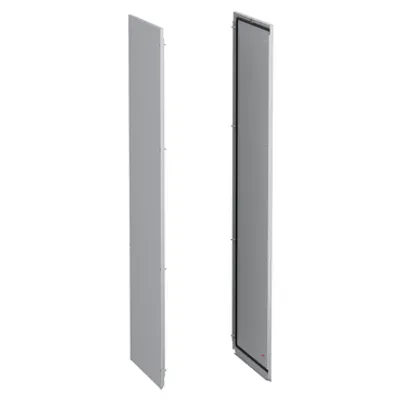

NSY2SPN166Side panels, PanelSeT SFN, for electrical enclosure H1600 D600mm, external fixing, set of 2
Schneider Electric

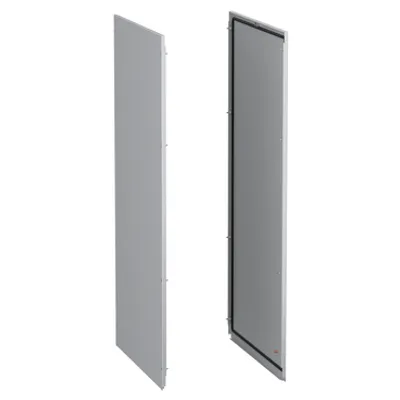

NSY2SPN148Side panels, PanelSeT SFN, for electrical enclosure H1400 D800mm, external fixing, set of 2
Schneider Electric

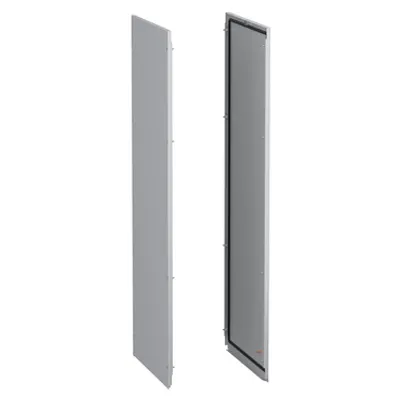

NSY2SPN146Side panels, PanelSeT SFN, for electrical enclosure H1400 D600mm, external fixing, set of 2
Schneider Electric

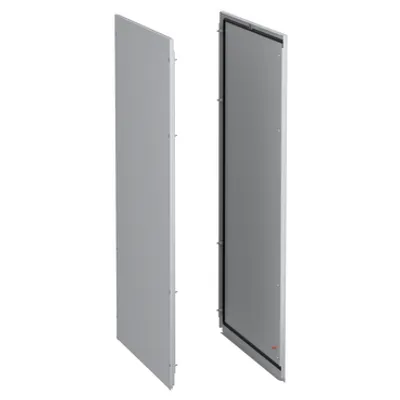

NSY2SPN128Side panels, PanelSeT SFN, for electrical enclosure H1200 D800mm, external fixing, set of 2
Schneider Electric

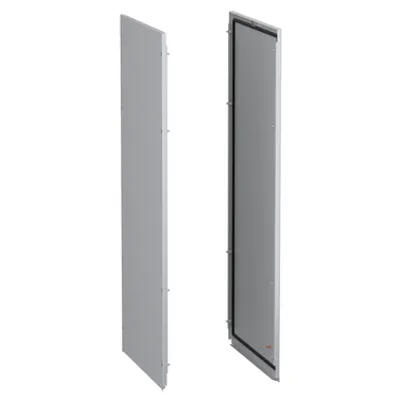

NSY2SPN126Side panels, PanelSeT SFN, for electrical enclosure H1200 D600mm, external fixing, set of 2
Schneider Electric

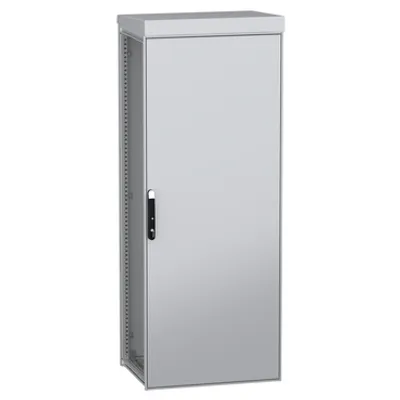

NSYSFNHD20860Outdoor floor standing modular electrical enclosure;PanelSeT SFN;decarbonized steel;2000x800x600mm;IP55;RAL7035
Schneider Electric

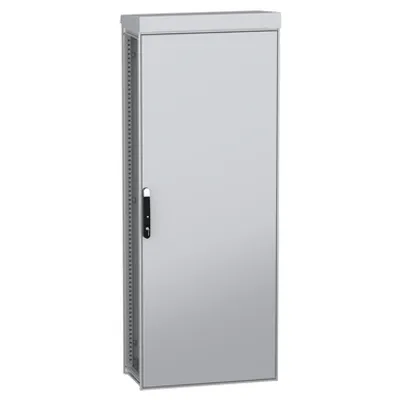

NSYSFNHD20840Outdoor floor standing modular electrical enclosure;PanelSeT SFN;decarbonized steel;2000x800x400mm;IP55;RAL7035
Compare PanelSeT SFN
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | For enclosure nominal dimensions | Height | Width | Net weight |
|---|---|---|---|---|---|
| NSYSFNC66 | Framework kit | - W: 600 mm D: 600 mm | 110 mm | 600 mm | — |
| NSYSFNC610 | Framework kit | - W: 600 mm D: 1000 mm | 110 mm | 600 mm | — |
| NSYSFND228T | Door | - H: 2200 mm W: 800 mm | Nominal: 2200 mm | Nominal: 769 mm | 12.9 kg |
| NSYSFND228 | Door | - H: 2200 mm W: 800 mm | Nominal: 2200 mm | Nominal: 769 mm | 54.5 kg |
| NSYSFND226T | Door | - H: 2200 mm W: 600 mm | Nominal: 2200 mm | Nominal: 569 mm | 33.3 kg |
| NSYSFND226 | Door | - H: 2200 mm W: 600 mm | Nominal: 2200 mm | Nominal: 569 mm | 42.8 kg |
| NSYSFND126T | Door | - H: 1200 mm W: 600 mm | Nominal: 1200 mm | Nominal: 569 mm | 10.8 kg |

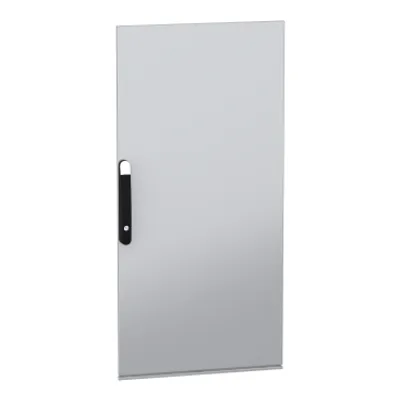

| NSYSFND126 | Door | - H: 1200 mm W: 600 mm | Nominal: 1200 mm | Nominal: 569 mm | 9.9 kg |
| NSY2SPN228 | Side panel | - H: 2200 mm D: 800 mm | Nominal: 2200 mm | Nominal: 800 mm | 136.5 kg |
| NSY2SPN226 | Side panel | - H: 2200 mm D: 600 mm | Nominal: 2200 mm | Nominal: 600 mm | 98.8 kg |
| NSY2SPN2210 | Side panel | - H: 2200 mm D: 1000 mm | Nominal: 2200 mm | Nominal: 1000 mm | 103.8 kg |
| NSY2SPN208 | Side panel | - H: 2000 mm D: 800 mm | Nominal: 2000 mm | Nominal: 800 mm | 134.4 kg |
| NSY2SPN206 | Side panel | - H: 2000 mm D: 600 mm | Nominal: 2000 mm | Nominal: 600 mm | 96.6 kg |
| NSY2SPN2010 | Side panel | - H: 2000 mm D: 1000 mm | Nominal: 2000 mm | Nominal: 1000 mm | 90 kg |
| NSY2SPN188 | Side panel | - H: 1800 mm D: 800 mm | Nominal: 1800 mm | Nominal: 800 mm | 132.3 kg |
| NSY2SPN186 | Side panel | - H: 1800 mm D: 600 mm | Nominal: 1800 mm | Nominal: 600 mm | 94.5 kg |
| NSY2SPN168 | Side panel | - H: 1600 mm D: 800 mm | Nominal: 1600 mm | Nominal: 800 mm | 88 kg |
| NSY2SPN166 | Side panel | - H: 1600 mm D: 600 mm | Nominal: 1600 mm | Nominal: 600 mm | 120.6 kg |
| NSY2SPN148 | Side panel | - H: 1400 mm D: 800 mm | Nominal: 1400 mm | Nominal: 800 mm | 114.4 kg |
| NSY2SPN146 | Side panel | - H: 1400 mm D: 600 mm | Nominal: 1400 mm | Nominal: 600 mm | 84.3 kg |
| NSY2SPN128 | Side panel | - H: 1200 mm D: 800 mm | Nominal: 1200 mm | Nominal: 800 mm | 82.4 kg |
| NSY2SPN126 | Side panel | - H: 1200 mm D: 600 mm | Nominal: 1200 mm | Nominal: 600 mm | 73.4 kg |
| NSYSFNHD20860 | Suitable enclosure | — | — | — | — |
| NSYSFNHD20840 | Suitable enclosure | — | — | — | — |
Common to all listed parts
| Range | PanelSeT |
