Schneider Electric NSY2SPN2210
Side panels, PanelSeT SFN, for electrical enclosure H2200 D1000mm, external fixing, set of 2
- MPN
- NSY2SPN2210
- Category
- PanelSeT SFN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSY2SPN2210?

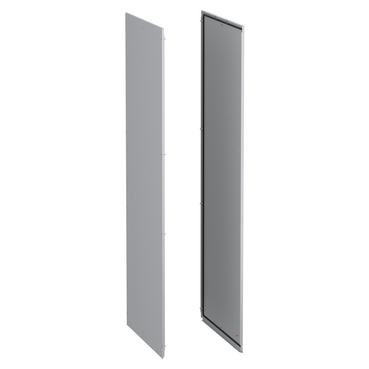

These two steel side panels are purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. They have a nominal height and depth of 2200 mm and 1000 mm, respectively. The panels are made of steel sheet. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Side panel |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - H: 2200 mm D: 1000 mm |
| Mounting location | Sides of enclosure |
| Range compatibility | PanelSeT SFN |
| Device composition | Fixing elements, 2 side panel |
| Material | Steel |
| Net weight | 103.8 kg |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws - screw type captive - from the outside of enclosure location |
| Height | Nominal: 2200 mm |
| Width | Nominal: 1000 mm |
Packaging
| Package 1 | 1 PCE, 224.000 cm × 104.000 cm × 6.000 cm (L × W × H), 60.000 kg |
| Package 2 | 12 PAL, 224.000 cm × 120.000 cm × 90.000 cm (L × W × H), 734.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSY2SPN2210: frequently asked questions
When can NSY2SPN2210 be shipped?
NSY2SPN2210 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSY2SPN2210 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSY2SPN2210 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSY2SPN2210, subject to availability and destination.
