Home / I/O / EtherCAT Terminals / EL3xxx | Analog input

EL3xxx | Analog input Parts

Beckhoff EL3104 – EtherCAT Terminal, 4-channel analog input, voltage, ±10 V, 16 bit, differential

Beckhoff

EtherCAT Terminal, 4-channel analog input, voltage, ±10 V, 16 bit, differential

Beckhoff EL3182 – EtherCAT Terminal, 2-channel analog input, current, 0/4…20 mA, 16 bit, single-ended, HART

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 0/4…20 mA, 16 bit, single-ended, HART

Beckhoff EL3214-0090 – EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection, TwinSAFE SC

Beckhoff EL3214 – EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection

Beckhoff EL3208 – EtherCAT Terminal, 8-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff

EtherCAT Terminal, 8-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff EL3204-0200 – EtherCAT Terminal, 4-channel analog input, temperature, RTD/NTC, 16 bit

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, RTD/NTC, 16 bit

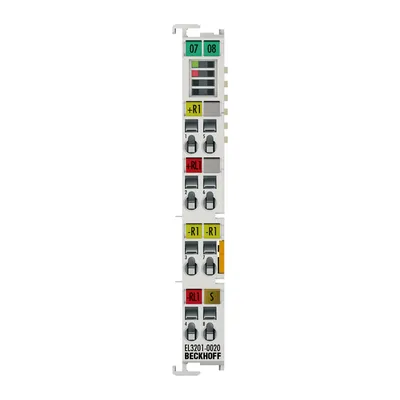

Beckhoff EL3201-0020 – EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, factory calibrated

Beckhoff

EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, factory calibrated

Beckhoff EL3202-0020 – EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, factory calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision, factory calibrated

Beckhoff EL3202 – EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff

EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff EL3201 – EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff

EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff EL3202-0010 – EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision

Beckhoff

EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision

Beckhoff EL3201-0010 – EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision

Beckhoff

EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision

Beckhoff EL3255 – EtherCAT Terminal, 5-channel analog input, potentiometer, 300 Ω…50 kΩ, 16 bit

Beckhoff

EtherCAT Terminal, 5-channel analog input, potentiometer, 300 Ω…50 kΩ, 16 bit

Beckhoff EL3204 – EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit

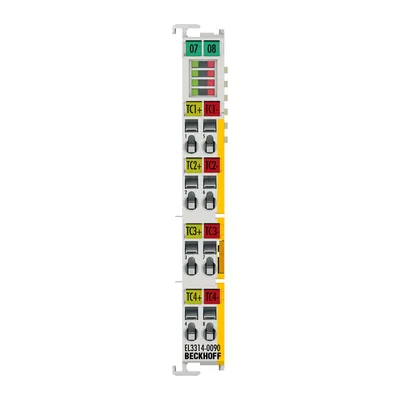

Beckhoff EL3314-0090 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit, TwinSAFE SC

Beckhoff EL3356-0020 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision, factory calibrated

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision, factory calibrated

Beckhoff EL3612-0020 – EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 24 bit, high-precision, factory calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 24 bit, high-precision, factory calibrated

Beckhoff EL3602-0020 – EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, ±5 V, ±2.5 V, ±1.25 V, 24 bit, high-precision, factory calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, ±5 V, ±2.5 V, ±1.25 V, 24 bit, high-precision, factory calibrated

Beckhoff EL3602-0002 – EtherCAT Terminal, 2-channel analog input, voltage, ±200 mV, 24 bit, high-precision

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±200 mV, 24 bit, high-precision

Beckhoff EL3356-0010 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, high-precision

Beckhoff EL3314-0010 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision

Beckhoff EL3602-0010 – EtherCAT Terminal, 2-channel analog input, voltage, ±75 mV, 24 bit, high-precision

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±75 mV, 24 bit, high-precision

Beckhoff EL3318 – EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 16 bit

Beckhoff

EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 16 bit

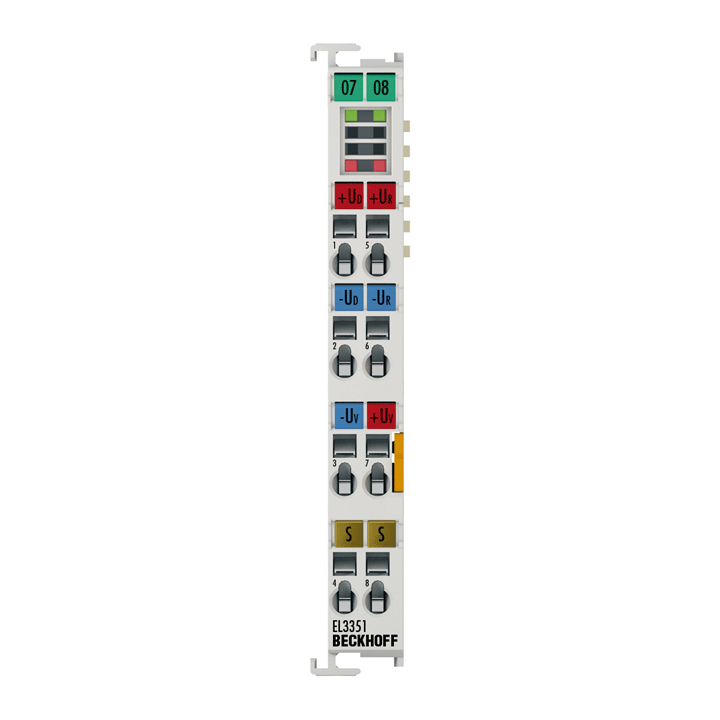

Beckhoff EL3351 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 16 bit

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 16 bit

Compare EL3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Distributed clocks	Current consumption E-bus	Weight	Operating temperature	Approvals/markings
EL3104	yes	typ. 130 mA	approx. 65 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx, cFMus
EL3182	yes	typ. 130 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx, cFMus
EL3214-0090	–	typ. 140 mA	approx. 60 g	-25…+60°C	CE, UL
EL3214	–	typ. 140 mA	approx. 60 g	-25…+60°C	CE, UL, DNV
EL3208	–	typ. 140 mA	approx. 60 g	-25…+60°C	CE, UL
EL3204-0200	–	typ. 150 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx, DNV
EL3201-0020	–	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3202-0020	–	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3202	–	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3201	–	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3202-0010	–	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3201-0010	–	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3255	yes	typ. 80 mA	approx. 70 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3204	–	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx, cFMus
EL3314-0090	–	typ. 200 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3356-0020	yes	typ. 280 mA	approx. 60 g	-25…+55°C	CE, CCC, UL, ATEX, IECEx
EL3612-0020	–	typ. 190 mA	approx. 60 g	-25…+60°C	CE, UL
EL3602-0020	–	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3602-0002	–	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3356-0010	yes	typ. 280 mA	approx. 60 g	-25…+55°C	CE, CCC, UL, ATEX, IECEx, cFMus
EL3314-0010	–	typ. 200 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3602-0010	–	typ. 190 mA	approx. 60 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx
EL3318	–	typ. 210 mA	approx. 70 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx, cFMus
EL3351	–	typ. 170 mA	approx. 60 g	-25…+55°C	CE, CCC, UL, ATEX, IECEx

Common to all listed parts

Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
