Beckhoff EL3062-0030 – EtherCAT Terminal, 2-channel analog input, voltage, 0…30 V, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, 0…30 V, 12 bit, single-ended

Beckhoff EL3062 – EtherCAT Terminal, 2-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Beckhoff EL3061 – EtherCAT Terminal, 1-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Beckhoff

EtherCAT Terminal, 1-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Beckhoff EL3112-0011 – EtherCAT Terminal, 2-channel analog input, current, ±20 mA, 16 bit, differential

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, ±20 mA, 16 bit, differential

Beckhoff EL3174 – EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit

Beckhoff EL3174-0002 – EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, differential, electrically isolated

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, differential, electrically isolated

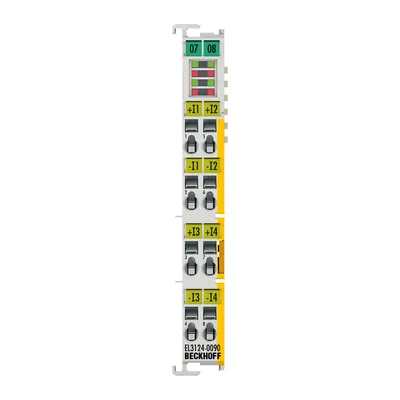

Beckhoff EL3124-0090 – EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, differential, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, differential, TwinSAFE SC

Beckhoff EL3124 – EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, differential

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, differential

Beckhoff EL3122 – EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 16 bit, differential

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 16 bit, differential

Beckhoff EL3121 – EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 16 bit, differential

Beckhoff

EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 16 bit, differential

Beckhoff EL3154 – EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended

Beckhoff EL3152 – EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 16 bit, single-ended

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 16 bit, single-ended

Beckhoff EL3151 – EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 16 bit, single-ended

Beckhoff

EtherCAT Terminal, 1-channel analog input, current, 4…20 mA, 16 bit, single-ended

Beckhoff EL3114 – EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 16 bit, differential

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 16 bit, differential

Beckhoff EL3112 – EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, differential

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, differential

Beckhoff EL3111 – EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 16 bit, differential

Beckhoff

EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 16 bit, differential

Beckhoff EL3144 – EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 16 bit, single-ended

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 16 bit, single-ended

Beckhoff EL3142 – EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, single-ended

Beckhoff

EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, single-ended

Beckhoff EL3141 – EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 16 bit, single-ended

Beckhoff

EtherCAT Terminal, 1-channel analog input, current, 0…20 mA, 16 bit, single-ended

Beckhoff EL3164 – EtherCAT Terminal, 4-channel analog input, voltage, 0…10 V, 16 bit, single-ended

Beckhoff

EtherCAT Terminal, 4-channel analog input, voltage, 0…10 V, 16 bit, single-ended

Beckhoff EL3162 – EtherCAT Terminal, 2-channel analog input, voltage, 0…10 V, 16 bit, single-ended

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, 0…10 V, 16 bit, single-ended

Beckhoff EL3161 – EtherCAT Terminal, 1-channel analog input, voltage, 0…10 V, 16 bit, single-ended

Beckhoff

EtherCAT Terminal, 1-channel analog input, voltage, 0…10 V, 16 bit, single-ended

Beckhoff EL3102 – EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 16 bit, differential

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 16 bit, differential

Beckhoff EL3101 – EtherCAT Terminal, 1-channel analog input, voltage, ±10 V, 16 bit, differential

Beckhoff

EtherCAT Terminal, 1-channel analog input, voltage, ±10 V, 16 bit, differential

Compare EL3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of inputs	Internal resistance	Current consumption E-bus	Weight	Bit width in the process image
EL3062-0030	2 (single-ended)	> 130 kΩ	typ. 130 mA	approx. 60 g	—
EL3062	2 (single-ended)	> 130 kΩ	typ. 130 mA	approx. 60 g	inputs: 8 byte
EL3061	1 (single-ended)	> 130 kΩ	typ. 130 mA	approx. 60 g	inputs: 4 byte
EL3112-0011	2 (differential)	typ. 85 Ω	typ. 170 mA	approx. 55 g	inputs: 8 byte
EL3174	4	> 200 kΩ \| typ. 85 Ω	typ. 180 mA	approx. 65 g	inputs: 16 byte
EL3174-0002	4	> 200 kΩ \| typ. 85 Ω	typ. 150 mA	approx. 65 g	inputs: 16 byte
EL3124-0090	4 (differential)	typ. 85 Ω + diode voltage	typ. 130 mA	approx. 60 g	inputs: 16 byte
EL3124	4 (differential)	typ. 85 Ω + diode voltage	typ. 130 mA	approx. 60 g	inputs: 16 byte
EL3122	2 (differential)	typ. 85 Ω + diode voltage	typ. 170 mA	approx. 55 g	inputs: 8 byte
EL3121	1 (differential)	typ. 85 Ω + diode voltage	typ. 130 mA	approx. 55 g	inputs: 4 byte
EL3154	4 (single-ended)	typ. 85 Ω + diode voltage	typ. 130 mA	approx. 60 g	inputs: 16 byte
EL3152	2 (single-ended)	typ. 85 Ω + diode voltage	typ. 170 mA	approx. 60 g	inputs: 8 byte
EL3151	1 (single-ended)	typ. 85 Ω + diode voltage	typ. 130 mA	approx. 60 g	inputs: 4 byte
EL3114	4 (differential)	typ. 85 Ω + diode voltage	typ. 130 mA	approx. 55 g	inputs: 16 byte
EL3112	2 (differential)	typ. 85 Ω + diode voltage	typ. 170 mA	approx. 55 g	inputs: 8 byte
EL3111	1 (differential)	typ. 85 Ω + diode voltage	typ. 130 mA	approx. 55 g	inputs: 4 byte
EL3144	4 (single-ended)	typ. 85 Ω + diode voltage	typ. 130 mA	approx. 60 g	inputs: 16 byte
EL3142	2 (single-ended)	typ. 85 Ω + diode voltage	typ. 170 mA	approx. 60 g	inputs: 8 byte
EL3141	1 (single-ended)	typ. 85 Ω + diode voltage	typ. 130 mA	approx. 60 g	inputs: 4 byte
EL3164	4 (single-ended)	> 200 kΩ	typ. 130 mA	approx. 65 g	inputs: 16 byte
EL3162	2 (single-ended)	> 200 kΩ	typ. 170 mA	approx. 60 g	2 x 16 bit input, 2 x 8 bit status
EL3161	1 (single-ended)	> 200 kΩ	typ. 130 mA	approx. 60 g	1 x 16 bit input, 1 x 8 bit status
EL3102	2 (differential)	> 200 kΩ	typ. 170 mA	approx. 60 g	inputs: 8 byte
EL3101	1 (differential)	> 200 kΩ	typ. 130 mA	approx. 60 g	inputs: 4 byte

Common to all listed parts

Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
