Home / I/O / EtherCAT Terminals / EL3xxx | Analog input

EL3xxx | Analog input Parts

Beckhoff ELM3102-0120 – EtherCAT Terminal, 2-channel analog input, multi-function, ±60 V, ±20 mA, 24 bit, 20 ksps, electrically isolated, factory calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, multi-function, ±60 V, ±20 mA, 24 bit, 20 ksps, electrically isolated, factory calibrated

Beckhoff EL3362 – EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, sensor supply 5/10 V DC, with 2 x digital combi

Beckhoff

EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, sensor supply 5/10 V DC, with 2 x digital combi

Beckhoff EL3184 – EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended, HART

Beckhoff

EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended, HART

Beckhoff EL3362-0100 – EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, sensor supply 10 V DC

Beckhoff

EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, sensor supply 10 V DC

Beckhoff EL3078 – EtherCAT Terminal, 8-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps

Beckhoff

EtherCAT Terminal, 8-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps

Beckhoff ELM3348-0030 – EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, externally calibrated

Beckhoff

EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, externally calibrated

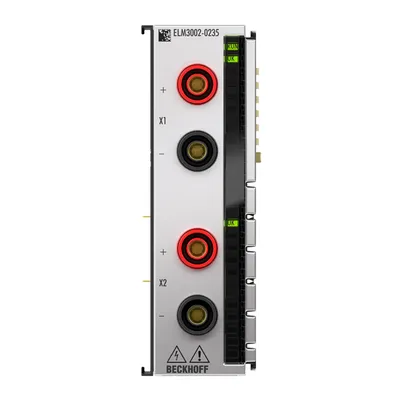

Beckhoff ELM3002-0235 – EtherCAT Terminal, 2-channel analog input, voltage, ±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket, externally calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket, externally calibrated

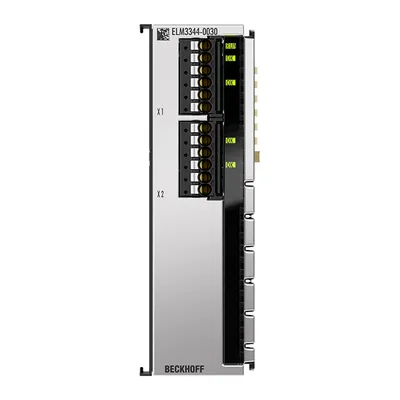

Beckhoff ELM3344-0030 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, externally calibrated

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, externally calibrated

Beckhoff ELM3002-0405 – EtherCAT Terminal, 2-channel analog input, voltage, ±60 mV…5 V/±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±60 mV…5 V/±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket

Beckhoff ELM3002-0305 – EtherCAT Terminal, 2-channel analog input, voltage, ±60 mV…5 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±60 mV…5 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket

Beckhoff ELM3344-0033 – EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, Mini-TC universal, externally calibrated

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, Mini-TC universal, externally calibrated

Beckhoff EL3446-0011 – EtherCAT Terminal, 6-channel analog input, current, 0,1 A, 24 bit, distributed power measurement

Beckhoff

EtherCAT Terminal, 6-channel analog input, current, 0,1 A, 24 bit, distributed power measurement

Beckhoff ELM3348-0033 – EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, Mini-TC universal, externally calibrated

Beckhoff

EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 ksps, Mini-TC universal, externally calibrated

Beckhoff EL3453-0090 – EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 0.1/1/5 A, 24 bit, electrically isolated, TwinSAFE SC

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 0.1/1/5 A, 24 bit, electrically isolated, TwinSAFE SC

Beckhoff EL3475-0200 – EtherCAT Terminal, 12-channel analog input, 4-port, multi-function, 333 mV, 24 bit, distributed power measurement, RJ45, extended functionalities

Beckhoff

EtherCAT Terminal, 12-channel analog input, 4-port, multi-function, 333 mV, 24 bit, distributed power measurement, RJ45, extended functionalities

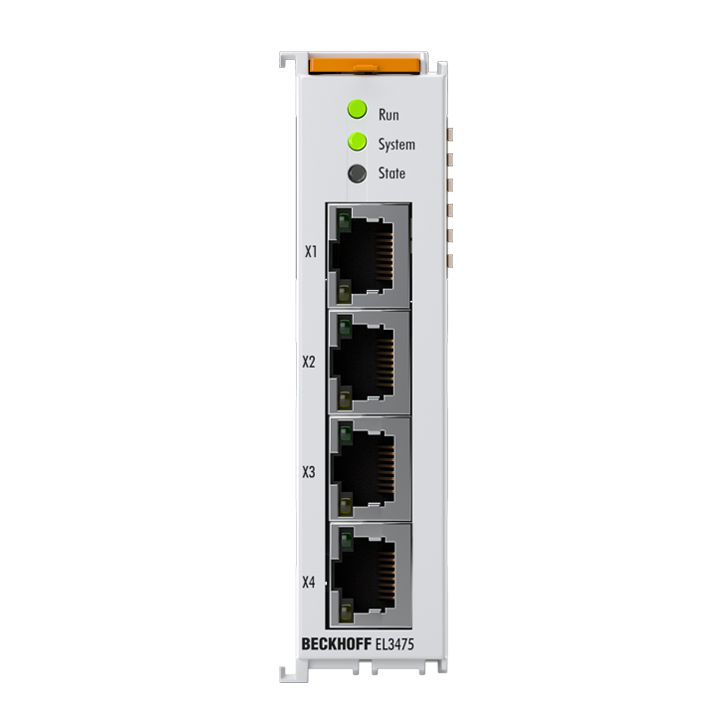

Beckhoff EL3475 – EtherCAT Terminal, 12-channel analog input, 4-port, multi-function, 333 mV, 24 bit, distributed power measurement, RJ45

Beckhoff

EtherCAT Terminal, 12-channel analog input, 4-port, multi-function, 333 mV, 24 bit, distributed power measurement, RJ45

Beckhoff EL3008-0005 – EtherCAT Terminal, 8-channel analog input, voltage, ±5 V, 16 bit, cascaded

Beckhoff

EtherCAT Terminal, 8-channel analog input, voltage, ±5 V, 16 bit, cascaded

Beckhoff ELX3632 – EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 16 bit, Ex i

Beckhoff

EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 16 bit, Ex i

Beckhoff EL3453-0030 – EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 0.1/1/5 A, 24 bit, electrically isolated, externally calibrated

Beckhoff

EtherCAT Terminal, 3-channel analog input, power measurement, 690 V AC, 0.1/1/5 A, 24 bit, electrically isolated, externally calibrated

Beckhoff ELM3002-0225 – EtherCAT Terminal, 2-channel analog input, voltage, ±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket, factory calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket, factory calibrated

Beckhoff ELM3002-0425 – EtherCAT Terminal, 2-channel analog input, voltage, ±60 mV…5 V/±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket, factory calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±60 mV…5 V/±60 V…1200 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket, factory calibrated

Beckhoff ELM3002-0325 – EtherCAT Terminal, 2-channel analog input, voltage, ±60 mV…5 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket, factory calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, voltage, ±60 mV…5 V, 24 bit, 50 ksps, electrically isolated, 4 mm socket, factory calibrated

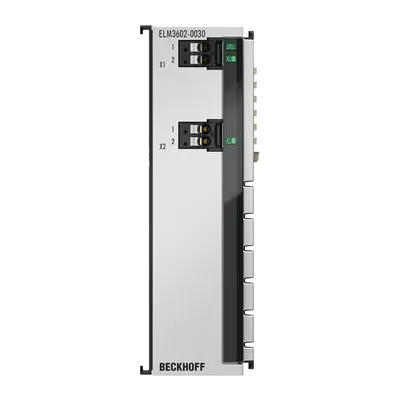

Beckhoff ELM3602-0030 – EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 24 bit, 50 ksps, externally calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 24 bit, 50 ksps, externally calibrated

Beckhoff ELM3602-0032 – EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 24 bit, 50 ksps, BNC, externally calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 24 bit, 50 ksps, BNC, externally calibrated

Compare EL3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Current consumption E-bus	Weight	Approvals/markings	Material	Dimensions (W x H x D)
ELM3102-0120	typ. 390 mA	approx. 350 g	CE, UL	zinc die-cast	30 mm x 100 mm x 95 mm
EL3362	typ. 90 mA	approx. 50 g	CE	polycarbonate	12 mm x 100 mm x 68 mm
EL3184	typ. 75 mA	approx. 60 g	CE, UL, Ex, IECEx (in preparation)	polycarbonate	12 mm x 100 mm x 68 mm
EL3362-0100	typ. 90 mA	approx. 50 g	CE	polycarbonate	12 mm x 100 mm x 68 mm
EL3078	typ. 90 mA	approx. 65 g	CE	polycarbonate	12 mm x 100 mm x 68 mm
ELM3348-0030	typ. 260 mA	approx. 350 g	CE, UL	zinc die-cast	30 mm x 100 mm x 95 mm
ELM3002-0235	typ. 460 mA	approx. 350 g	CE	zinc die-cast	30 mm x 100 mm x 95 mm
ELM3344-0030	typ. 220 mA	approx. 350 g	CE, UL	zinc die-cast	30 mm x 100 mm x 95 mm
ELM3002-0405	typ. 460 mA	approx. 350 g	CE	zinc die-cast	30 mm x 100 mm x 95 mm
ELM3002-0305	typ. 460 mA	approx. 350 g	CE	zinc die-cast	30 mm x 100 mm x 95 mm
ELM3344-0033	typ. 220 mA	approx. 350 g	CE, UL	zinc die-cast	30 mm x 100 mm x 95 mm
EL3446-0011	typ. 120 mA	approx. 75 g	CE, UL	polycarbonate	12 mm x 100 mm x 68 mm
ELM3348-0033	typ. 260 mA	approx. 350 g	CE, UL	zinc die-cast	30 mm x 100 mm x 95 mm
EL3453-0090	typ. 260 mA	—	CE	polycarbonate	24 mm x 100 mm x 68 mm
EL3475-0200	typ. 150 mA	approx. 75 g	CE	polycarbonate	24 mm x 100 mm x 52 mm
EL3475	typ. 150 mA	approx. 75 g	CE	polycarbonate	24 mm x 100 mm x 52 mm
EL3008-0005	190 mA	approx. 90 g	CE	polycarbonate	24 mm x 100 mm x 52 mm
ELX3632	typ. 50 mA	approx. 100 g	CE, UL, Ex, IECEx (in preparation)	polycarbonate, blue	24 mm x 100 mm x 68 mm
EL3453-0030	typ. 260 mA	—	CE, UL	polycarbonate	24 mm x 100 mm x 68 mm
ELM3002-0225	typ. 460 mA	approx. 350 g	CE	zinc die-cast	30 mm x 100 mm x 95 mm
ELM3002-0425	typ. 460 mA	approx. 350 g	CE	zinc die-cast	30 mm x 100 mm x 95 mm
ELM3002-0325	typ. 460 mA	approx. 350 g	CE	zinc die-cast	30 mm x 100 mm x 95 mm
ELM3602-0030	typ. 460 mA	approx. 350 g	CE, UL	zinc die-cast	30 mm x 100 mm x 95 mm
ELM3602-0032	typ. 460 mA	approx. 350 g	CE, UL	zinc die-cast	30 mm x 100 mm x 95 mm

Common to all listed parts

Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
