Home / I/O / EtherCAT Terminals / EL2xxx | Digital output

EL2xxx | Digital output Parts

Beckhoff EL2574 – EtherCAT Terminal, 4-channel LED output, pixel LED

Beckhoff

EtherCAT Terminal, 4-channel LED output, pixel LED

Beckhoff EL2502-0005 – EtherCAT Terminal, 2-channel PWM output, plastic optical fiber

Beckhoff

EtherCAT Terminal, 2-channel PWM output, plastic optical fiber

Beckhoff EL2068 – EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, with channel diagnostics

Beckhoff

EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, with channel diagnostics

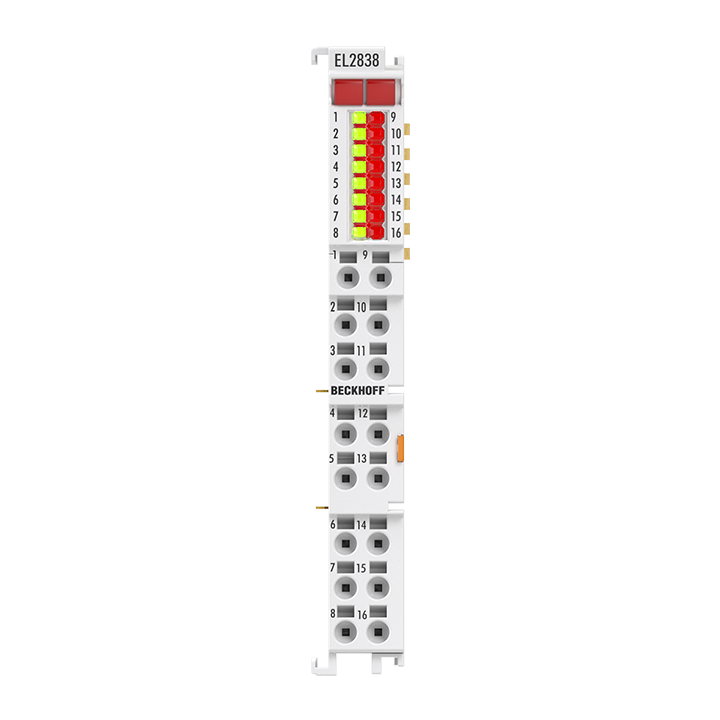

Beckhoff EL2838 – EtherCAT Terminal, 8-channel digital output, 24 V DC, 2 A, with channel diagnostics

Beckhoff

EtherCAT Terminal, 8-channel digital output, 24 V DC, 2 A, with channel diagnostics

Beckhoff EL2869 – EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, with channel diagnostics

Beckhoff

EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, with channel diagnostics

Beckhoff EL2409 – EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A

Beckhoff

EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A

Beckhoff EL2489 – EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, ground switching

Beckhoff

EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, ground switching

Beckhoff EL2407 – EtherCAT Terminal, 32-channel digital output, 24 V DC, 0.5 A

Beckhoff

EtherCAT Terminal, 32-channel digital output, 24 V DC, 0.5 A

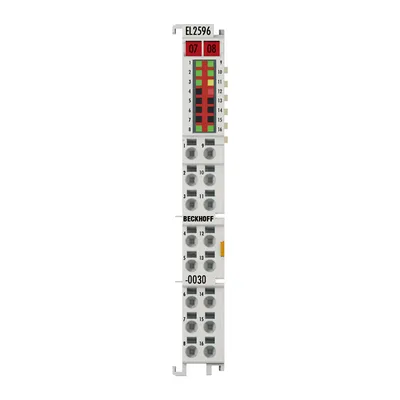

Beckhoff EL2596-0030 – EtherCAT Terminal, 1-channel LED output, 0…24 V DC, 3 A, externally calibrated

Beckhoff

EtherCAT Terminal, 1-channel LED output, 0…24 V DC, 3 A, externally calibrated

Compare EL2xxx | Digital output

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of outputs	Current consumption E-bus	Weight	Dimensions (W x H x D)	Current consumption power contacts
EL2574	4	typ. 80 mA	approx. 50 g	12 mm x 100 mm x 68 mm	—
EL2502-0005	2	typ. 140 mA	approx. 65 g	24 mm x 100 mm x 52 mm	–
EL2068	8	typ. 60 mA	approx. 50 g	12 mm x 100 mm x 68 mm	typ. 25 mA + load
EL2838	8	typ. 85 mA	approx. 50 g	12 mm x 100 mm x 68 mm	typ. 15 mA + load
EL2869	16	typ. 60 mA	approx. 60 g	12 mm x 100 mm x 68 mm	typ. 50 mA + load
EL2409	16	typ. 120 mA	approx. 70 g	12 mm x 100 mm x 68 mm	typ. 35 mA + load
EL2489	16	typ. 105 mA	approx. 70 g	12 mm x 100 mm x 68 mm	typ. 20 mA + load
EL2407	32	typ. 55 mA	approx. 100 g	24 mm x 100 mm x 68 mm	typ. 90 mA + load
EL2596-0030	1	typ. 240 mA	approx. 55 g	12 mm x 100 mm x 68 mm	–

Common to all listed parts

Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
