Home / I/O / EtherCAT Terminals / EL2xxx | Digital output

EL2xxx | Digital output Parts

Beckhoff EL2602-0010 – EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, contact-protecting switching

Beckhoff

EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, contact-protecting switching

Beckhoff EL2652 – EtherCAT Terminal, 2-channel relay output, 230 V AC, 300 V DC, 1 A

Beckhoff

EtherCAT Terminal, 2-channel relay output, 230 V AC, 300 V DC, 1 A

Beckhoff EL2624 – EtherCAT Terminal, 4-channel relay output, 125 V AC, 30 V DC, 0.5 A AC, 2 A DC

Beckhoff

EtherCAT Terminal, 4-channel relay output, 125 V AC, 30 V DC, 0.5 A AC, 2 A DC

Beckhoff EL2622 – EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, without power contacts

Beckhoff

EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, without power contacts

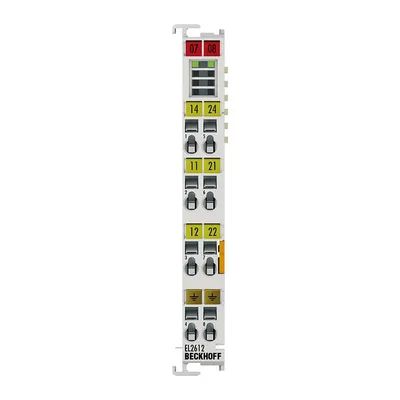

Beckhoff EL2612 – EtherCAT Terminal, 2-channel relay output, 125 V AC, 30 V DC, 0.5 A AC, 2 A DC

Beckhoff

EtherCAT Terminal, 2-channel relay output, 125 V AC, 30 V DC, 0.5 A AC, 2 A DC

Beckhoff EL2602 – EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A

Beckhoff

EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A

Beckhoff EL2794 – EtherCAT Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A, potential-free

Beckhoff

EtherCAT Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A, potential-free

Beckhoff EL2784 – EtherCAT Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A

Beckhoff

EtherCAT Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A

Beckhoff EL2788 – EtherCAT Terminal, 8-channel solid state relay output, 30 V AC, 48 V DC, 2 A

Beckhoff

EtherCAT Terminal, 8-channel solid state relay output, 30 V AC, 48 V DC, 2 A

Beckhoff EL2798 – EtherCAT Terminal, 8-channel solid state relay output, 30 V AC, 48 V DC, 2 A, potential-free

Beckhoff

EtherCAT Terminal, 8-channel solid state relay output, 30 V AC, 48 V DC, 2 A, potential-free

Beckhoff EL2722 – EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 1 A

Beckhoff

EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 1 A

Beckhoff EL2712 – EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 0.5 A

Beckhoff

EtherCAT Terminal, 2-channel triac output, 12…230 V AC, 0.5 A

Beckhoff EL2819 – EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, with extended diagnostics

Beckhoff

EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, with extended diagnostics

Beckhoff EL2828 – EtherCAT Terminal, 8-channel digital output, 24 V DC, 2 A

Beckhoff

EtherCAT Terminal, 8-channel digital output, 24 V DC, 2 A

Beckhoff EL2872 – EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, flat-ribbon cable

Beckhoff

EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, flat-ribbon cable

Beckhoff EL2889 – EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, ground switching

Beckhoff

EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, ground switching

Beckhoff EL2808 – EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, 2-wire connection

Beckhoff

EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, 2-wire connection

Beckhoff EL2809 – EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A

Beckhoff

EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A

Beckhoff EL2872-0010 – EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, ground switching, flat-ribbon cable

Beckhoff

EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, ground switching, flat-ribbon cable

Beckhoff EL2904 – EtherCAT Terminal, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE

Beckhoff

EtherCAT Terminal, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE

Beckhoff EM2042 – EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff

EtherCAT Terminal, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff ELX2002 – EtherCAT Terminal, 2-channel digital output, 24 V DC, 45 mA, Ex i

Beckhoff

EtherCAT Terminal, 2-channel digital output, 24 V DC, 45 mA, Ex i

Beckhoff EL2878-0005 – EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, flat-ribbon cable, with diagnostics

Beckhoff

EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, flat-ribbon cable, with diagnostics

Beckhoff EL2911 – EtherCAT Terminal, 4-channel digital input + 1-channel digital output, 24 V DC, 10 A, TwinSAFE, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 4-channel digital input + 1-channel digital output, 24 V DC, 10 A, TwinSAFE, TwinSAFE Logic

Compare EL2xxx | Digital output

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Connection technology	Number of outputs	Current consumption E-bus	Weight	Approvals/markings
EL2602-0010	relay output	2 x make contacts for power contact	typ. 120 mA	approx. 50 g	CE, UL
EL2652	relay output	2 x change-over	180 mA	approx. 55 g	CE, UL, DNV
EL2624	relay output	4 x make contacts	typ. 200 mA	approx. 50 g	CE, UL
EL2622	relay output	2 x make contacts	typ. 170 mA	approx. 50 g	CE, UL
EL2612	relay output	2 x change-over	typ. 150 mA	approx. 50 g	CE, UL
EL2602	relay output	2 x make contacts for power contact	typ. 170 mA	approx. 50 g	CE, UL
EL2794	2-wire	4 x make contacts	typ. 140 mA	—	CE, CCC, UL, ATEX, IECEx, DNV, cFMus
EL2784	2-wire	4 x make contacts	typ. 140 mA	—	CE, UL, DNV
EL2788	2-wire	8 x make contacts	typ. 140 mA	—	CE, UL, DNV
EL2798	2-wire	8 x make contacts	typ. 140 mA	—	CE, UL, DNV
EL2722	triac output, 2-wire	2 x make contacts, mutually locked	typ. 120 mA	approx. 55 g	CE
EL2712	triac output, 2-wire	2 x make contacts	typ. 120 mA	approx. 55 g	CE
EL2819	1-wire	16	typ. 90 mA	approx. 70 g	CE, UL, ATEX, IECEx, DNV
EL2828	2-wire	8	typ. 110 mA	approx. 70 g	CE, UL
EL2872	flat-ribbon cable	16	typ. 130 mA	approx. 55 g	CE, CCC, UL, ATEX, IECEx
EL2889	1-wire	16	typ. 140 mA	approx. 70 g	CE, CCC, UL, ATEX, IECEx
EL2808	2-wire	8	typ. 110 mA	approx. 65 g	CE, CCC, UL, ATEX, IECEx, DNV
EL2809	1-wire	16	typ. 140 mA	approx. 70 g	CE, CCC, UL, ATEX, IECEx, DNV, cFMus
EL2872-0010	flat-ribbon cable	16	typ. 130 mA	approx. 55 g	CE, CCC, UL, ATEX, IECEx
EL2904	1-/2-wire	4	typ. 221 mA	approx. 100 g	—
EM2042	D-sub	16	typ. 115 mA	approx. 90 g	CE
ELX2002	2-wire	2	typ. 45 mA	approx. 55 g	CE, UL, ATEX, IECEx, cFMus, CCC
EL2878-0005	flat-ribbon cable	8	typ. 100 mA	approx. 55 g	CE, UL
EL2911	1-/2-wire and/or via power contacts	1	typ. 180 mA	approx. 98 g	—

Common to all listed parts

Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
