Beckhoff EL2912 – EtherCAT Terminal, 2-channel digital output, 24 V DC, 2 A, TwinSAFE, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 2-channel digital output, 24 V DC, 2 A, TwinSAFE, TwinSAFE Logic

Beckhoff EL2596 – EtherCAT Terminal, 1-channel LED output, 0…24 V DC, 3 A

Beckhoff

EtherCAT Terminal, 1-channel LED output, 0…24 V DC, 3 A

Beckhoff EL2596-0010 – EtherCAT Terminal, 1-channel LED output, 0…48 V DC, 3 A

Beckhoff

EtherCAT Terminal, 1-channel LED output, 0…48 V DC, 3 A

Beckhoff EL2634 – EtherCAT Terminal, 4-channel relay output, 250 V AC, 30 V DC, 4 A

Beckhoff

EtherCAT Terminal, 4-channel relay output, 250 V AC, 30 V DC, 4 A

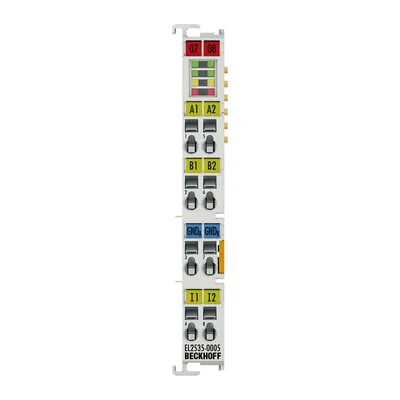

Beckhoff EL2535-0005 – EtherCAT Terminal, 2-channel PWM output, 24 V DC, 5 A, current-controlled

Beckhoff

EtherCAT Terminal, 2-channel PWM output, 24 V DC, 5 A, current-controlled

Beckhoff ELX2008 – EtherCAT Terminal, 8-channel digital output, 24 V DC, 30 mA, Ex i

Beckhoff

EtherCAT Terminal, 8-channel digital output, 24 V DC, 30 mA, Ex i

Beckhoff EL2502-0010 – EtherCAT Terminal, 2-channel PWM output, 24 V DC, 0.5 A, timestamping

Beckhoff

EtherCAT Terminal, 2-channel PWM output, 24 V DC, 0.5 A, timestamping

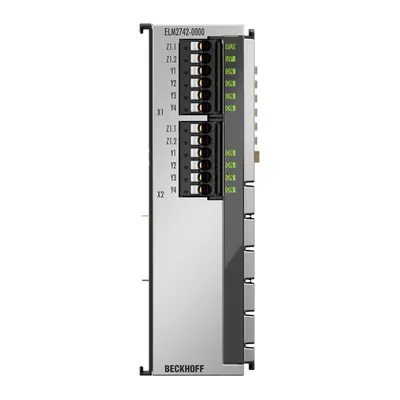

Beckhoff ELM2742-0000 – EtherCAT Terminal, 2-channel solid state relay output, multiplexer, 48 V AC/DC, 1 A, potential-free, 1 x 4

Beckhoff

EtherCAT Terminal, 2-channel solid state relay output, multiplexer, 48 V AC/DC, 1 A, potential-free, 1 x 4

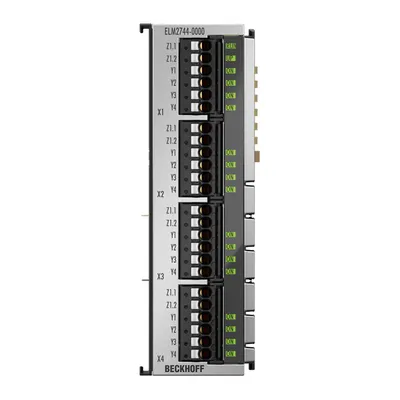

Beckhoff ELM2744-0000 – EtherCAT Terminal, 4-channel solid state relay output, multiplexer, 48 V AC/DC, 1 A, potential-free, 1 x 4

Beckhoff

EtherCAT Terminal, 4-channel solid state relay output, multiplexer, 48 V AC/DC, 1 A, potential-free, 1 x 4

Beckhoff EL2044 – EtherCAT Terminal, 4-channel digital output, 24 V DC, 2 A, with extended diagnostics

Beckhoff

EtherCAT Terminal, 4-channel digital output, 24 V DC, 2 A, with extended diagnostics

Beckhoff EL2642 – EtherCAT Terminal, 2-channel reed output, multiplexer, 48 V AC/DC, 0.5 A, potential-free, 1 x 4

Beckhoff

EtherCAT Terminal, 2-channel reed output, multiplexer, 48 V AC/DC, 0.5 A, potential-free, 1 x 4

Beckhoff ELM2642-0000 – EtherCAT Terminal, 2-channel reed output, multiplexer, 48 V AC/DC, 0.5 A, potential-free, 1 x 4

Beckhoff

EtherCAT Terminal, 2-channel reed output, multiplexer, 48 V AC/DC, 0.5 A, potential-free, 1 x 4

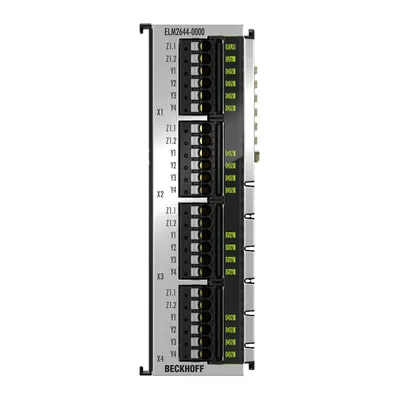

Beckhoff ELM2644-0000 – EtherCAT Terminal, 4-channel reed output, multiplexer, 48 V AC/DC, 0.5 A, potential-free, 1 x 4

Beckhoff

EtherCAT Terminal, 4-channel reed output, multiplexer, 48 V AC/DC, 0.5 A, potential-free, 1 x 4

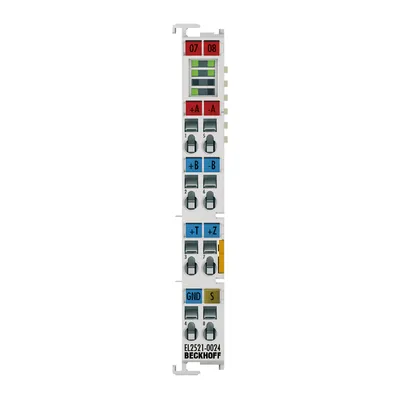

Beckhoff EL2521-0024 – EtherCAT Terminal, 1-channel pulse train output, incr. enc. simulation, 24 V DC, 1 A

Beckhoff

EtherCAT Terminal, 1-channel pulse train output, incr. enc. simulation, 24 V DC, 1 A

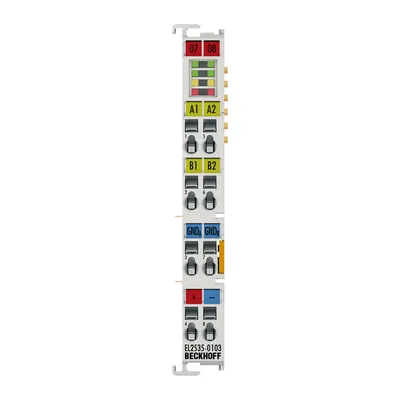

Beckhoff EL2535-0103 – EtherCAT Terminal, 2-channel PWM output, 24…48 V DC, 3.5 A, current-controlled

Beckhoff

EtherCAT Terminal, 2-channel PWM output, 24…48 V DC, 3.5 A, current-controlled

Beckhoff EL2535-0100 – EtherCAT Terminal, 2-channel PWM output, 24 V DC, 0.1 A, current-controlled

Beckhoff

EtherCAT Terminal, 2-channel PWM output, 24 V DC, 0.1 A, current-controlled

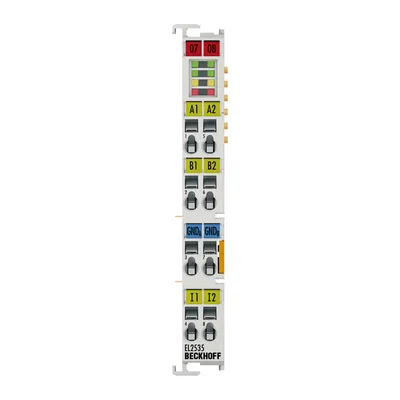

Beckhoff EL2535-0050 – EtherCAT Terminal, 2-channel PWM output, 24 V DC, 50 mA, current-controlled

Beckhoff

EtherCAT Terminal, 2-channel PWM output, 24 V DC, 50 mA, current-controlled

Beckhoff EL2535-0002 – EtherCAT Terminal, 2-channel PWM output, 24 V DC, 2 A, current-controlled

Beckhoff

EtherCAT Terminal, 2-channel PWM output, 24 V DC, 2 A, current-controlled

Beckhoff ELX2792 – EtherCAT Terminal, 2-channel solid state relay output, potential-free, Ex i

Beckhoff

EtherCAT Terminal, 2-channel solid state relay output, potential-free, Ex i

Beckhoff EL2564 – EtherCAT Terminal, 4-channel LED output, 5…48 V DC, 4 A, RGBW, common anode

Beckhoff

EtherCAT Terminal, 4-channel LED output, 5…48 V DC, 4 A, RGBW, common anode

Beckhoff EL2521-0124 – EtherCAT Terminal, 1-channel pulse train output, incr. enc. simulation, 24 V DC, 1 A, with capture/compare input/output

Beckhoff

EtherCAT Terminal, 1-channel pulse train output, incr. enc. simulation, 24 V DC, 1 A, with capture/compare input/output

Beckhoff EL2521-0025 – EtherCAT Terminal, 1-channel pulse train output, incr. enc. simulation, 24 V DC, 1 A, ground switching

Beckhoff

EtherCAT Terminal, 1-channel pulse train output, incr. enc. simulation, 24 V DC, 1 A, ground switching

Beckhoff EL2202-0100 – EtherCAT Terminal, 2-channel digital output, 24 V DC, 0.5 A, push-pull, tristate, distributed clocks

Beckhoff

EtherCAT Terminal, 2-channel digital output, 24 V DC, 0.5 A, push-pull, tristate, distributed clocks

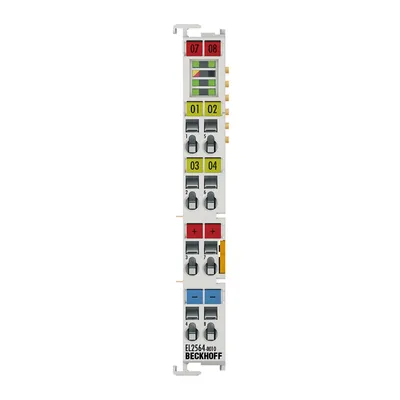

Beckhoff EL2564-0010 – EtherCAT Terminal, 4-channel LED output, 8…48 V DC, 3 A, RGBW, common cathode

Beckhoff

EtherCAT Terminal, 4-channel LED output, 8…48 V DC, 3 A, RGBW, common cathode

Compare EL2xxx | Digital output

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Connection technology	Current consumption power contacts	Current consumption E-bus	Weight	Approvals/markings
EL2912	1-/2-wire	load-dependent	typ. 200 mA	approx. 55 g	—
EL2596	2-wire	–	typ. 240 mA	approx. 55 g	CE
EL2596-0010	2-wire	–	typ. 265 mA	approx. 55 g	CE
EL2634	relay output	–	80 mA	approx. 70 g	CE, UL
EL2535-0005	PWM output, push-pull outputs	typ. 30 mA + load	typ. 110 mA	approx. 50 g	CE, CCC, ATEX, IECEx, cFMus
ELX2008	2-wire	typ. 30 mA + load	typ. 60 mA	approx. 100 g	CE, UL, ATEX, IECEx, cFMus, CCC
EL2502-0010	PWM output, push-pull outputs	typ. 30 mA	typ. 100 mA	approx. 50 g	CE, CCC, UL, ATEX, IECEx
ELM2742-0000	2-wire MOSFET output	typ. 20 mA	typ. 60 mA	approx. 350 g	CE
ELM2744-0000	2-wire MOSFET output	–	typ. 60 mA	approx. 350 g	CE
EL2044	2-wire	typ. 25 mA + load	typ. 55 mA	approx. 50 g	CE
EL2642	2-wire reed output	typ. 20 mA	typ. 60 mA	approx. 100 g	CE
ELM2642-0000	2-wire reed output	typ. 20 mA	typ. 60 mA	approx. 350 g	CE
ELM2644-0000	2-wire reed output	typ. 30 mA	typ. 60 mA	approx. 350 g	CE
EL2521-0024	pulse train (frequency output)	–	typ. 280 mA	approx. 50 g	CE, CCC, UL, ATEX, IECEx
EL2535-0103	PWM output, push-pull outputs	typ. 30 mA + load	typ. 110 mA	approx. 50 g	CE, CCC, ATEX, IECEx
EL2535-0100	PWM output, push-pull outputs	typ. 30 mA + load	typ. 110 mA	approx. 50 g	CE
EL2535-0050	PWM output, push-pull outputs	typ. 30 mA + load	typ. 110 mA	approx. 50 g	CE, CCC, UL, ATEX, IECEx
EL2535-0002	PWM output, push-pull outputs	typ. 30 mA + load	typ. 110 mA	approx. 50 g	CE, CCC, UL, ATEX, IECEx, cFMus
ELX2792	semiconductor output	typ. 0 mA	typ. 55 mA	approx. 55 g	CE, ATEX, IECEx, cFMus
EL2564	2-wire	—	typ. 70 mA	approx. 50 g	CE
EL2521-0124	pulse train (frequency output)	load	typ. 280 mA	approx. 50 g	CE, CCC, UL, ATEX, IECEx
EL2521-0025	pulse train (frequency output)	–	typ. 280 mA	approx. 50 g	CE, CCC, UL, ATEX, IECEx
EL2202-0100	4-wire	typ. 30 mA + load	typ. 130 mA	approx. 60 g	CE, CCC, UL, ATEX, IECEx
EL2564-0010	2-wire	–	typ. 70 mA	approx. 50 g	CE

Common to all listed parts

Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Stripping length	8…9 mm
