SIRIUS 3RT contactors with extended application range, 3-pole Parts
Compare SIRIUS 3RT contactors with extended application range, 3-pole
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — at AC in hot operating state | Net Weight | operational current — at AC-2 at 400 V rated value | operational current — at AC-3 — at 400 V rated value | operational current — at AC-3 — at 500 V rated value |
|---|---|---|---|---|---|
| 3RT2037-3XB44-0LA2 | 11.4 W | 1.183 kg | 65 A | 65 A | 65 A |
| 3RT2037-3XB40-0LA2 | 11.4 W | 1.08 kg | 65 A | 65 A | 65 A |
| 3RT2018-2XF41-0LA2 | 6.6 W | 0.285 kg | 16 A | 16 A | 12.4 A |

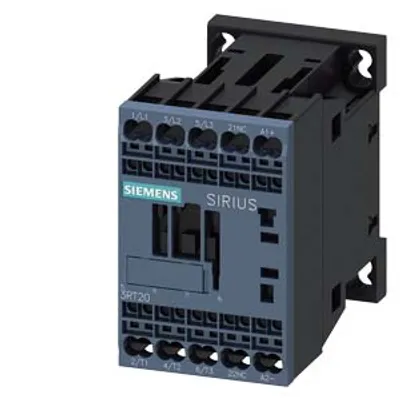

| 3RT2018-2XB42-2LA2 | 6.6 W | 0.294 kg | 16 A | 16 A | 12.4 A |

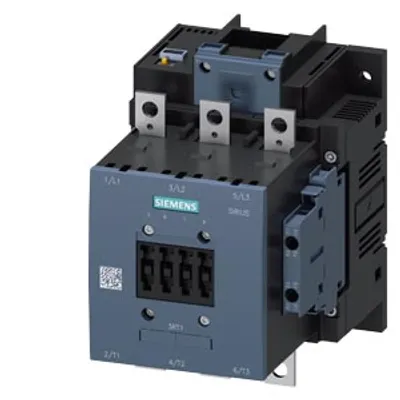

| 3RT1055-6XB46-0LA2 | 27 W | 3.24 kg | 150 A | 150 A | 150 A |
| 3RT1075-6XJ46-0LA2 | 105 W | 10.486 kg | 400 A | 400 A | 400 A |
| 3RT1056-2XJ46-0LA2 | 39 W | 3.144 kg | 185 A | 185 A | 185 A |
| 3RT1056-2XF46-0LA2 | 39 W | 3.21 kg | 185 A | 185 A | 185 A |
| 3RT1056-2XB46-0LA2 | 39 W | 3.321 kg | 185 A | 185 A | 185 A |

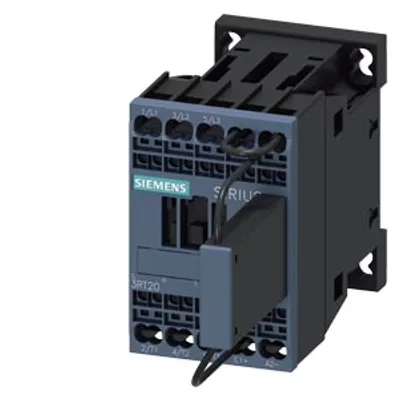

| 3RT2016-2LJ82-0LA0 | 2.1 W | 0.305 kg | 9 A | 9 A | 7.7 A |
| 3RT2036-1XF40-0LA2 | 12 W | 1.082 kg | 50 A | 51 A | 51 A |
| 3RT2036-1XB40-0LA2 | 12 W | 1.137 kg | 50 A | 51 A | 51 A |
| 3RT1066-2XJ46-0LA2 | 66 W | 6.452 kg | 300 A | 300 A | 300 A |

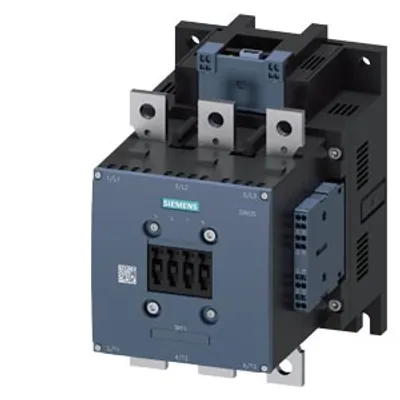

| 3RT1066-2XF46-0LA2 | 66 W | 6.27 kg | 300 A | 300 A | 300 A |

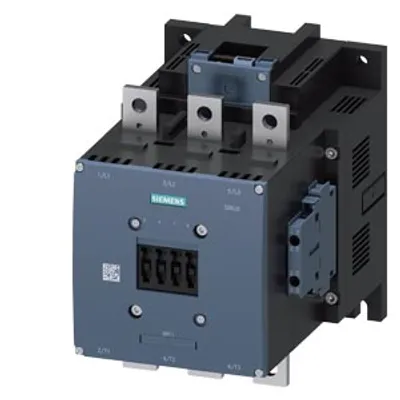

| 3RT1075-6XF46-0LA2 | 105 W | 10.352 kg | 400 A | 400 A | 400 A |
| 3RT1075-6XB46-0LA2 | 105 W | 10.36 kg | 400 A | 400 A | 400 A |

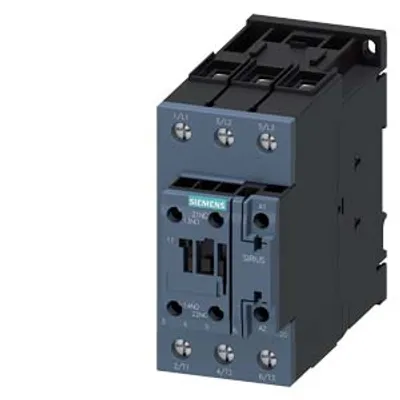

| 3RT2035-1XF40-0LA2 | 6.6 W | 1.074 kg | 40 A | 41 A | 41 A |
| 3RT2035-1XB40-0LA2 | 6.6 W | 1.077 kg | 40 A | 41 A | 41 A |
| 3RT1054-1XF46-0LA2 | 21 W | 3.522 kg | 115 A | 115 A | 115 A |

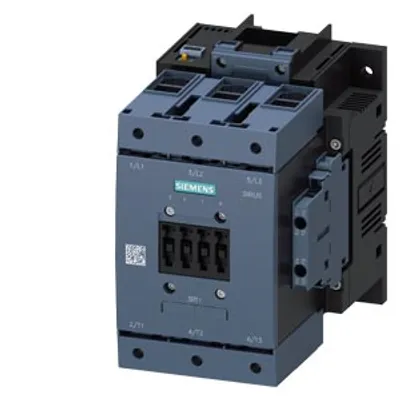

| 3RT1054-1XB46-0LA2 | 21 W | 3.59 kg | 115 A | 115 A | 115 A |
| 3RT2026-2XJ40-0LA2 | 4.8 W | 0.556 kg | 25 A | 25 A | 18 A |

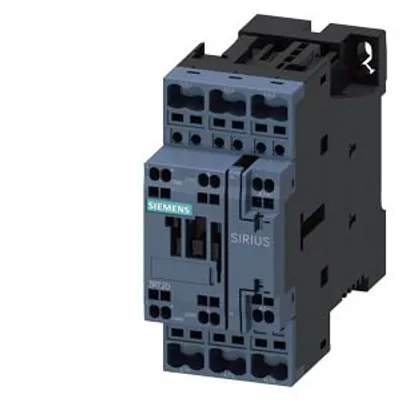

| 3RT2026-2XG40-0LA2 | 4.8 W | 0.553 kg | 25 A | 25 A | 18 A |

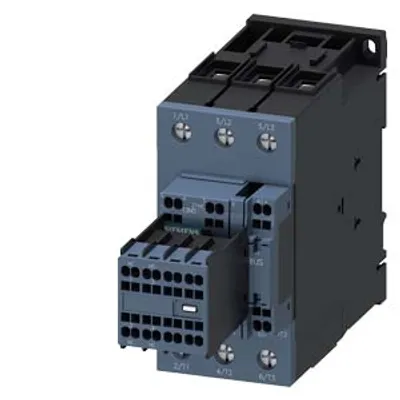

| 3RT2035-3XJ44-0LA2 | 6.6 W | 1.182 kg | 40 A | 41 A | 41 A |

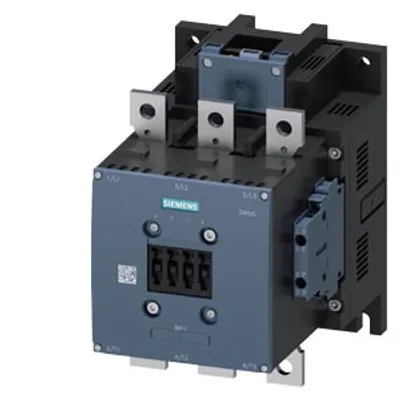

| 3RT1466-6XB46-0LA2 | 81 W | 6.199 kg | 138 A | 138 A | 138 A |
Common to all listed parts
| product designation | Power contactor |
| design of the product | With extended operating range |
| product extension — function module for communication | No |
| product extension — auxiliary switch | Yes |
| type of calculation of power loss current-dependent | quadratic |
| surge voltage resistance — of auxiliary circuit rated value | 6 kV |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
