SIRIUS 3RT contactors with extended application range, 3-pole Parts
Compare SIRIUS 3RT contactors with extended application range, 3-pole
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — at AC in hot operating state | power loss [W] for rated value of the current — at AC in hot operating state per pole | Net Weight | operational current — at AC-1 at 400 V at ambient temperature 40 °C rated value | operational current — at AC-1 — up to 690 V at ambient temperature 40 °C rated value |
|---|---|---|---|---|---|

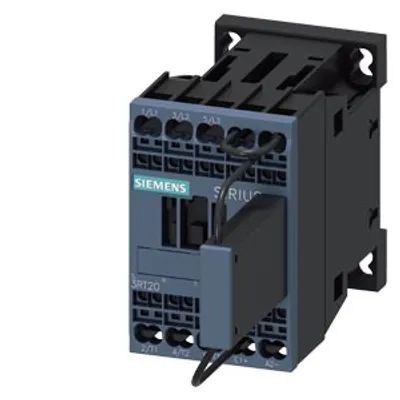

| 3RT2017-2LJ82-0LA0 | 3.6 W | 1.2 W | 0.313 kg | 22 A | 22 A |

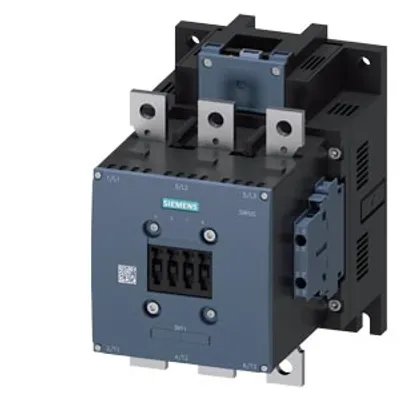

| 3RT1065-6XJ46-0LA2 | 54 W | 18 W | 6.34 kg | 330 A | 330 A |

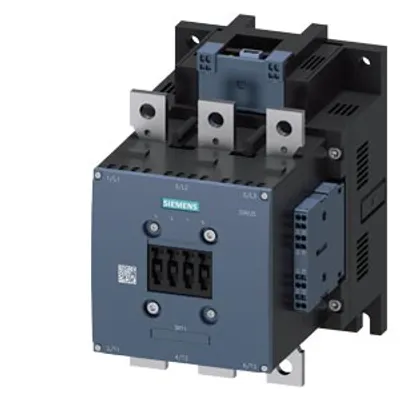

| 3RT1065-2XJ46-0LA2 | 54 W | 18 W | 6.338 kg | 330 A | 330 A |
| 3RT1065-2XF46-0LA2 | 54 W | 18 W | 6.262 kg | 330 A | 330 A |
| 3RT1065-2XB46-0LA2 | 54 W | 18 W | 6.196 kg | 330 A | 330 A |
| 3RT1456-6XF46-0LA2 | 60 W | 20 W | 3.212 kg | 275 A | 275 A |
| 3RT1456-6XB46-0LA2 | 60 W | 20 W | 3.284 kg | 275 A | 275 A |
| 3RT1065-6XF46-0LA2 | 54 W | 18 W | 6.308 kg | 330 A | 330 A |
| 3RT1065-6XB46-0LA2 | 54 W | 18 W | 6.134 kg | 330 A | 330 A |
| 3RT1055-2XJ46-0LA2 | 27 W | 9 W | 3.19 kg | 185 A | 185 A |

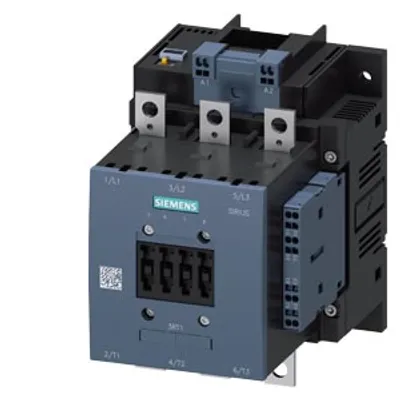

| 3RT1055-2XF46-0LA2 | 27 W | 9 W | 3.201 kg | 185 A | 185 A |
| 3RT1055-2XB46-0LA2 | 27 W | 9 W | 3.343 kg | 185 A | 185 A |
| 3RT2028-2XL40-0LA2 | 11.4 W | 3.8 W | 0.566 kg | 50 A | 50 A |

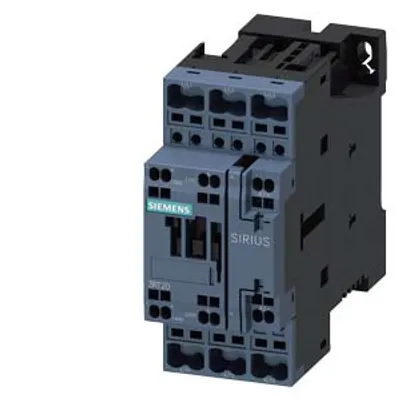

| 3RT2028-2XJ40-0LA2 | 11.4 W | 3.8 W | 0.564 kg | 50 A | 50 A |
| 3RT2028-2XG40-0LA2 | 11.4 W | 3.8 W | 0.562 kg | 50 A | 50 A |

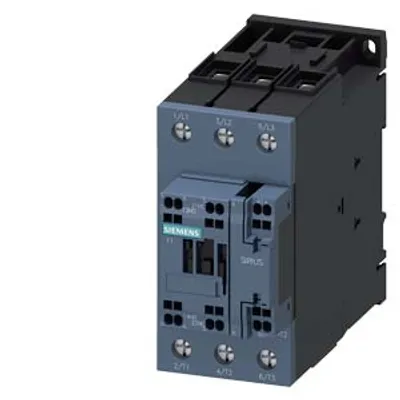

| 3RT2038-3XF40-0LA2 | 17.1 W | 5.7 W | 1.03 kg | 90 A | 90 A |

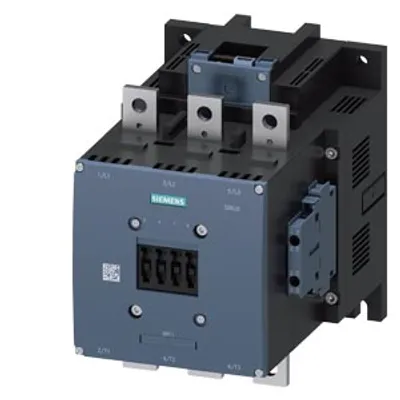

| 3RT1076-6XJ46-0LA2 | 165 W | 55 W | 1.034 kg | 610 A | 610 A |
| 3RT1076-6XF46-0LA2 | 165 W | 55 W | 10.467 kg | 610 A | 610 A |
| 3RT1076-6XB46-0LA2 | 165 W | 55 W | 10.527 kg | 610 A | 610 A |
| 3RT1466-2XJ46-0LA2 | 81 W | 27 W | 6.232 kg | 400 A | 400 A |
| 3RT1466-2XF46-0LA2 | 81 W | 27 W | 6.359 kg | 400 A | 400 A |
| 3RT1466-2XB46-0LA2 | 81 W | 27 W | 6.213 kg | 400 A | 400 A |
| 3RT1456-6XJ46-0LA2 | 60 W | 20 W | 3.16 kg | 275 A | 275 A |

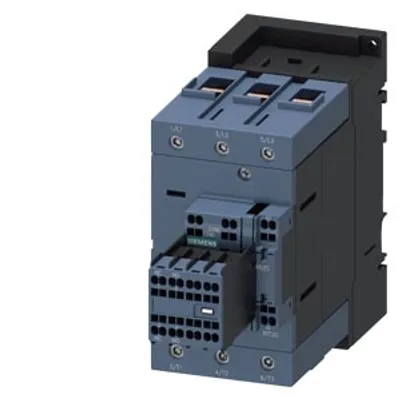

| 3RT2046-3XB44-0LA2 | 19.8 W | 6.6 W | 1.789 kg | 130 A | 130 A |
Common to all listed parts
| product designation | Power contactor |
| design of the product | With extended operating range |
| product extension — function module for communication | No |
| product extension — auxiliary switch | Yes |
| type of calculation of power loss current-dependent | quadratic |
| surge voltage resistance — of auxiliary circuit rated value | 6 kV |
| mechanical service life (operating cycles) — of the contactor with added electronically optimized auxiliary switch block typical | 5 000 000 |
| mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical | 10 000 000 |
