Mechanical multiple position limit switches Parts

Balluff

BNS00HE

BNS 819-D04-E12-100-10-S90R – Mechanical multiple position limit switches

Balluff

BNS01UZ

BNS 819-B04-D08-46-13-S80S – Mechanical multiple position limit switches

Balluff

BNS00H4

BNS 819-D04-D16-100-10-FE-S90R – Mechanical multiple position limit switches

Balluff

BNS01JT

BNS 819-D04-D12-62-10-FD-S80S – Mechanical multiple position limit switches

Balluff

BNS01TF

BNS 819-B03-D10-46-11-S80R – Mechanical multiple position limit switches

Balluff

BNS00K9

BNS 819-D05-R12-100-10-FD-S90L – Mechanical multiple position limit switches

Balluff

BNS0188

BNS 819-D02-L12-100-10-S90R – Mechanical multiple position limit switches

Balluff

BNS00KM

BNS 819-D06-D12-100-10-FD-S90R – Mechanical multiple position limit switches

Balluff

BNS00CC

BNS 819-D02-R12-100-10-FD-S80R – Mechanical multiple position limit switches

Balluff

BNS01M9

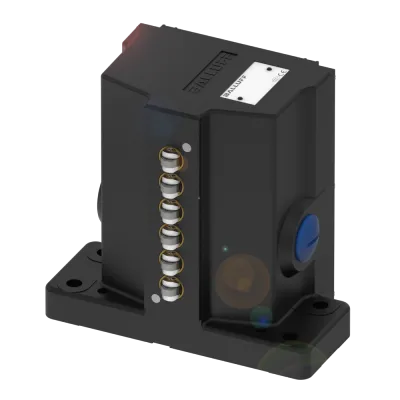

BNS 819-D08-L12-62-10-FE-S90R – Mechanical multiple position limit switches

Balluff

BNS01KR

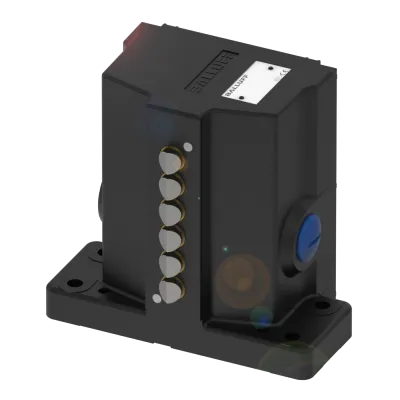

BNS 819-D05-D12-62-10-FD-S80K – Mechanical multiple position limit switches

Balluff

BNS00EU

BNS 819-D03-L16-100-10-FD-S80S – Mechanical multiple position limit switches

Balluff

BNS01YL

BNS 819-B05-D08-46-11-S80S – Mechanical multiple position limit switches

Balluff

BNS00KP

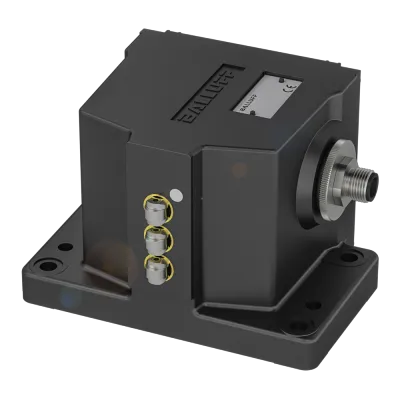

BNS 819-D06-D12-100-10-FE-S80K – Mechanical multiple position limit switches

Balluff

BNS01JL

BNS 819-D03-R12-62-10-S80R – Mechanical multiple position limit switches

Balluff

BNS00LE

BNS 819-D06-L12-100-10-FD-S90R – Mechanical multiple position limit switches

Balluff

BNS01JK

BNS 819-D03-R12-62-10-FE-S80S – Mechanical multiple position limit switches

Balluff

BNS01W4

BNS 819-B04-D10-46-11-S80S – Mechanical multiple position limit switches

Balluff

BNS00F0

BNS 819-D03-R12-100-10-FD-S80S – Mechanical multiple position limit switches

Balluff

BNS00J3

BNS 819-D04-L16-100-10-FD-S90R – Mechanical multiple position limit switches

Balluff

BNS01LP

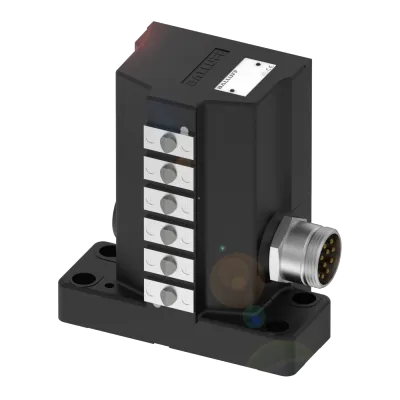

BNS 819-D06-E16-62-10-S90R – Mechanical multiple position limit switches

Balluff

BNS01J1

BNS 819-D03-D12-62-10-FE-S90R – Mechanical multiple position limit switches

Balluff

BNS01NM

BNS 819-B02-D08-40-10-S80R – Mechanical multiple position limit switches

Balluff

BNS01NR

BNS 819-B02-D08-40-12-S80R – Mechanical multiple position limit switches

Compare Mechanical multiple position limit switches

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Type designation	Dimension	Number of switching positions	Continuous current	Approach speed
BNS00HE	BNS 819-D04-E12-100-10-S90R	120 x 90 x 83 mm	4x E-Chisel	1-4. Switch position: 5 A	1-4. Switch position: 30 m/min
BNS01UZ	BNS 819-B04-D08-46-13-S80S	72 x 64 x 47 mm	4x Chisel	1-4. Switch position: 0.1 A	1-4. Switch position: 20 m/min
BNS00H4	BNS 819-D04-D16-100-10-FE-S90R	120 x 105 x 85 mm	4x Chisel	1-4. Switch position: 5 A	1-4. Switch position: 40 m/min
BNS01JT	BNS 819-D04-D12-62-10-FD-S80S	120 x 84 x 85.5 mm	4x Chisel	1-4. Switch position: 4 A	1-4. Switch position: 40 m/min
BNS01TF	BNS 819-B03-D10-46-11-S80R	72 x 59 x 47 mm	3x Chisel	1-3. Switch position: 4 A	1-3. Switch position: 20 m/min
BNS00K9	BNS 819-D05-R12-100-10-FD-S90L	120 x 105 x 85 mm	5x Roller	1-5. Switch position: 5 A	1-5. Switch position: 60 m/min
BNS0188	BNS 819-D02-L12-100-10-S90R	120 x 70 x 83 mm	2x Roller bearing	1-2. Switch position: 5 A	1-2. Switch position: 120 m/min
BNS00KM	BNS 819-D06-D12-100-10-FD-S90R	—	6x Chisel	1-6. Switch position: 5 A	1-6. Switch position: 40 m/min
BNS00CC	BNS 819-D02-R12-100-10-FD-S80R	120 x 70 x 85 mm	2x Roller	1-2. Switch position: 4 A	1-2. Switch position: 60 m/min
BNS01M9	BNS 819-D08-L12-62-10-FE-S90R	120 x 130 x 85.5 mm	8x Roller bearing	1-8. Switch position: 5 A	1-8. Switch position: 120 m/min
BNS01KR	BNS 819-D05-D12-62-10-FD-S80K	120 x 96 x 85.5 mm	5x Chisel	1-5. Switch position: 4 A	1-5. Switch position: 40 m/min
BNS00EU	BNS 819-D03-L16-100-10-FD-S80S	120 x 90 x 85 mm	3x Roller bearing	1-3. Switch position: 4 A	1-3. Switch position: 120 m/min
BNS01YL	BNS 819-B05-D08-46-11-S80S	72 x 72 x 47 mm	5x Chisel	1-5. Switch position: 4 A	1-5. Switch position: 20 m/min
BNS00KP	BNS 819-D06-D12-100-10-FE-S80K	120 x 120 x 85 mm	6x Chisel	1-6. Switch position: 4 A	1-6. Switch position: 40 m/min
BNS01JL	BNS 819-D03-R12-62-10-S80R	120 x 72 x 64 mm	3x Roller	1-3. Switch position: 4 A	1-3. Switch position: 60 m/min
BNS00LE	BNS 819-D06-L12-100-10-FD-S90R	120 x 120 x 85 mm	6x Roller bearing	1-6. Switch position: 5 A	1-6. Switch position: 120 m/min
BNS01JK	BNS 819-D03-R12-62-10-FE-S80S	120 x 72 x 85.5 mm	3x Roller	1-3. Switch position: 4 A	1-3. Switch position: 60 m/min
BNS01W4	BNS 819-B04-D10-46-11-S80S	72 x 72 x 47 mm	4x Chisel	1-4. Switch position: 4 A	1-4. Switch position: 20 m/min
BNS00F0	BNS 819-D03-R12-100-10-FD-S80S	120 x 80 x 85 mm	3x Roller	1-3. Switch position: 4 A	1-3. Switch position: 60 m/min
BNS00J3	BNS 819-D04-L16-100-10-FD-S90R	120 x 105 x 85 mm	4x Roller bearing	1-4. Switch position: 5 A	1-4. Switch position: 120 m/min
BNS01LP	BNS 819-D06-E16-62-10-S90R	120 x 130 x 64 mm	6x E-Chisel	1-6. Switch position: 5 A	1-6. Switch position: 30 m/min
BNS01J1	BNS 819-D03-D12-62-10-FE-S90R	120 x 72 x 85.5 mm	3x Chisel	1-3. Switch position: 5 A	1-3. Switch position: 40 m/min
BNS01NM	BNS 819-B02-D08-40-10-S80R	40 x 34 x 48 mm	2x Chisel	1-2. Switch position: 4 A	1-2. Switch position: 20 m/min
BNS01NR	BNS 819-B02-D08-40-12-S80R	—	2x Chisel	1-2. Switch position: 0.1 A	1-2. Switch position: 20 m/min

Common to all listed parts

Lifecycle	Active
Product group	Mechanical multiple position limit switches
Version	Snap contact
Installation	Vertical
Approach direction	longitudinal, parallel to attachment surface
Connection type	1. Switch position: Connector
Ambient temperature	-5...85 °C
IP rating	IP67
