Mechanical multiple position limit switches Parts

Balluff

BNS01UT

BNS 819-B04-D08-46-11 – Mechanical multiple position limit switches

Balluff

BNS01MA

BNS 819-D08-R12-62-10 – Mechanical multiple position limit switches

Balluff

BNS01M1

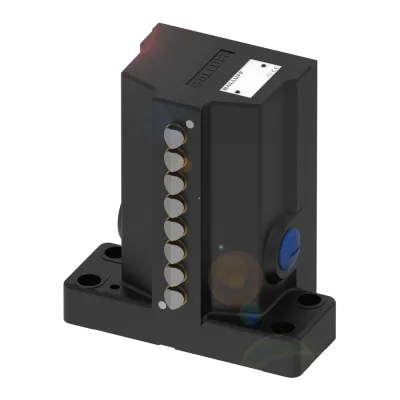

BNS 819-D08-D12-62-10 – Mechanical multiple position limit switches

Balluff

BNS01M0

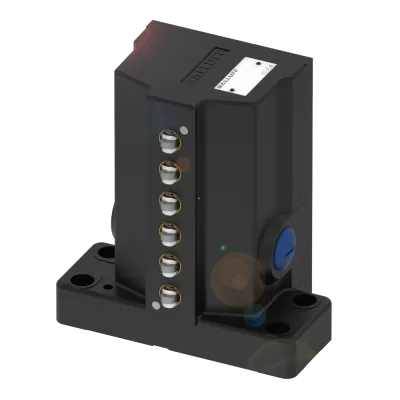

BNS 819-D06-R16-62-10 – Mechanical multiple position limit switches

Balluff

BNS00C0

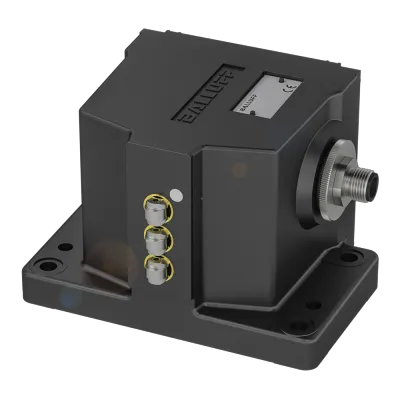

BNS 819-D02-K12-100-10-FE-S80R – Mechanical multiple position limit switches

Balluff

BNS00A7

BNS 819-D02-D12-100-10-FE-S90R – Mechanical multiple position limit switches

Balluff

BNS01YC

BNS 819-B05-D08-40-11-S80S – Mechanical multiple position limit switches

Balluff

BNS00KL

BNS 819-D06-D12-100-10-FD-S90L – Mechanical multiple position limit switches

Balluff

BNS00K8

BNS 819-D05-R12-100-10-FD-S80K – Mechanical multiple position limit switches

Balluff

BNS01YW

BNS 819-B05-D10-46-13-S80S – Mechanical multiple position limit switches

Balluff

BNS00H5

BNS 819-D04-D16-100-10-S80S – Mechanical multiple position limit switches

Balluff

BNS01T3

BNS 819-B03-D08-46-11-S80R – Mechanical multiple position limit switches

Balluff

BNS01R0

BNS 819-B02-K08-46-10-S80R – Mechanical multiple position limit switches

Balluff

BNS00FN

BNS 819-D04-D12-100-10-FD-S90L – Mechanical multiple position limit switches

Balluff

BNS01RY

BNS 819-B03-D08-40-13-S80L – Mechanical multiple position limit switches

Balluff

BNS00FJ

BNS 819-D03-R16-100-10-S80R – Mechanical multiple position limit switches

Balluff

BNS00E5

BNS 819-D03-D16-100-10-S80R – Mechanical multiple position limit switches

Balluff

BNS01UM

BNS 819-B04-D08-40-11-S80S – Mechanical multiple position limit switches

Balluff

BNS01UU

BNS 819-B04-D08-46-11-S80S – Mechanical multiple position limit switches

Balluff

BNS00FF

BNS 819-D03-R16-100-10-FD-S80S – Mechanical multiple position limit switches

Balluff

BNS01KT

BNS 819-D05-D12-62-10-FD-S90R – Mechanical multiple position limit switches

Balluff

BNS01M3

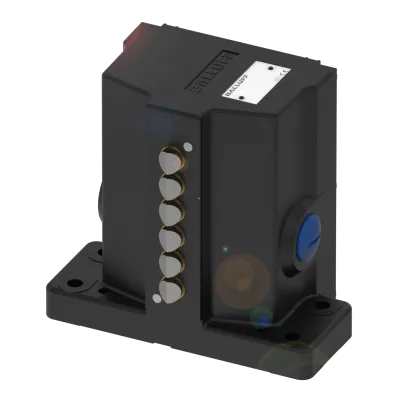

BNS 819-D08-D12-62-10-FD-S90R – Mechanical multiple position limit switches

Balluff

BNS01P4

BNS 819-B02-D08-46-11-S80R – Mechanical multiple position limit switches

Balluff

BNS00HC

BNS 819-D04-E12-100-10-S90L – Mechanical multiple position limit switches

Compare Mechanical multiple position limit switches

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Type designation	Number of switching positions	Continuous current	Approach speed	Dimension
BNS01UT	BNS 819-B04-D08-46-11	4x Chisel	1-4. Switch position: 5 A	1-4. Switch position: 20 m/min	—
BNS01MA	BNS 819-D08-R12-62-10	8x Roller	1-8. Switch position: 6 A	1-8. Switch position: 60 m/min	120 x 130 x 64 mm
BNS01M1	BNS 819-D08-D12-62-10	8x Chisel	1-8. Switch position: 6 A	1-8. Switch position: 40 m/min	120 x 130 x 64 mm
BNS01M0	BNS 819-D06-R16-62-10	6x Roller	1-6. Switch position: 6 A	1-6. Switch position: 60 m/min	120 x 130 x 64 mm
BNS00C0	BNS 819-D02-K12-100-10-FE-S80R	2x Ball	1-2. Switch position: 4 A	1-2. Switch position: 10 m/min	120 x 70 x 85 mm
BNS00A7	BNS 819-D02-D12-100-10-FE-S90R	2x Chisel	1-2. Switch position: 5 A	1-2. Switch position: 40 m/min	120 x 70 x 85 mm
BNS01YC	BNS 819-B05-D08-40-11-S80S	5x Chisel	1-5. Switch position: 0.1 A	1-5. Switch position: 20 m/min	40 x 58 x 48 mm
BNS00KL	BNS 819-D06-D12-100-10-FD-S90L	6x Chisel	1-6. Switch position: 5 A	1-6. Switch position: 40 m/min	120 x 120 x 85 mm
BNS00K8	BNS 819-D05-R12-100-10-FD-S80K	5x Roller	1-5. Switch position: 4 A	1-5. Switch position: 60 m/min	120 x 105 x 85 mm
BNS01YW	BNS 819-B05-D10-46-13-S80S	5x Chisel	1-5. Switch position: 0.1 A	1-5. Switch position: 20 m/min	72 x 72 x 47 mm
BNS00H5	BNS 819-D04-D16-100-10-S80S	4x Chisel	1-4. Switch position: 4 A	1-4. Switch position: 40 m/min	120 x 105 x 83 mm
BNS01T3	BNS 819-B03-D08-46-11-S80R	3x Chisel	1-3. Switch position: 4 A	1-3. Switch position: 20 m/min	72 x 59 x 47 mm
BNS01R0	BNS 819-B02-K08-46-10-S80R	2x Ball	1-2. Switch position: 4 A	1-2. Switch position: 9 m/min	72 x 49 x 47 mm
BNS00FN	BNS 819-D04-D12-100-10-FD-S90L	4x Chisel	1-4. Switch position: 5 A	1-4. Switch position: 40 m/min	120 x 90 x 85 mm
BNS01RY	BNS 819-B03-D08-40-13-S80L	3x Chisel	1-3. Switch position: 0.1 A	1-3. Switch position: 20 m/min	40 x 42 x 48 mm
BNS00FJ	BNS 819-D03-R16-100-10-S80R	3x Roller	1-3. Switch position: 4 A	1-3. Switch position: 60 m/min	120 x 90 x 83 mm
BNS00E5	BNS 819-D03-D16-100-10-S80R	3x Chisel	1-3. Switch position: 4 A	1-3. Switch position: 40 m/min	120 x 90 x 83 mm
BNS01UM	BNS 819-B04-D08-40-11-S80S	4x Chisel	1-4. Switch position: 4 A	1-4. Switch position: 20 m/min	40 x 50 x 48 mm
BNS01UU	BNS 819-B04-D08-46-11-S80S	4x Chisel	1-4. Switch position: 4 A	1-4. Switch position: 20 m/min	72 x 64 x 47 mm
BNS00FF	BNS 819-D03-R16-100-10-FD-S80S	3x Roller	1-3. Switch position: 4 A	1-3. Switch position: 60 m/min	120 x 90 x 85 mm
BNS01KT	BNS 819-D05-D12-62-10-FD-S90R	5x Chisel	1-5. Switch position: 5 A	1-5. Switch position: 40 m/min	120 x 96 x 85.5 mm
BNS01M3	BNS 819-D08-D12-62-10-FD-S90R	8x Chisel	1-8. Switch position: 5 A	1-8. Switch position: 40 m/min	120 x 130 x 85.5 mm
BNS01P4	BNS 819-B02-D08-46-11-S80R	2x Chisel	1-2. Switch position: 4 A	1-2. Switch position: 20 m/min	72 x 49 x 47 mm
BNS00HC	BNS 819-D04-E12-100-10-S90L	4x E-Chisel	1-4. Switch position: 5 A	1-4. Switch position: 30 m/min	120 x 90 x 83 mm

Common to all listed parts

Lifecycle	Active
Product group	Mechanical multiple position limit switches
Version	Snap contact
Installation	Vertical
Approach direction	longitudinal, parallel to attachment surface
Ambient temperature	-5...85 °C
IP rating	IP67
ECLASS 14.0	27-27-06-02
