Home / Sensors / Cam switches / Mechanical multiple position limit switches

Mechanical multiple position limit switches Parts

Balluff

BNS03Z7

BNS 819-D08-E12-62-10-FD-S90R – Mechanical multiple position limit switches

Balluff

BNS01RR

BNS 819-B03-D08-40-11-S4R – Mechanical multiple position limit switches

Balluff

BNS01PT

BNS 819-B02-K08-40-10-S80R – Mechanical multiple position limit switches

Balluff

BNS01RT

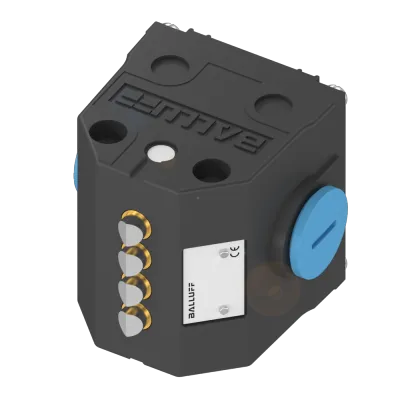

BNS 819-B03-D08-40-11-S80R – Mechanical multiple position limit switches

Balluff

BNS01W9

BNS 819-B04-E08-40-13 – Mechanical multiple position limit switches

Balluff

BNS01TL

BNS 819-B03-E08-40-13 – Mechanical multiple position limit switches

Balluff

BNS01PH

BNS 819-B02-E08-40-11 – Mechanical multiple position limit switches

Balluff

BNS01PL

BNS 819-B02-E08-40-13 – Mechanical multiple position limit switches

Balluff

BNS03Z5

BNS 819-B02-L12-72-10-FD – Mechanical multiple position limit switches

Balluff

BNS03YM

BNS 819-D02-D16-62-10-FD-S80R – Mechanical multiple position limit switches

Balluff

BNS03WL

BNS 819-D04-D12-62-10-S80S – Mechanical multiple position limit switches

Balluff

BNS03WJ

BNS 819-B04-R10-46-12-FC-S80S – Mechanical multiple position limit switches

Balluff

BNS03UP

BNS 819-D08-R12-100-10-FE-S90R – Mechanical multiple position limit switches

Balluff

BNS01H2

BNS 819-D02-D12-62-10 – Mechanical multiple position limit switches

Balluff

BNS01HL

BNS 819-D02-R12-62-10 – Mechanical multiple position limit switches

Balluff

BNS01JP

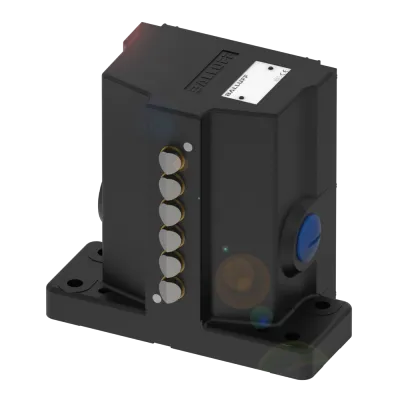

BNS 819-D04-D12-62-10 – Mechanical multiple position limit switches

Balluff

BNS01T2

BNS 819-B03-D08-46-11 – Mechanical multiple position limit switches

Balluff

BNS01P3

BNS 819-B02-D08-46-11 – Mechanical multiple position limit switches

Balluff

BNS01P6

BNS 819-B02-D08-46-13 – Mechanical multiple position limit switches

Balluff

BNS01RH

BNS 819-B02-R08-46-13 – Mechanical multiple position limit switches

Balluff

BNS01P7

BNS 819-B02-D08-46-3B – Mechanical multiple position limit switches

Balluff

BNS01RJ

BNS 819-B02-R08-46-3B – Mechanical multiple position limit switches

Balluff

BNS01W0

BNS 819-B04-D08-46-3B – Mechanical multiple position limit switches

Balluff

BNS01T8

BNS 819-B03-D08-46-3B – Mechanical multiple position limit switches

Compare Mechanical multiple position limit switches

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Type designation	Dimension	Number of switching positions	Operating principle	Continuous current
BNS03Z7	BNS 819-D08-E12-62-10-FD-S90R	120 x 130 x 85.5 mm	8x E-Chisel	1-8. Switch position: Mechanical	1-8. Switch position: 5 A
BNS01RR	BNS 819-B03-D08-40-11-S4R	—	3x Chisel	1-3. Switch position: Mechanical	1-3. Switch position: 4 A
BNS01PT	BNS 819-B02-K08-40-10-S80R	—	2x Ball	1-2. Switch position: Mechanical	1-2. Switch position: 4 A
BNS01RT	BNS 819-B03-D08-40-11-S80R	40 x 42 x 48 mm	3x Chisel	1-3. Switch position: Mechanical	1-3. Switch position: 4 A
BNS01W9	BNS 819-B04-E08-40-13	40 x 50 x 48 mm	4x E-Chisel	1-4. Switch position: Mechanical	1-4. Switch position: 0.1 A
BNS01TL	BNS 819-B03-E08-40-13	40 x 42 x 48 mm	3x E-Chisel	1-3. Switch position: Mechanical	1-3. Switch position: 0.1 A
BNS01PH	BNS 819-B02-E08-40-11	40 x 34 x 48 mm	2x E-Chisel	1-2. Switch position: Mechanical	1-2. Switch position: 5 A
BNS01PL	BNS 819-B02-E08-40-13	40 x 34 x 48 mm	2x E-Chisel	1-2. Switch position: Mechanical	1-2. Switch position: 0.1 A
BNS03Z5	BNS 819-B02-L12-72-10-FD	84 x 90 x 87.5 mm	2x Roller bearing	1-2. Switch position: Mechanical	1-2. Switch position: 6 A
BNS03YM	BNS 819-D02-D16-62-10-FD-S80R	120 x 64 x 85.5 mm	2x Chisel	1-2. Switch position: Mechanical	1-2. Switch position: 4 A
BNS03WL	BNS 819-D04-D12-62-10-S80S	120 x 84 x 62 mm	4x Chisel	1-4. Switch position: Mechanical	1-4. Switch position: 4 A
BNS03WJ	BNS 819-B04-R10-46-12-FC-S80S	72 x 72 x 49 mm	4x Roller	1-4. Switch position: Mechanical	1-4. Switch position: 4 A
BNS03UP	BNS 819-D08-R12-100-10-FE-S90R	120 x 140 x 85 mm	8x Roller	1-8. Switch position: Mechanical	1-8. Switch position: 5 A
BNS01H2	BNS 819-D02-D12-62-10	120 x 64 x 64 mm	2x Chisel	1-2. Switch position: Mechanical	1-2. Switch position: 6 A
BNS01HL	BNS 819-D02-R12-62-10	120 x 64 x 64 mm	2x Roller	1-2. Switch position: Mechanical	1-2. Switch position: 6 A
BNS01JP	BNS 819-D04-D12-62-10	120 x 84 x 64 mm	4x Chisel	1-4. Switch position: Mechanical	1-4. Switch position: 6 A
BNS01T2	BNS 819-B03-D08-46-11	72 x 59 x 47 mm	3x Chisel	1-3. Switch position: Mechanical	1-3. Switch position: 5 A
BNS01P3	BNS 819-B02-D08-46-11	72 x 49 x 47 mm	2x Chisel	1-2. Switch position: Mechanical	1-2. Switch position: 5 A
BNS01P6	BNS 819-B02-D08-46-13	72 x 49 x 47 mm	2x Chisel	1-2. Switch position: Mechanical	1-2. Switch position: 0.1 A
BNS01RH	BNS 819-B02-R08-46-13	72 x 49 x 47 mm	2x Roller	1-2. Switch position: Mechanical	1-2. Switch position: 0.1 A
BNS01P7	BNS 819-B02-D08-46-3B	72 x 58 x 58 mm	2x Chisel	1-2. Switch position: Mechanical	1-2. Switch position: 0.1 A
BNS01RJ	BNS 819-B02-R08-46-3B	72 x 49 x 58 mm	2x Roller	1-2. Switch position: Mechanical	1-2. Switch position: 0.1 A
BNS01W0	BNS 819-B04-D08-46-3B	72 x 64 x 58 mm	4x Chisel	1-4. Switch position: Mechanical	1-4. Switch position: 0.1 A
BNS01T8	BNS 819-B03-D08-46-3B	72 x 59 x 58 mm	3x Chisel	1-3. Switch position: Mechanical	1-3. Switch position: 0.1 A

Common to all listed parts

Lifecycle	Active
Product group	Mechanical multiple position limit switches
Version	Snap contact
Installation	Vertical
Ambient temperature	-5...85 °C
IP rating	IP67
ECLASS 14.0	27-27-06-02
ETIM 9.0	EC001829
