Beckhoff
IL2300-B518Coupler Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, Ø8 – CANopen, IP-Link
I/O service products (discontinued) Parts
Beckhoff
IL2300-B510Coupler Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, Ø8 – CANopen, IP-Link
Beckhoff
IL2300-B400Coupler Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, Ø8 – Interbus, IP-Link
Beckhoff

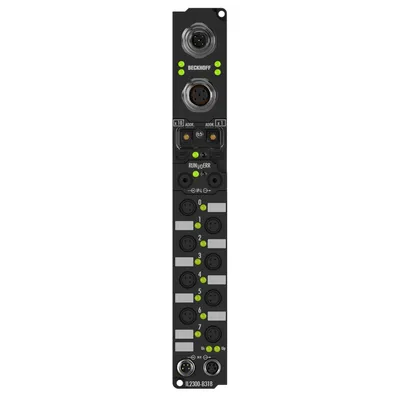

IL2300-B318Coupler Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, Ø8 – PROFIBUS, IP-Link
Beckhoff
IL2300-B310Coupler Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, Ø8 – PROFIBUS, IP-Link
Beckhoff
IL2300-B200Coupler Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, Ø8 – Lightbus, IP-Link
Beckhoff
IL2300-B110Coupler Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, Ø8 – EtherCAT, IP-Link
Beckhoff

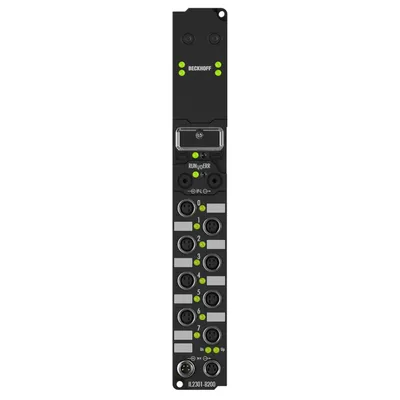

IL2301-B200Coupler Box, 4-channel digital input + 4-channel digital output, Lightbus, 24 V DC, 3 ms, 0.5 A, M8
Beckhoff

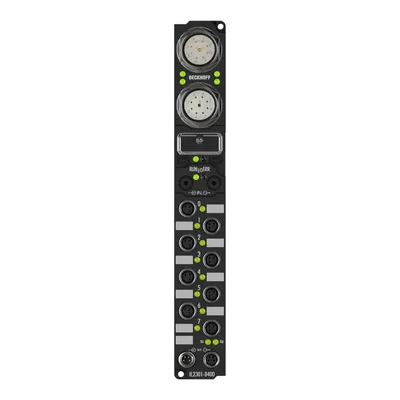

IL2301-B400Coupler Box, 4-channel digital input + 4-channel digital output, Interbus, 24 V DC, 3 ms, 0.5 A, M8
Beckhoff
IL2301-B730Coupler Box, 4-channel digital input + 4-channel digital output, Modbus, 24 V DC, 3 ms, 0.5 A, M8
Beckhoff

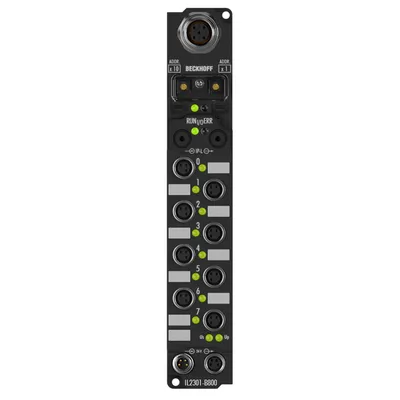

IL2301-B800Coupler Box, 4-channel digital input + 4-channel digital output, RS485, 24 V DC, 3 ms, 0.5 A, M8
Beckhoff
IL2301-B810Coupler Box, 4-channel digital input + 4-channel digital output, RS232, 24 V DC, 3 ms, 0.5 A, M8
Beckhoff

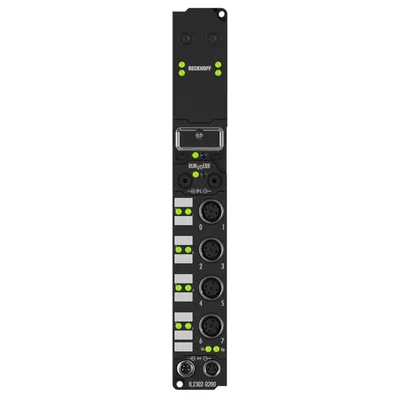

IL2302-B200Coupler Box, 4-channel digital input + 4-channel digital output, Lightbus, 24 V DC, 3 ms, 0.5 A, M12
Beckhoff

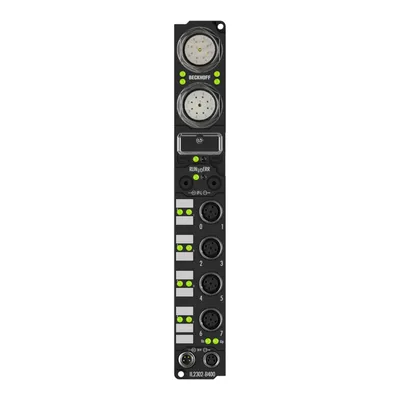

IL2302-B400Coupler Box, 4-channel digital input + 4-channel digital output, Interbus, 24 V DC, 3 ms, 0.5 A, M12
Beckhoff
IL2302-B730Coupler Box, 4-channel digital input + 4-channel digital output, Modbus, 24 V DC, 3 ms, 0.5 A, M12
Beckhoff

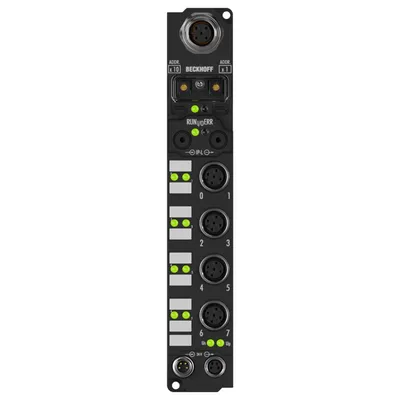

IL2302-B800Coupler Box, 4-channel digital input + 4-channel digital output, RS485, 24 V DC, 3 ms, 0.5 A, M12

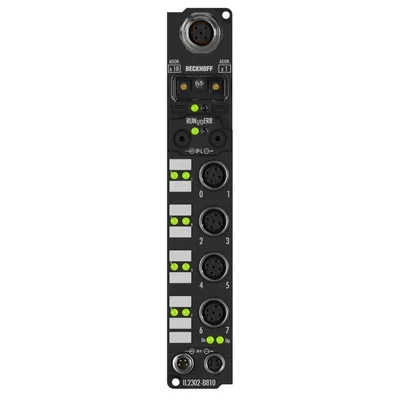

Beckhoff
IL2302-B810Coupler Box, 4-channel digital input + 4-channel digital output, RS232, 24 V DC, 3 ms, 0.5 A, M12
Beckhoff
IL2301-C900PLC Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M8 – Ethernet, IP-Link
Beckhoff
IL2301-C810PLC Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M8 – RS232, IP-Link
Beckhoff

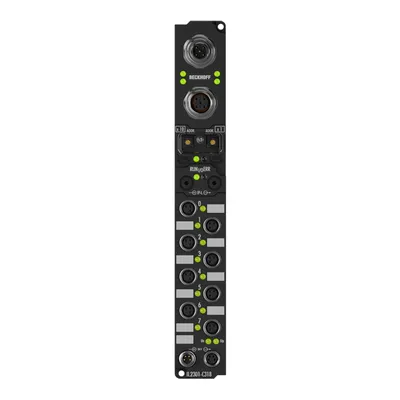

IL2301-C318PLC Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M8 – PROFIBUS, IP-Link
Beckhoff
IL2301-C310PLC Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M8 – PROFIBUS, IP-Link
Beckhoff
IL2302-C900PLC Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M12 – Ethernet, IP-Link
Beckhoff
IL2302-C810PLC Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M12 – RS232, IP-Link
Beckhoff
IL2302-C318PLC Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M12 – PROFIBUS, IP-Link
Compare I/O service products (discontinued)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Input/output connections | Digital peripheral signals | Analog peripheral signals | Weight | Protocol |
|---|---|---|---|---|---|
| IL2301-B200 | M8, screw type | max. 960 inputs and 960 outputs | max. 124 inputs and 124 outputs | approx. 250 g | — |
| IL2301-B400 | M8, screw type | max. 512 inputs and 512 outputs | max. 28 inputs and 28 outputs | approx. 350 g | — |
| IL2301-B730 | M8, screw type | max. 960 inputs and 960 outputs | max. 255 inputs and 255 outputs | approx. 210 g | RTU/ASCII |
| IL2301-B800 | M8, screw type | max. 960 inputs and 960 outputs | max. 252 inputs and 252 outputs | — | open, documented protocol |
| IL2301-B810 | M8, screw type | max. 960 inputs and 960 outputs | max. 252 inputs and 252 outputs | approx. 210 g | open, documented protocol |
| IL2302-B200 | M12, screw type | max. 960 inputs and 960 outputs | max. 124 inputs and 124 outputs | approx. 250 g | — |
| IL2302-B400 | M12, screw type | max. 512 inputs and 512 outputs | max. 28 inputs and 28 outputs | approx. 350 g | — |
| IL2302-B730 | M12, screw type | max. 960 inputs and 960 outputs | max. 255 inputs and 255 outputs | approx. 210 g | RTU/ASCII |
| IL2302-B800 | M12, screw type | max. 960 inputs and 960 outputs | max. 252 inputs and 252 outputs | — | open, documented protocol |
| IL2302-B810 | M12, screw type | max. 960 inputs and 960 outputs | max. 252 inputs and 252 outputs | approx. 210 g | open, documented protocol |
Common to all listed parts
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
| Specification | EN 61131-2, type 2 |
| Number of channels | 4 inputs + 4 outputs |
| Input filter | 3.0 ms |
| “0” signal voltage | -3…+5 V |
| “1” signal voltage | 11…30 V, 6 mA input current (EN 61131-2, type 2) |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Load type | ohmic, inductive, lamp load |
