I/O service products (discontinued) Parts

Beckhoff

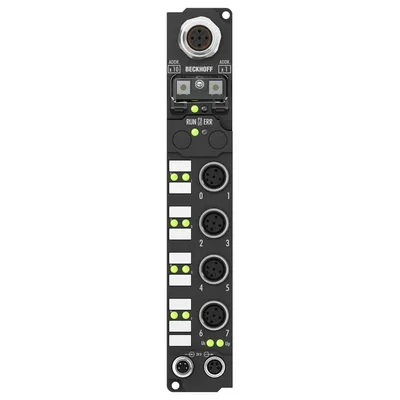

IP4112-B810

Fieldbus Box, 4-channel analog output, RS232, current, 0/4…20 mA, 16 bit, single-ended, M12

Beckhoff

IP6002-B200

Fieldbus Box, 2-channel communication interface, Lightbus, serial, RS232, M12

Beckhoff

IP6002-B400

Fieldbus Box, 2-channel communication interface, Interbus, serial, RS232, M12

Beckhoff

IP6002-B730

Fieldbus Box, 2-channel communication interface, Modbus, serial, RS232, M12

Beckhoff

IP6002-B800

Fieldbus Box, 2-channel communication interface, RS485, serial, RS232, M12

Beckhoff

IP6002-B810

Fieldbus Box, 2-channel communication interface, RS232, serial, RS232, M12

Beckhoff

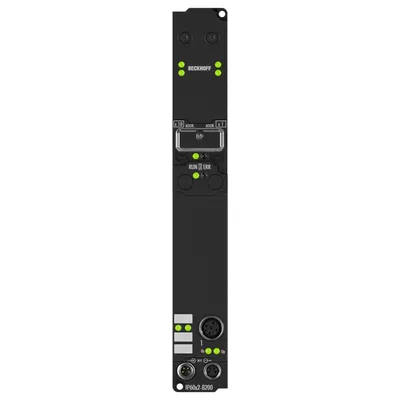

IP6012-B200

Fieldbus Box, 2-channel communication interface, Lightbus, serial, TTY, 20 mA, M12

Beckhoff

IP6012-B400

Fieldbus Box, 2-channel communication interface, Interbus, serial, TTY, 20 mA, M12

Beckhoff

IP6012-B730

Fieldbus Box, 2-channel communication interface, Modbus, serial, TTY, 20 mA, M12

Beckhoff

IP6012-B800

Fieldbus Box, 2-channel communication interface, RS485, serial, TTY, 20 mA, M12

Beckhoff

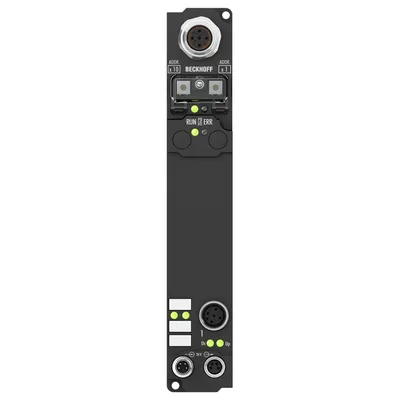

IP6012-B810

Fieldbus Box, 2-channel communication interface, RS232, serial, TTY, 20 mA, M12

Beckhoff

IP6022-B200

Fieldbus Box, 2-channel communication interface, Lightbus, serial, RS422/RS485, M12

Beckhoff

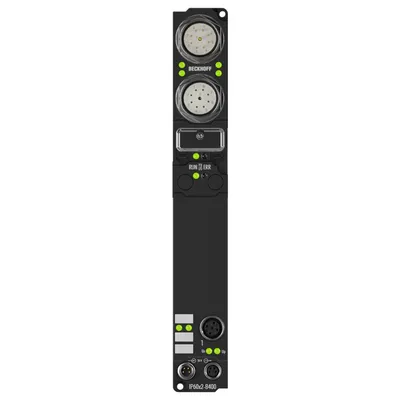

IP6022-B400

Fieldbus Box, 2-channel communication interface, Interbus, serial, RS422/RS485, M12

Beckhoff

IP6022-B730

Fieldbus Box, 2-channel communication interface, Modbus, serial, RS422/RS485, M12

Beckhoff

IP6022-B800

Fieldbus Box, 2-channel communication interface, RS485, serial, RS422/RS485, M12

Beckhoff

IP6022-B810

Fieldbus Box, 2-channel communication interface, RS232, serial, RS422/RS485, M12

Beckhoff

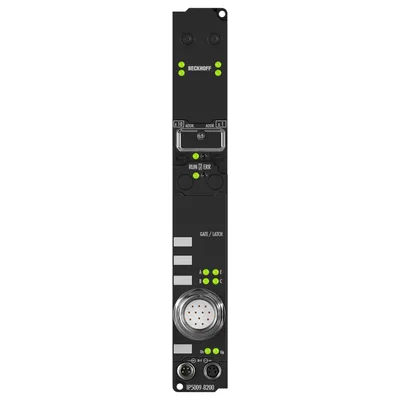

IP5009-B200

Fieldbus Box, 1-channel encoder interface, Lightbus, SSI, M23

Beckhoff

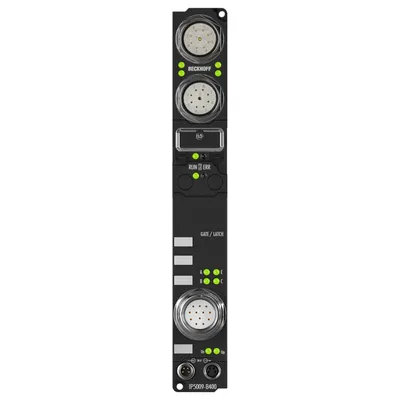

IP5009-B400

Fieldbus Box, 1-channel encoder interface, Interbus, SSI, M23

Beckhoff

IP5009-B730

Fieldbus Box, 1-channel encoder interface, Modbus, SSI, M23

Beckhoff

IP5009-B800

Fieldbus Box, 1-channel encoder interface, RS485, SSI, M23

Beckhoff

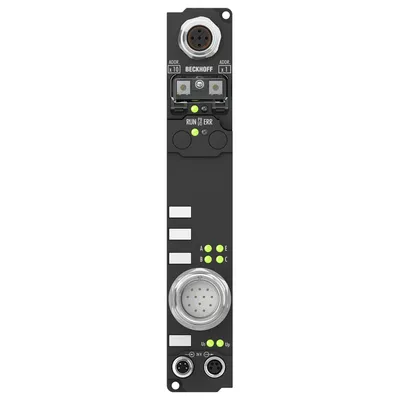

IP5009-B810

Fieldbus Box, 1-channel encoder interface, RS232, SSI, M23

Beckhoff

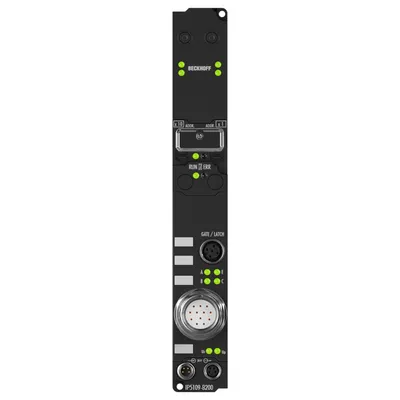

IP5109-B200

Fieldbus Box, 1-channel encoder interface, Lightbus, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz, M23

Beckhoff

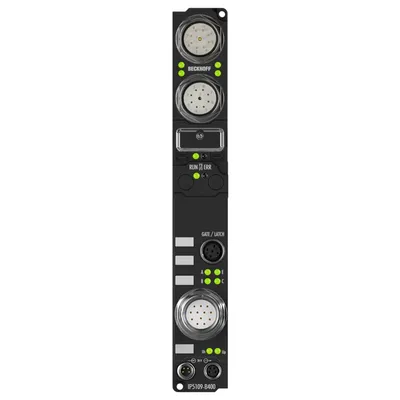

IP5109-B400

Fieldbus Box, 1-channel encoder interface, Interbus, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz, M23

Beckhoff

IP5109-B730

Fieldbus Box, 1-channel encoder interface, Modbus, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz, M23

Compare I/O service products (discontinued)

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Nominal voltage	Weight	Data transfer channels	Bit transfer	Cable length
IP4112-B810	24 V DC	approx. 210 g	—	—	—
IP6002-B200	24 V DC (-15%/+20%)	approx. 250 g	2 (1/1), TxD and RxD, full duplex	RS232 (EIA-232)	max. 15 m
IP6002-B400	24 V DC (-15%/+20%)	approx. 350 g	2 (1/1), TxD and RxD, full duplex	RS232 (EIA-232)	max. 15 m
IP6002-B730	24 V DC (-15%/+20%)	approx. 210 g	2 (1/1), TxD and RxD, full duplex	RS232 (EIA-232)	max. 15 m
IP6002-B800	24 V DC (-15%/+20%)	approx. 210 g	2 (1/1), TxD and RxD, full duplex	RS232 (EIA-232)	max. 15 m
IP6002-B810	24 V DC (-15%/+20%)	approx. 210 g	2 (1/1), TxD and RxD, full duplex	RS232 (EIA-232)	max. 15 m
IP6012-B200	24 V DC (-15%/+20%)	approx. 250 g	2 (1/1), TxD and RxD	2 x 20 mA	max. 1000 m twisted pair
IP6012-B400	24 V DC (-15%/+20%)	approx. 350 g	2 (1/1), TxD and RxD	2 x 20 mA	max. 1000 m twisted pair
IP6012-B730	24 V DC (-15%/+20%)	approx. 210 g	2 (1/1), TxD and RxD	2 x 20 mA	max. 1000 m twisted pair
IP6012-B800	24 V DC (-15%/+20%)	approx. 210 g	2 (1/1), TxD and RxD	2 x 20 mA	max. 1000 m twisted pair
IP6012-B810	24 V DC (-15%/+20%)	approx. 210 g	2 (1/1), TxD and RxD	2 x 20 mA	max. 1000 m twisted pair
IP6022-B200	24 V DC (-15%/+20%)	approx. 250 g	TxD and RxD, full/half duplex	RS422/RS485	max. 500 m twisted pair
IP6022-B400	24 V DC (-15%/+20%)	approx. 350 g	TxD and RxD, full/half duplex	RS422/RS485	max. 500 m twisted pair
IP6022-B730	24 V DC (-15%/+20%)	approx. 210 g	TxD and RxD, full/half duplex	RS422/RS485	max. 500 m twisted pair
IP6022-B800	24 V DC (-15%/+20%)	approx. 210 g	TxD and RxD, full/half duplex	RS422/RS485	max. 500 m twisted pair
IP6022-B810	24 V DC (-15%/+20%)	approx. 210 g	TxD and RxD, full/half duplex	RS422/RS485	max. 500 m twisted pair
IP5009-B200	24 V DC (-15%/+20%)	approx. 250 g	—	—	—
IP5009-B400	24 V DC (-15%/+20%)	approx. 350 g	—	—	—
IP5009-B730	24 V DC (-15%/+20%)	approx. 210 g	—	—	—
IP5009-B800	24 V DC (-15%/+20%)	approx. 210 g	—	—	—
IP5009-B810	24 V DC (-15%/+20%)	approx. 210 g	—	—	—
IP5109-B200	24 V DC (-15%/+20%)	approx. 250 g	—	—	—
IP5109-B400	24 V DC (-15%/+20%)	approx. 350 g	—	—	—
IP5109-B730	24 V DC (-15%/+20%)	approx. 210 g	—	—	—

Common to all listed parts

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Current consumption from U S (without sensor current)	see documentation
Extension modules	–
Digital peripheral signals	according to I/O type
Analog peripheral signals	according to I/O type
Auxiliary power current	according to I/O type
Operating temperature	0…55°C
Storage temperature	-25…+85°C
