Beckhoff

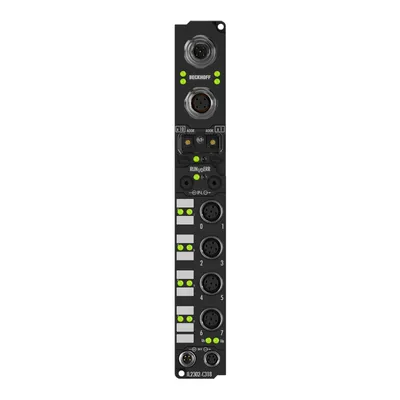

IL2302-C310PLC Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M12 – PROFIBUS, IP-Link
I/O service products (discontinued) Parts
Beckhoff
IP4132-B200Fieldbus Box, 4-channel analog output, Lightbus, voltage, ±10 V, 16 bit, differential, M12
Beckhoff

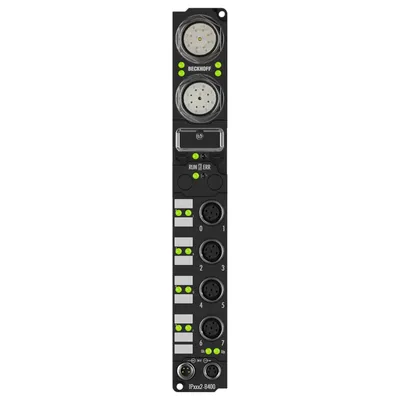

IP4132-B400Fieldbus Box, 4-channel analog output, Interbus, voltage, ±10 V, 16 bit, differential, M12
Beckhoff

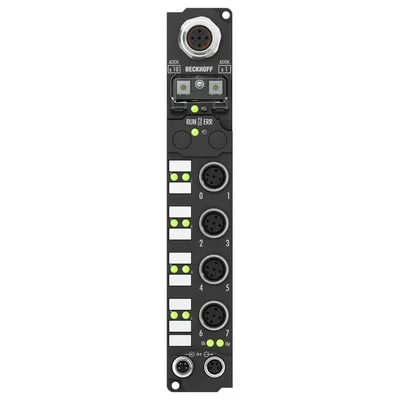

IP4132-B730Fieldbus Box, 4-channel analog output, Modbus, voltage, ±10 V, 16 bit, differential, M12
Beckhoff
IP4132-B800Fieldbus Box, 4-channel analog output, RS485, voltage, ±10 V, 16 bit, differential, M12
Beckhoff
IP4132-B810Fieldbus Box, 4-channel analog output, RS232, voltage, ±10 V, 16 bit, differential, M12
Beckhoff

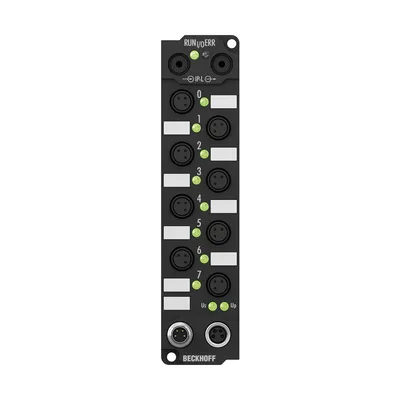

IE2300Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, Ø8
Beckhoff
IE2310Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 0.5 A, Ø8
Beckhoff
IE2320Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, Ø8
Beckhoff
IE2330Extension Box, 4-channel digital input + 4-channel digital output, 24 V DC, 0.2 ms, 2 A, Ø8
Beckhoff
IE2400Extension Box, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, Ø8
Beckhoff

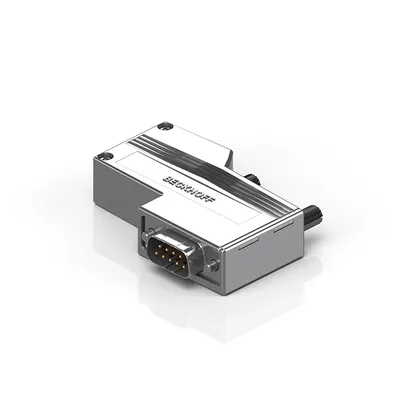

ZS1031-3000PROFIBUS, Modbus, D-sub connector, up to 12 Mbaud with resistive terminator (other design as ZB3100)
Beckhoff

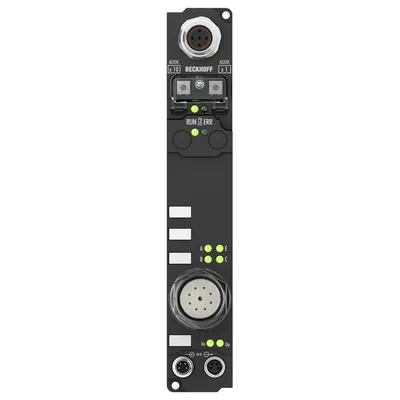

IP5209-B318-1000Fieldbus Box, 1-channel encoder interface, PROFIBUS, SinCos, 11 µApp, M23, integrated T-connector
Beckhoff
IP5209-B528-1000Fieldbus Box, 1-channel encoder interface, DeviceNet®, SinCos, 11 µApp, M23, integrated T-connector
Compare I/O service products (discontinued)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of channels | Current consumption from U S (without sensor current) | Auxiliary power current | Storage temperature |
|---|---|---|---|---|
| IP4132-B200 | 4 analog outputs | see documentation | according to I/O type | -25…+85°C |
| IP4132-B400 | 4 analog outputs | see documentation | according to I/O type | -25…+85°C |
| IP4132-B730 | 4 analog outputs | see documentation | according to I/O type | -25…+85°C |
| IP4132-B800 | 4 analog outputs | see documentation | according to I/O type | -25…+85°C |
| IP4132-B810 | 4 analog outputs | see documentation | according to I/O type | -25…+85°C |
| IE1000 | — | 25 mA | — | -25…+85°C |
| IE1010 | — | 25 mA | — | -25…+85°C |
| IE2000 | — | 25 mA | typ. 20 mA per channel | -25…+85°C |
| IE2020 | — | 25 mA | typ. 30 mA per channel | -25…+85°C |
| IE2040 | — | 25 mA | typ. 50 mA per channel | -25…+85°C |
| IE2300 | 4 inputs + 4 outputs | 25 mA | typ. 20 mA per channel | -25…+85°C |
| IE2310 | 4 inputs + 4 outputs | 25 mA | typ. 20 mA per channel | -25…+85°C |
| IE2320 | 4 inputs + 4 outputs | 25 mA | typ. 30 mA per channel | -25…+85°C |
| IE2330 | 4 inputs + 4 outputs | 25 mA | typ. 30 mA per channel | -25…+85°C |
| IE2400 | 8 inputs + 8 outputs | 25 mA | typ. 20 mA per channel | -45…+85°C |
| ZS1051-3000 | — | — | — | — |
| ZS1031-3000 | — | — | — | — |
| IP5209-B200-1000 | 1 | 130 mA | according to I/O type | -25…+85°C |
| IP5209-B310-1000 | 1 | 130 mA | according to I/O type | -25…+85°C |
| IP5209-B318-1000 | 1 | 130 mA | according to I/O type | -25…+85°C |
| IP5209-B400-1000 | 1 | 130 mA | according to I/O type | -25…+85°C |
| IP5209-B520-1000 | 1 | 130 mA | according to I/O type | -25…+85°C |
| IP5209-B528-1000 | 1 | 130 mA | according to I/O type | -25…+85°C |
Common to all listed parts
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
