I/O service products (discontinued) Parts

Beckhoff

IP3102-B200

Fieldbus Box, 4-channel analog input, Lightbus, voltage, ±10 V, 16 bit, differential, M12

Beckhoff

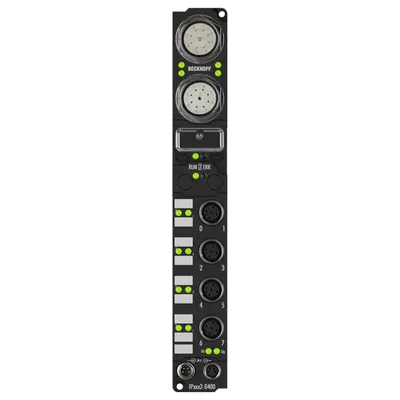

IP3102-B400

Fieldbus Box, 4-channel analog input, Interbus, voltage, ±10 V, 16 bit, differential, M12

Beckhoff

IP3102-B730

Fieldbus Box, 4-channel analog input, Modbus, voltage, ±10 V, 16 bit, differential, M12

Beckhoff

IP3102-B800

Fieldbus Box, 4-channel analog input, RS485, voltage, ±10 V, 16 bit, differential, M12

Beckhoff

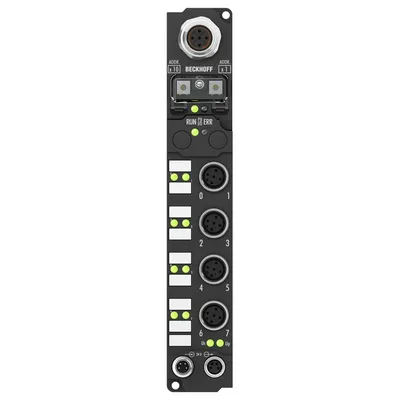

IP3102-B810

Fieldbus Box, 4-channel analog input, RS232, voltage, ±10 V, 16 bit, differential, M12

Beckhoff

IP3112-B200

Fieldbus Box, 4-channel analog input, Lightbus, current, 0/4…20 mA, 16 bit, differential, M12

Beckhoff

IP3112-B400

Fieldbus Box, 4-channel analog input, Interbus, current, 0/4…20 mA, 16 bit, differential, M12

Beckhoff

IP3112-B730

Fieldbus Box, 4-channel analog input, Modbus, current, 0/4…20 mA, 16 bit, differential, M12

Beckhoff

IP3112-B800

Fieldbus Box, 4-channel analog input, RS485, current, 0/4…20 mA, 16 bit, differential, M12

Beckhoff

IP3112-B810

Fieldbus Box, 4-channel analog input, RS232, current, 0/4…20 mA, 16 bit, differential, M12

Beckhoff

IP3202-B200

Fieldbus Box, 4-channel analog input, Lightbus, temperature, RTD (Pt100), 16 bit, M12

Beckhoff

IP3202-B400

Fieldbus Box, 4-channel analog input, Interbus, temperature, RTD (Pt100), 16 bit, M12

Beckhoff

IP3202-B730

Fieldbus Box, 4-channel analog input, Modbus, temperature, RTD (Pt100), 16 bit, M12

Beckhoff

IP3202-B800

Fieldbus Box, 4-channel analog input, RS485, temperature, RTD (Pt100), 16 bit, M12

Beckhoff

IP3202-B810

Fieldbus Box, 4-channel analog input, RS232, temperature, RTD (Pt100), 16 bit, M12

Beckhoff

IP3312-B200

Fieldbus Box, 4-channel analog input, Lightbus, temperature, thermocouple, M12

Beckhoff

IP3312-B400

Fieldbus Box, 4-channel analog input, Interbus, temperature, thermocouple, M12

Beckhoff

IP3312-B730

Fieldbus Box, 4-channel analog input, Modbus, temperature, thermocouple, M12

Beckhoff

IP3312-B800

Fieldbus Box, 4-channel analog input, RS485, temperature, thermocouple, M12

Beckhoff

IP3312-B810

Fieldbus Box, 4-channel analog input, RS232, temperature, thermocouple, M12

Beckhoff

IP4112-B200

Fieldbus Box, 4-channel analog output, Lightbus, current, 0/4…20 mA, 16 bit, single-ended, M12

Beckhoff

IP4112-B400

Fieldbus Box, 4-channel analog output, Interbus, current, 0/4…20 mA, 16 bit, single-ended, M12

Beckhoff

IP4112-B730

Fieldbus Box, 4-channel analog output, Modbus, current, 0/4…20 mA, 16 bit, single-ended, M12

Beckhoff

IP4112-B800

Fieldbus Box, 4-channel analog output, RS485, current, 0/4…20 mA, 16 bit, single-ended, M12

Compare I/O service products (discontinued)

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Measurement error/uncertainty	Conversion time	Nominal voltage	Input filter	Weight
IP3102-B200	< ±0.3% (relative to full scale value)	250 ms, configurable to 5 ms	24 V DC (-15%/+20%)	configurable	approx. 250 g
IP3102-B400	< ±0.3% (relative to full scale value)	250 ms, configurable to 5 ms	24 V DC (-15%/+20%)	configurable	approx. 350 g
IP3102-B730	< ±0.3% (relative to full scale value)	250 ms, configurable to 5 ms	24 V DC (-15%/+20%)	configurable	approx. 210 g
IP3102-B800	< ±0.3% (relative to full scale value)	250 ms, configurable to 5 ms	24 V DC (-15%/+20%)	configurable	approx. 210 g
IP3102-B810	< ±0.3% (relative to full scale value)	250 ms, configurable to 5 ms	24 V DC (-15%/+20%)	configurable	approx. 210 g
IP3112-B200	< ±0.3% (relative to full scale value)	250 ms, configurable to 5 ms	24 V DC (-15%/+20%)	configurable	approx. 250 g
IP3112-B400	< ±0.3% (relative to full scale value)	250 ms, configurable to 5 ms	24 V DC (-15%/+20%)	configurable	approx. 350 g
IP3112-B730	< ±0.3% (relative to full scale value)	250 ms, configurable to 5 ms	24 V DC (-15%/+20%)	configurable	approx. 210 g
IP3112-B800	< ±0.3% (relative to full scale value)	250 ms, configurable to 5 ms	24 V DC (-15%/+20%)	configurable	approx. 210 g
IP3112-B810	< ±0.3% (relative to full scale value)	250 ms, configurable to 5 ms	24 V DC (-15%/+20%)	configurable	approx. 210 g
IP3202-B200	< ±1°C	approx. 250 ms, configurable up to 65 ms	24 V DC (-15%/+20%)	5 variations, configurable	approx. 250 g
IP3202-B400	< ±1°C	approx. 250 ms, configurable up to 65 ms	24 V DC (-15%/+20%)	5 variations, configurable	approx. 350 g
IP3202-B730	< ±1°C	approx. 250 ms, configurable up to 65 ms	24 V DC (-15%/+20%)	5 variations, configurable	approx. 210 g
IP3202-B800	< ±1°C	approx. 250 ms, configurable up to 65 ms	24 V DC (-15%/+20%)	5 variations, configurable	approx. 210 g
IP3202-B810	< ±1°C	approx. 250 ms, configurable up to 65 ms	24 V DC (-15%/+20%)	5 variations, configurable	approx. 210 g
IP3312-B200	< ±0.5% (relative to full scale value)	approx. 250 ms, configurable up to 70 ms	24 V DC (-15%/+20%)	5 variations, configurable	approx. 250 g
IP3312-B400	< ±0.5% (relative to full scale value)	approx. 250 ms, configurable up to 70 ms	24 V DC (-15%/+20%)	5 variations, configurable	approx. 350 g
IP3312-B730	< ±0.5% (relative to full scale value)	approx. 250 ms, configurable up to 70 ms	24 V DC (-15%/+20%)	5 variations, configurable	approx. 210 g
IP3312-B800	< ±0.5% (relative to full scale value)	approx. 250 ms, configurable up to 70 ms	24 V DC (-15%/+20%)	5 variations, configurable	approx. 210 g
IP3312-B810	< ±0.5% (relative to full scale value)	approx. 250 ms, configurable up to 70 ms	24 V DC (-15%/+20%)	5 variations, configurable	approx. 210 g
IP4112-B200	< ±0.1% (relative to full scale value)	< 4 ms	24 V DC	—	approx. 250 g
IP4112-B400	< ±0.1% (relative to full scale value)	< 4 ms	24 V DC	—	approx. 350 g
IP4112-B730	< ±0.1% (relative to full scale value)	< 4 ms	24 V DC	—	approx. 210 g
IP4112-B800	< ±0.1% (relative to full scale value)	< 4 ms	24 V DC	—	approx. 210 g

Common to all listed parts

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Current consumption from U S (without sensor current)	see documentation
Extension modules	–
Digital peripheral signals	according to I/O type
Analog peripheral signals	according to I/O type
Auxiliary power current	according to I/O type
Operating temperature	0…55°C
Storage temperature	-25…+85°C
