Beckhoff IP3312-B730

Q: Can I still buy the IP3312-B730 now that it is discontinued?

Yes. Beckhoff has discontinued the IP3312-B730, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

Q: When can IP3312-B730 be shipped?

IP3312-B730 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up IP3312-B730 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for IP3312-B730 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IP3312-B730, subject to availability and destination.

Fieldbus Box, 4-channel analog input, Modbus, temperature, thermocouple, M12

MPN: IP3312-B730
Category: I/O service products (discontinued)

Price and lead time confirmed within 1 business day

Discontinued by Beckhoff — we can still source the original IP3312-B730 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

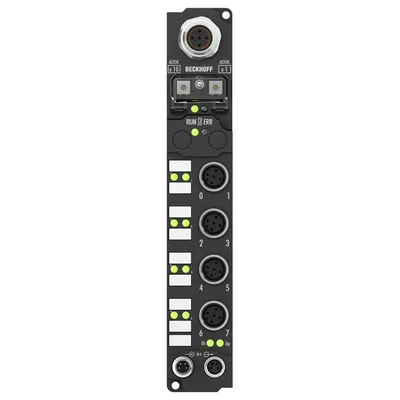

What is the Beckhoff IP3312-B730?

The IP3312 analog input module permits four thermocouples to be directly connected. The module’s circuit can operate thermocouple sensors using the 2-wire technique. Linearization over the full temperature range is realized with the aid of a

Beckhoff IP3312-B730 — Fieldbus Box, 4-channel analog input, Modbus, temperature, thermocouple, M12. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Number of inputs	4
Input connections	M12, screw type
Connection method	M12 socket, 2-wire connection for thermocouple
Sensor types	types J, K, L, B, E, N, R, S, T, U (default setting type K), mV measurement
Measuring range	depending on sensor type; preset value is type K, -100…+1370°C
Resolution	0.1°C per digit
Measurement error/uncertainty	< ±0.5% (relative to full scale value)
Conversion time	approx. 250 ms, configurable up to 70 ms
Nominal voltage	24 V DC (-15%/+20%)
Input filter	5 variations, configurable
Current consumption from U S (without sensor current)	see documentation
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	input: 4 x 16 bit data, optional: 4 x 8 bit control/status
Electrical isolation	channels/control voltage: 500 V, between the channels: no, control voltage/fieldbus: depends on the bus system
Extension modules	–
Digital peripheral signals	according to I/O type
Analog peripheral signals	according to I/O type
Protocol	RTU/ASCII
Configuration	by means of address selection switch or KS2000
Data transfer rates	150, 300, 600, 1200, 2400, 4800, 9600, 19,200, 38,400 baud
Bus interface	1 x M12 socket, 5-pin, B-coded
Data transfer medium	screened, twisted copper cable 2 x 0.25 mm² (RS485)
Power supply	control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type
Box supply current	45 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current	according to I/O type
Distance between stations	max. 1200 m (depending on baud rate)
Operating modes	read/write access, optionally bit oriented or word oriented
Weight	approx. 210 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
