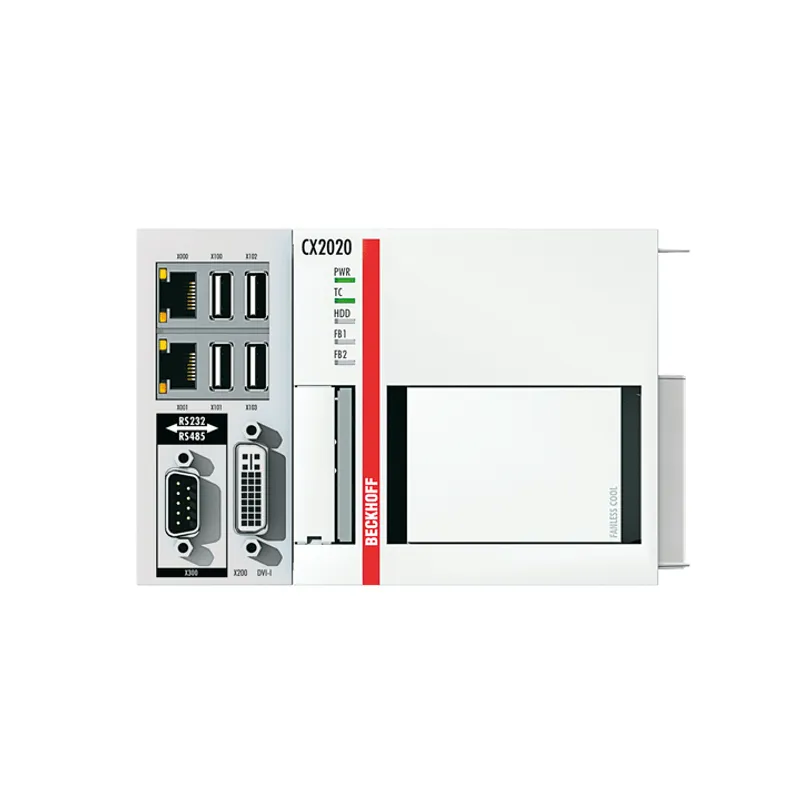

Beckhoff CX2020-N031
RS485 interface, D-sub socket, 9-pin, configuration as an end point, without echo, termination on
- MPN
- CX2020-N031
Price and lead time confirmed within 1 business day
Discontinued by Beckhoff — we can still source the original CX2020-N031 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff CX2020-N031?
The CX2020 has a 1.4 GHz Intel® Celeron® CPU, it is fanless and has no rotating components. In addition to the CPU and chipset, the CX2020 also contains the main memory with 2 GB RAM as standard. 4 GB is possible as an option. The controller boots from
Beckhoff CX2020-N031 — RS485 interface, D-sub socket, 9-pin, configuration as an end point, without echo, termination on. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.
Specifications
Technical data
| Product family | CX2020 – Basic CPU module |
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
| Processor | Intel ® Celeron ® 827E 1.4 GHz |
| Number of cores | 1 |
| Flash memory | 20 GB or 40 GB CFast flash card (depending on the operating system), optionally extendable |
| Main memory | 2 GB DDR3 RAM (expandable ex factory to 4 GB) |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface |
| Cooling | passive, optionally with active cooling ex factory |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 10 IoT Enterprise 2016 LTSB, TwinCAT/BSD |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | via power supply module (E-bus or K-bus, automatic recognition) |
| Power supply | 24 V DC (-15%/+20%) |
| NOVRAM | 128 kB |
| Max. power consumption | 21 W |
| Weight | approx. 1160 g |
| Dimensions (W x H x D) | 144 mm x 99 mm x 91 mm |
| Relative humidity | 95%, no condensation |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
| Approvals/markings | CE, UL |
| TwinCAT 3 platform level | Performance Plus (50); please see here for an overview of all the TwinCAT 3 platform level |
CX2020-N031: frequently asked questions
Can I still buy the CX2020-N031 now that it is discontinued?
Yes. Beckhoff has discontinued the CX2020-N031, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can CX2020-N031 be shipped?
CX2020-N031 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CX2020-N031 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CX2020-N031 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX2020-N031, subject to availability and destination.
