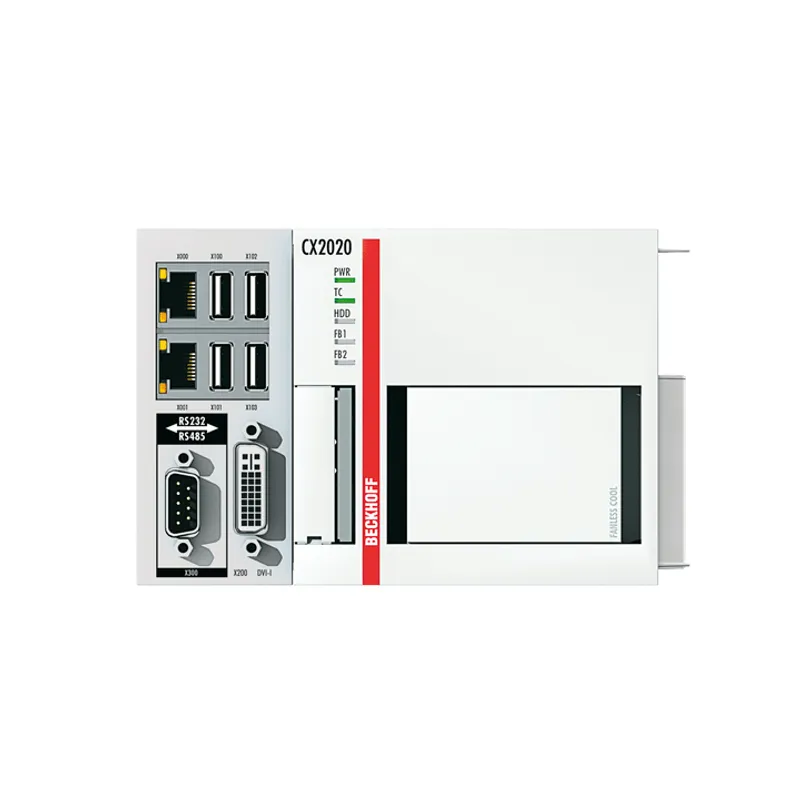

Beckhoff CX2020-B110

EtherCAT slave interface, EtherCAT IN and OUT (2 x RJ45)

MPN: CX2020-B110
Category: IPC service products (discontinued)

Price and lead time confirmed within 1 business day

Discontinued by Beckhoff — we can still source the original CX2020-B110 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff CX2020-B110?

The CX2020 has a 1.4 GHz Intel® Celeron® CPU, it is fanless and has no rotating components. In addition to the CPU and chipset, the CX2020 also contains the main memory with 2 GB RAM as standard. 4 GB is possible as an option. The controller boots from

Beckhoff CX2020-B110 — EtherCAT slave interface, EtherCAT IN and OUT (2 x RJ45). Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Product family	CX2020 – Basic CPU module
Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Processor	Intel ® Celeron ® 827E 1.4 GHz
Number of cores	1
Flash memory	20 GB or 40 GB CFast flash card (depending on the operating system), optionally extendable
Main memory	2 GB DDR3 RAM (expandable ex factory to 4 GB)
Interfaces	2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface
Cooling	passive, optionally with active cooling ex factory
Diagnostics LED	1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock	internal battery-backed clock for time and date (battery exchangeable)
Operating system	Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 10 IoT Enterprise 2016 LTSB, TwinCAT/BSD
Control software	TwinCAT 2 runtime TwinCAT 3 runtime (XAR)
I/O connection	via power supply module (E-bus or K-bus, automatic recognition)
Power supply	24 V DC (-15%/+20%)
NOVRAM	128 kB
Max. power consumption	21 W
Weight	approx. 1160 g
Dimensions (W x H x D)	144 mm x 99 mm x 91 mm
Relative humidity	95%, no condensation
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL
TwinCAT 3 platform level	Performance Plus (50); please see here for an overview of all the TwinCAT 3 platform level

CX2020-B110: frequently asked questions

Can I still buy the CX2020-B110 now that it is discontinued?

Yes. Beckhoff has discontinued the CX2020-B110, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can CX2020-B110 be shipped?

CX2020-B110 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CX2020-B110 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CX2020-B110 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX2020-B110, subject to availability and destination.
