IPC service products (discontinued) Parts
Beckhoff
CX2020-0125CPU module, Microsoft Windows Embedded Standard 7 P, 32 bit, TwinCAT 3 runtime (XAR), no licenses included
Beckhoff
CX2020-0123CPU module, Microsoft Windows Embedded Standard 7 P, 32 bit, TwinCAT 2 NC I runtime
Beckhoff
CX2020-0122CPU module, Microsoft Windows Embedded Standard 7 P, 32 bit, TwinCAT 2 NC runtime
Beckhoff
CX2020-0121CPU module, Microsoft Windows Embedded Standard 7 P, 32 bit, TwinCAT 2 PLC runtime
Beckhoff
CX2020-0115CPU module, Microsoft Windows Embedded Compact 7, TwinCAT 3 runtime (XAR), no licenses included
Beckhoff
CX2040-N031-0004RS422 interface, D-sub socket, 9-pin, configuration as full duplex end point, termination on
Beckhoff
CX2040-N031-0003RS485 interface, D-sub socket, 9-pin, configuration as drop point, with echo, termination off
Beckhoff

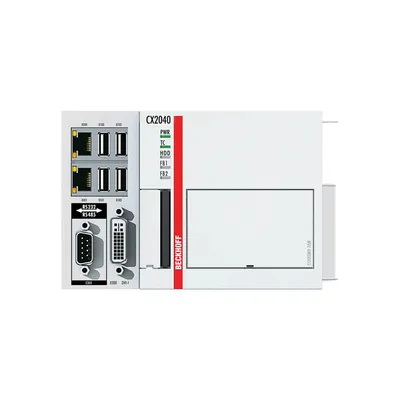

CX2040-N031-0002RS485 interface, D-sub socket, 9-pin, configuration as drop point, without echo, termination off
Compare IPC service products (discontinued)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Processor | Number of cores | Max. power consumption | Weight |
|---|---|---|---|---|---|
| CX2020-0130 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2020-0125 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2020-0123 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2020-0122 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2020-0121 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2020-0120 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2020-0115 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2020-0113 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |

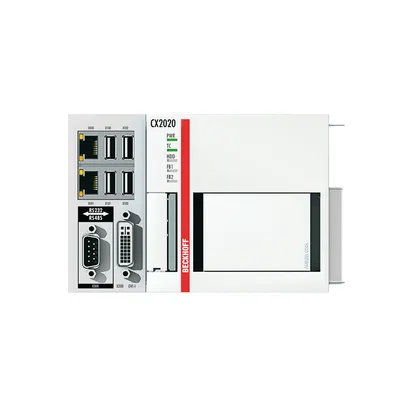

| CX2020-0112 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2020-0111 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2020-0110 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2020-0100 | CX2020 – Basic CPU module | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2020 | — | Intel ® Celeron ® 827E 1.4 GHz | 1 | 21 W | approx. 1160 g |
| CX2040-B930 | CX2040 – Basic CPU module | Intel ® Core™ i7 2715QE 2.1 GHz | 4 | 32 W | approx. 1230 g |
| CX2040-M930 | CX2040 – Basic CPU module | Intel ® Core™ i7 2715QE 2.1 GHz | 4 | 32 W | approx. 1230 g |
| CX2040-B510 | CX2040 – Basic CPU module | Intel ® Core™ i7 2715QE 2.1 GHz | 4 | 32 W | approx. 1230 g |
| CX2040-M510 | CX2040 – Basic CPU module | Intel ® Core™ i7 2715QE 2.1 GHz | 4 | 32 W | approx. 1230 g |
| CX2040-B310 | CX2040 – Basic CPU module | Intel ® Core™ i7 2715QE 2.1 GHz | 4 | 32 W | approx. 1230 g |
| CX2040-M310 | CX2040 – Basic CPU module | Intel ® Core™ i7 2715QE 2.1 GHz | 4 | 32 W | approx. 1230 g |
| CX2040-B110 | CX2040 – Basic CPU module | Intel ® Core™ i7 2715QE 2.1 GHz | 4 | 32 W | approx. 1230 g |
| CX2040-M112 | CX2040 – Basic CPU module | Intel ® Core™ i7 2715QE 2.1 GHz | 4 | 32 W | approx. 1230 g |
| CX2040-N031-0004 | CX2040 – Basic CPU module | Intel ® Core™ i7 2715QE 2.1 GHz | 4 | 32 W | approx. 1230 g |
| CX2040-N031-0003 | CX2040 – Basic CPU module | Intel ® Core™ i7 2715QE 2.1 GHz | 4 | 32 W | approx. 1230 g |
| CX2040-N031-0002 | CX2040 – Basic CPU module | Intel ® Core™ i7 2715QE 2.1 GHz | 4 | 32 W | approx. 1230 g |
Common to all listed parts
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | via power supply module (E-bus or K-bus, automatic recognition) |
| Power supply | 24 V DC (-15%/+20%) |
| NOVRAM | 128 kB |
