Radar Sensors for Entrance Automation Parts
Compare Radar Sensors for Entrance Automation
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | MTTFd | Power consumption | Mass | Width |
|---|---|---|---|---|---|

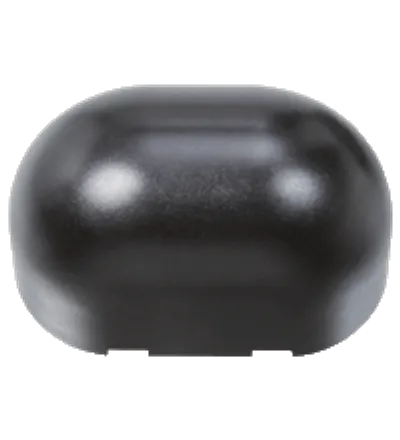

| RaDec-D-NA | 258909 | 300 a | ≤ 1.7 W P0 | 130 g | 101 mm |

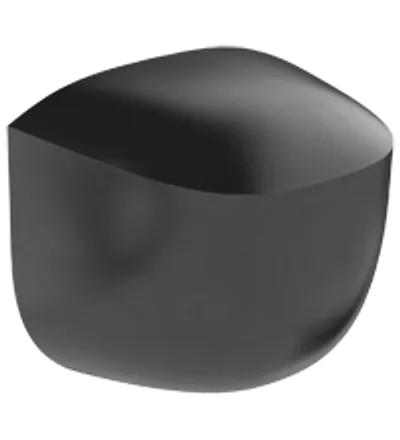

| ECHO-D-NA black | 70144548 | 696 a | ≤ 1.32 W P0 | approx. 70 g | 75 mm |
| ECHO-D-NA black narrow | 70151735 | 696 a | ≤ 1.32 W P0 | approx. 70 g | 75 mm |

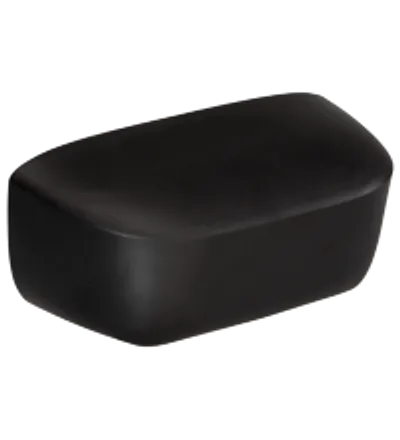

| RaCon-D-BLE-NA BK | 70171141 | 400 a | ≤ 0.96 W ≤ 1.2 VA P0 | approx. 120 g | 120 mm |
| RaCon-D-BLE BK | 70171139 | 400 a | ≤ 0.96 W ≤ 1.2 VA P0 | approx. 120 g | 120 mm |
| RaCon-D-NA BK | 70158825 | 520 a | ≤ 0.85 W ≤ 1 VA P0 | approx. 120 g | 120 mm |

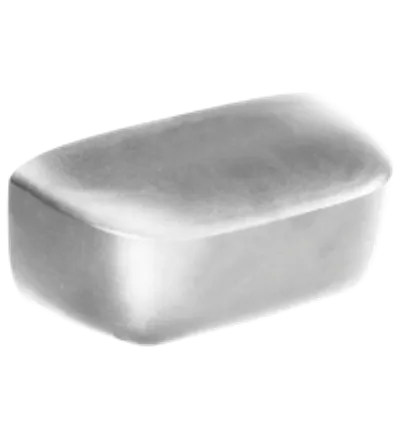

| RaCon-D SI | 70158824 | 520 a | ≤ 0.85 W ≤ 1 VA P0 | approx. 120 g | 120 mm |

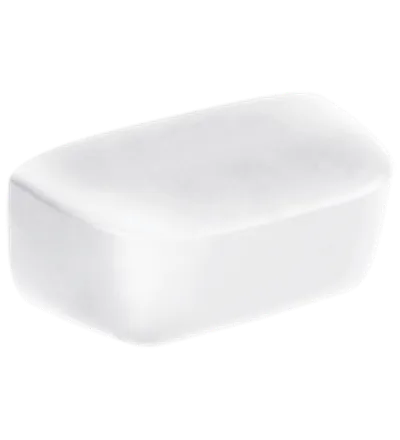

| RaCon-D WH | 70158823 | 520 a | ≤ 0.85 W ≤ 1 VA P0 | approx. 120 g | 120 mm |
| RaCon-D BK | 70158822 | 520 a | ≤ 0.85 W ≤ 1 VA P0 | approx. 120 g | 120 mm |

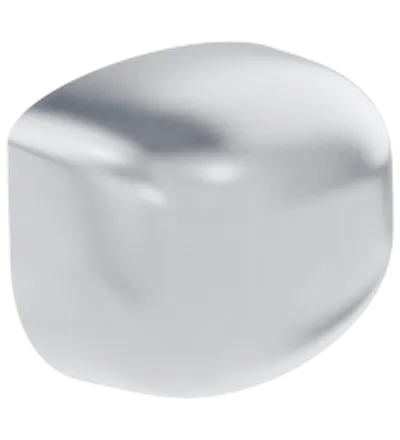

| ECHO-M silver | 70131935 | 766 a | ≤ 1.2 W P0 | approx. 70 g | — |

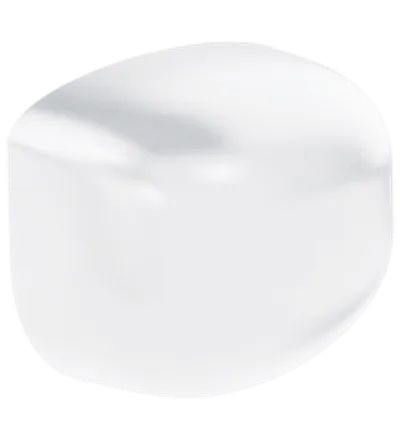

| ECHO-M white | 70131934 | 766 a | ≤ 1.2 W P0 | approx. 70 g | — |
| ECHO-M white narrow | 70131937 | 766 a | ≤ 1.2 W P0 | approx. 70 g | — |
| ECHO-M silver narrow | 70131939 | 766 a | ≤ 1.2 W P0 | approx. 70 g | — |

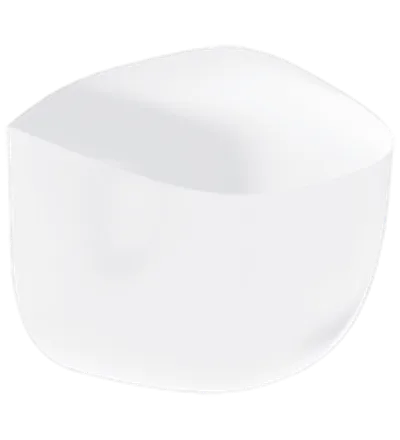

| ECHO-D white | 70133580 | — | ≤ 1.32 W P0 | approx. 70 g | 75 mm |
| ECHO-D white narrow | 70154120 | 696 a | ≤ 1.32 W P0 | approx. 70 g | 75 mm |

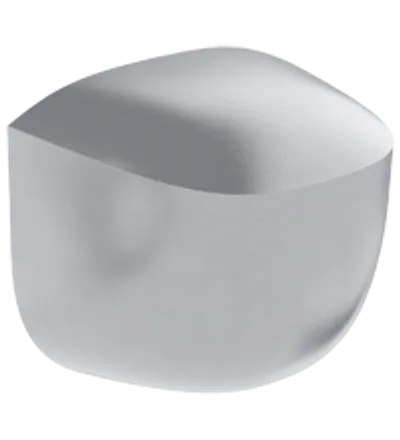

| ECHO-D silver narrow | 70154119 | 696 a | ≤ 1.32 W P0 | approx. 70 g | 75 mm |
| ECHO-D silver | 70133581 | — | ≤ 1.32 W P0 | approx. 70 g | 75 mm |

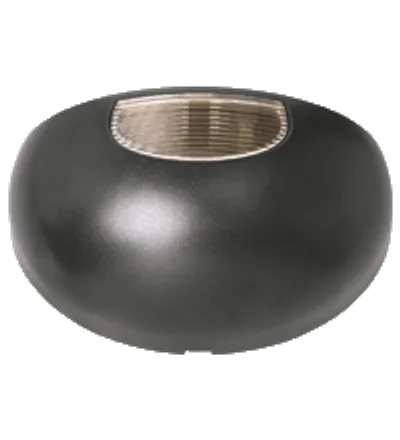

| RMS-D-RC-NA1 | 70126424 | 640 a | ≤ 1.2 W at 24 V DC ≤ 1.7 W at 36 V DC P0 | 120 g | 123 mm |

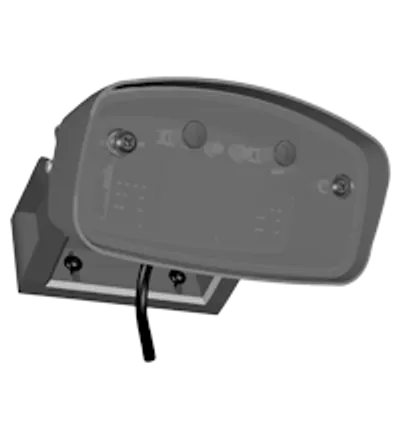

| RAVE-D-NA1 | 70126423 | 620 a | ≤ 1 W P0 | 650 g | 131 mm |
| ECHO-D black narrow | 70145712 | 696 a | ≤ 1.32 W P0 | approx. 70 g | 75 mm |

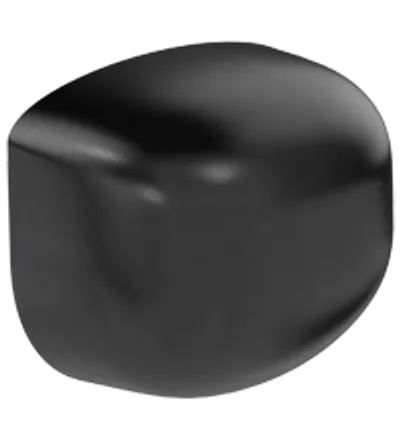

| ECHO-M black narrow | 70131936 | 766 a | ≤ 1.2 W P0 | approx. 70 g | — |
| ECHO-D black | 70133579 | — | ≤ 1.32 W P0 | approx. 70 g | 75 mm |
| ECHO-M black | 70131931 | 766 a | ≤ 1.2 W P0 | approx. 70 g | — |

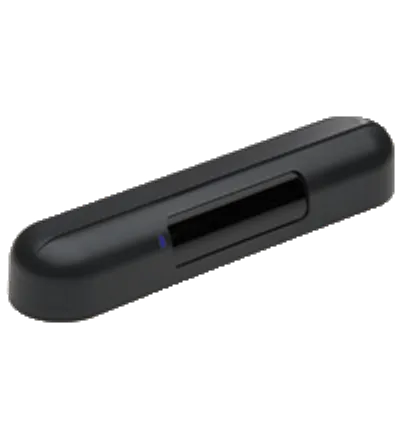

| MotionScan | 285849 | 339.83 a | 2.5 VA P0 | approx. 260 g | 265 mm |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
