Radar motion sensor. Basic radar motion sensor, Detection of people and objects for automatic doors, Simplest adjustment of the sensing range, Wall and ceiling mountable, Function: Open, Sensor principle: Radar sensor, Operating voltage: 12 ... 24 V DC ± 10 %, Signal output: solid-state relay, Connection: cable Adapter 35 mm included with delivery ; for conductor cross section 0.2 ... 0.5 mm<sup>2</sup>. Sensing range: 2000 x 4000 mm (DxW) at 2200 mm mounting height and 30° inclination angle. Function principle: Microwave module. Detection speed: min. 0.1 m/s. Setting angle: . Rotation angle-40 ... 40 ° in 5 ° incrementsInclination angle0 ... 90 ° in 5 ° increments: . Rotation angle: -40 ... 40 ° in 5 ° increments. Inclination angle: 0 ... 90 ° in 5 ° increments. Operating frequency: 24.15 ... 24.25 GHz K-Band. Operating mode: Radar motion sensor. Transmitter radiated power (EIRP): < 13 dBm. MTTFd: 766 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: detection : LED green push button indication : LED yellow. Control elements: sensitivity adjustment with push button. Operating voltage: 12 ... 24 V DC ± 10 %. No-load supply current: ≤ 50 mA at 24 V DC. Power consumption: ≤ 1.2 W. Switching type: Normally open (NO). Signal output: solid-state relay. Switching voltage: max. 28 V AC / 36 V DC. Switching current: max. 0.1 A AC / 0.1 A DC. Hold time: 1.5 s. CE conformity: 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed.. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: max. 90 % non-condensing. Mounting height: max. 3 m. Degree of protection: IP54. Connection: cable Adapter 35 mm included with delivery ; for conductor cross section 0.2 ... 0.5 mm2. Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Mass: approx. 70 g. Dimensions: 75 mm x 64 mm x 44 mm
Specifications
General specifications
| Sensing range | 2000 x 4000 mm (DxW) at 2200 mm mounting height and 30° inclination angle |
| Function principle | Microwave module |
| Detection speed | min. 0.1 m/s |
| Setting angle | |
| Rotation angle-40 ... 40 ° in 5 ° incrementsInclination angle0 ... 90 ° in 5 ° increments | Rotation angle |
| Rotation angle | -40 ... 40 ° in 5 ° increments |
| Inclination angle | 0 ... 90 ° in 5 ° increments |
| Operating frequency | 24.15 ... 24.25 GHz K-Band |
| Operating mode | Radar motion sensor |
| Transmitter radiated power (EIRP) | < 13 dBm |
Functional safety related parameters
| MTTFd | 766 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Function indicator | detection : LED green push button indication : LED yellow |
| Control elements | sensitivity adjustment with push button |
Electrical specifications
| Operating voltage | 12 ... 24 V DC ± 10 % UB |
| No-load supply current | ≤ 50 mA at 24 V DC I0 |
| Power consumption | ≤ 1.2 W P0 |
Output
| Switching type | Normally open (NO) |
| Signal output | solid-state relay |
| Switching voltage | max. 28 V AC / 36 V DC |
| Switching current | max. 0.1 A AC / 0.1 A DC |
| Hold time | 1.5 s |
Approvals and certificates
| CE conformity | 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed. |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Operating temperature | -20 ... 55 °C (-4 ... 131 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Relative humidity | max. 90 % non-condensing |
Mechanical specifications
| Mounting height | max. 3 m |
| Degree of protection | IP54 |
| Connection | cable Adapter 35 mm included with delivery ; for conductor cross section 0.2 ... 0.5 mm2 |
| Material | |
| HousingPC (Polycarbonate) | Housing |
| Housing | PC (Polycarbonate) |
| Mass | approx. 70 g |

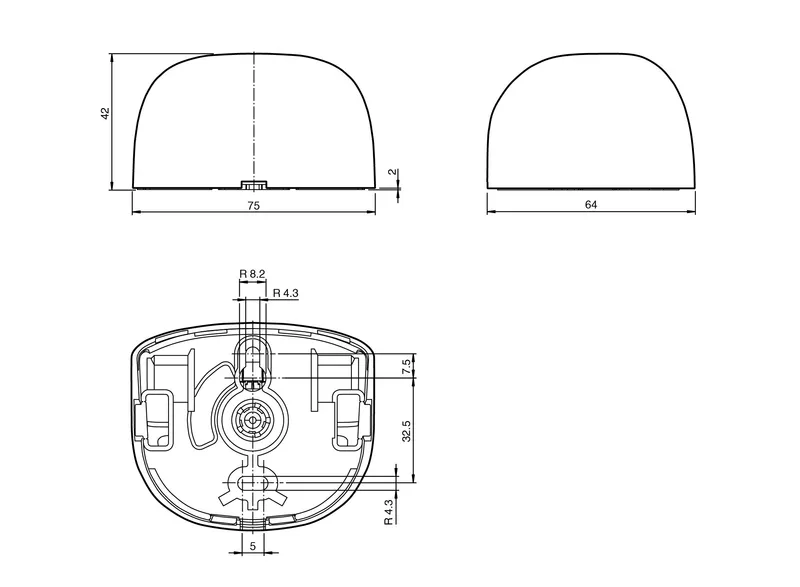

| Dimensions | 75 mm x 64 mm x 44 mm |
