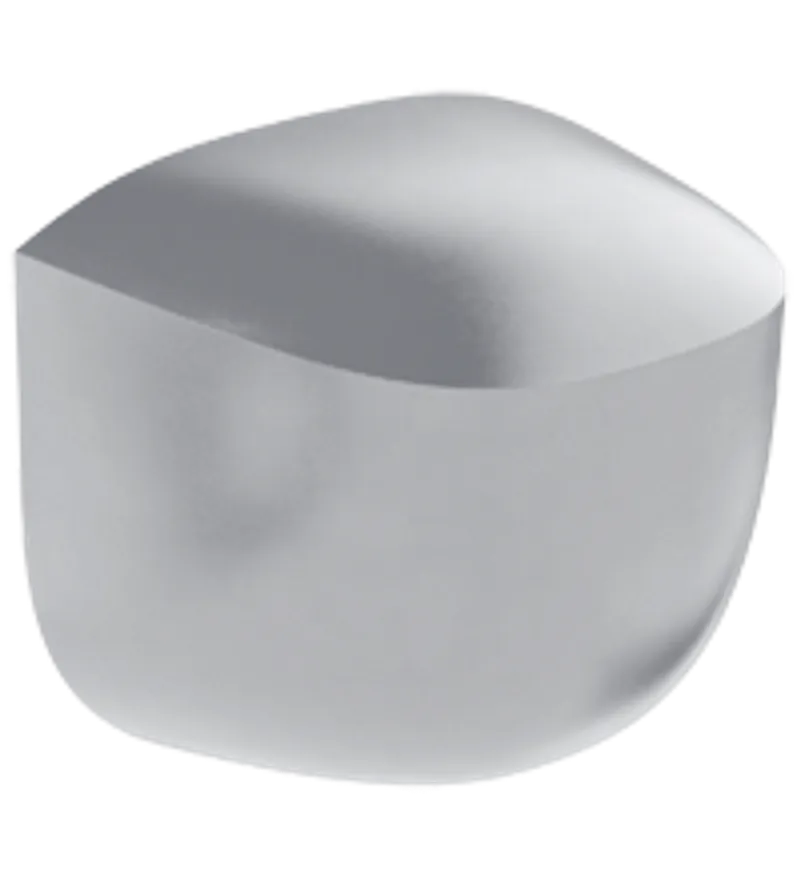

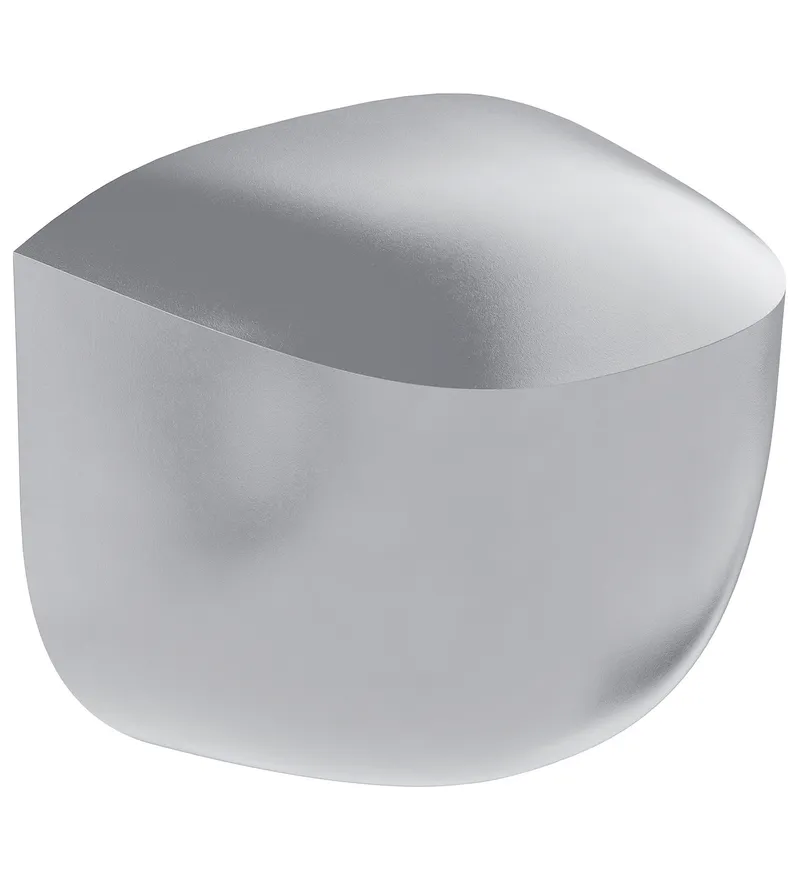

Pepperl Fuchs ECHO-D silver
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Radar Sensors for Entrance Automation |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ECHO-D silver be shipped?
ECHO-D silver is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECHO-D silver in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECHO-D silver and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECHO-D silver, subject to availability and destination.
Radar motion sensor. Standard radar motion sensor, Detection of people and objects for automatic doors, Bidirectional sensing and adjustment of detection field, Remote control or push button for functionality setting, Wall and ceiling mountable, Function: Open, Sensor principle: Radar sensor, Operating voltage: 12 ... 24 V DC ± 10 %, Signal output: solid-state relay, Connection: Connecting cable 2.5 m included with delivery. Sensing range: 2000 x 4500 mm (DxW) at 2200 mm mounting height and 30° inclination angle. Function principle: Microwave module. Detection speed: min. 0.05 m/s. Setting angle: . Rotation angle-40 ... 40 ° in 5 ° incrementsInclination angle0 ... 90 ° in 5 ° increments: . Rotation angle: -40 ... 40 ° in 5 ° increments. Inclination angle: 0 ... 90 ° in 5 ° increments. Operating frequency: 24.15 ... 24.25 GHz K-Band. Operating mode: Radar motion sensor. Transmitter radiated power (EIRP): < 13 dBm. MTTFd: . Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: detection : LED green push button indication : LED yellow / green. Control elements: Push button for selection of operating modes : sensitivity , direction detection , cross-traffic suppression , slow-motion mode , relay switching type , hold time , immunity. Operating voltage: 12 ... 24 V DC ± 10 %. No-load supply current: ≤ 55 mA at 24 V DC. Power consumption: ≤ 1.32 W. Switching type: Normally open/closed (NO/NC). Signal output: solid-state relay. Switching voltage: max. 28 V AC / 36 V DC. Switching current: max. 0.1 A AC / 0.1 A DC. Hold time: 1.5 s / 3 s. CE conformity: 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed.. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: -20 ... 55 °C (-4 ... 131 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: max. 90 % non-condensing. Mounting height: max. 4 m. Degree of protection: IP54. Connection: Connecting cable 2.5 m included with delivery. Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Mass: approx. 70 g. Dimensions: 75 mm x 64 mm x 50 mm. Height64 mmWidth75 mmDepth50 mm: . Height: 64 mm. Width: 75 mm. Depth: 50 mm
Specifications
General specifications
| Sensing range | 2000 x 4500 mm (DxW) at 2200 mm mounting height and 30° inclination angle |
| Function principle | Microwave module |
| Detection speed | min. 0.05 m/s |
| Setting angle | |
| Rotation angle-40 ... 40 ° in 5 ° incrementsInclination angle0 ... 90 ° in 5 ° increments | Rotation angle |
| Rotation angle | -40 ... 40 ° in 5 ° increments |
| Inclination angle | 0 ... 90 ° in 5 ° increments |
| Operating frequency | 24.15 ... 24.25 GHz K-Band |
| Operating mode | Radar motion sensor |
| Transmitter radiated power (EIRP) | < 13 dBm |
Functional safety related parameters
| MTTFd | |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Function indicator | detection : LED green push button indication : LED yellow / green |
| Control elements | Push button for selection of operating modes : sensitivity , direction detection , cross-traffic suppression , slow-motion mode , relay switching type , hold time , immunity |
Electrical specifications
| Operating voltage | 12 ... 24 V DC ± 10 % UB |
| No-load supply current | ≤ 55 mA at 24 V DC I0 |
| Power consumption | ≤ 1.32 W P0 |

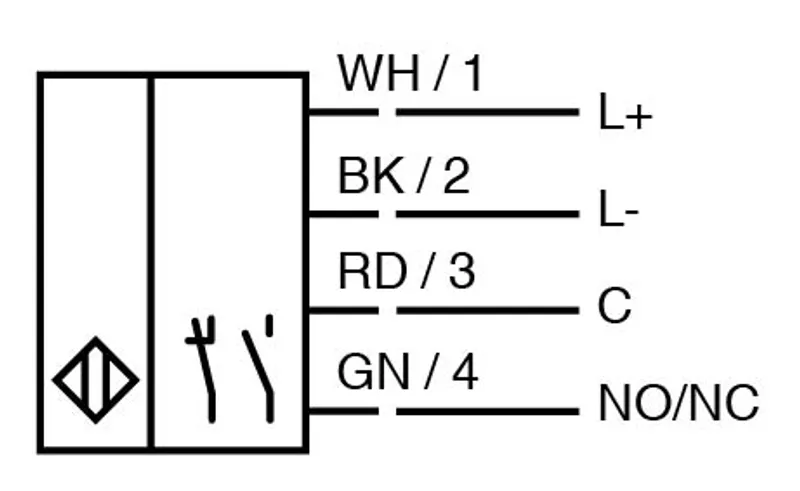

Output
| Switching type | Normally open/closed (NO/NC) |
| Signal output | solid-state relay |
| Switching voltage | max. 28 V AC / 36 V DC |
| Switching current | max. 0.1 A AC / 0.1 A DC |
| Hold time | 1.5 s / 3 s |
Approvals and certificates
| CE conformity | 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed. |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Operating temperature | -20 ... 55 °C (-4 ... 131 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Relative humidity | max. 90 % non-condensing |
Mechanical specifications
| Mounting height | max. 4 m |
| Degree of protection | IP54 |
| Connection | Connecting cable 2.5 m included with delivery |
| Material | |
| HousingPC (Polycarbonate) | Housing |
| Housing | PC (Polycarbonate) |
| Mass | approx. 70 g |
| Dimensions | 75 mm x 64 mm x 50 mm |
| Height64 mmWidth75 mmDepth50 mm | Height |
| Height | 64 mm |
| Width | 75 mm |
| Depth | 50 mm |
