Pulse Counter Units and Displays Parts
Compare Pulse Counter Units and Displays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Mass | Dimensions | Power consumption |
|---|---|---|---|---|---|

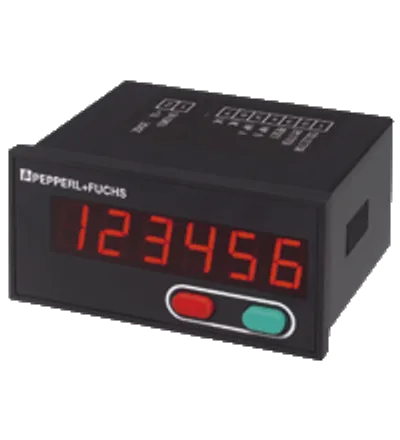

| KC-LED-96-1T-24VDC | 215124 | 10 ... 30 V DC UB | approx. 140 g | 96 mm x 48 mm x 89.4 mm | — |

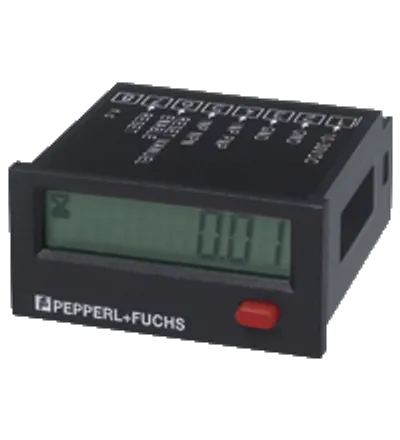

| KH-LCD-24-24VDC | 215123 | 10 ... 30 V DC UB | approx. 40 g | 48 mm x 24 mm x 53.5 mm | — |
| KC-LCD-24-24VDC | 215122 | 10 ... 30 V DC UB | approx. 40 g | 48 mm x 24 mm x 53.5 mm | — |

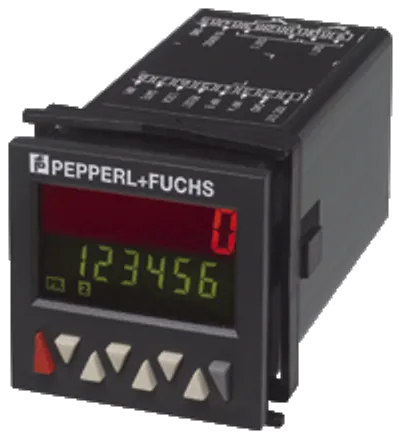

| KC-LCDC-48-6T-24VDC | 215121 | 10 ... 30 V DC UB | approx. 147 g | 48 mm x 48 mm x 109.8 mm | max. 1.5 W P0 |
| KC-LCDC-48-6T-230VAC | 215120 | 90 ... 260 V AC UB | approx. 151 g | 48 mm x 48 mm x 109.8 mm | max. 8 VA P0 |
| KC-LCDC-48-2R-24VDC | 214741 | 10 ... 30 V DC UB | approx. 138 g | 48 mm x 48 mm x 109.8 mm | max. 1.5 W P0 |
| KC-LCDC-48-2R-230VAC | 214740 | 90 ... 260 V AC UB | approx. 142 g | 48 mm x 48 mm x 109.8 mm | max. 8 VA P0 |
| KC-LCDC-48-2T-24VDC | 214739 | 10 ... 30 V DC UB | approx. 130 g | 48 mm x 48 mm x 109.8 mm | max. 1.5 W P0 |
| KC-LCDC-48-2T-230VAC | 214738 | 90 ... 260 V AC UB | approx. 134 g | 48 mm x 48 mm x 109.8 mm | max. 8 VA P0 |

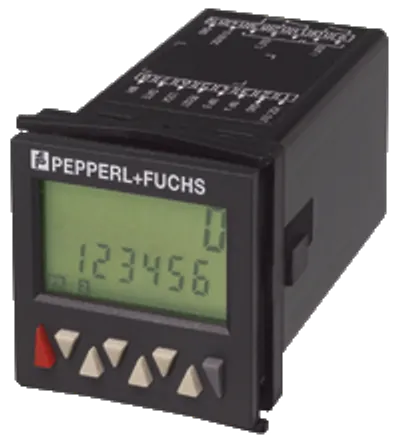

| KC-LCDL-48-2R-24VDC | 214737 | 10 ... 30 V DC UB | approx. 138 g | 48 mm x 48 mm x 109.8 mm | max. 1.5 W P0 |
| KC-LCDL-48-2R-230VAC | 214736 | 90 ... 260 V AC UB | approx. 143 g | 48 mm x 48 mm x 109.8 mm | max. 8 VA P0 |
| KC-LCD-48-1R-24VDC | 214735 | 11 ... 30 V DC UB | approx. 117 g | 48 mm x 48 mm x 109.8 mm | max. 4 W P0 |
| KC-LCD-48-1R-230VAC | 214734 | 230 V AC UB | approx. 230 g | 48 mm x 48 mm x 109.8 mm | max. 6.5 VA P0 |

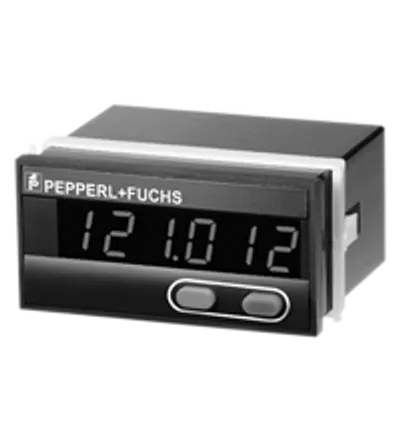

| KCT2-6ST-V | 110350 | 90 ... 260 V AC UB | approx. 150 g | 96 mm x 48 mm x 90 mm | max. 6 VA P0 |

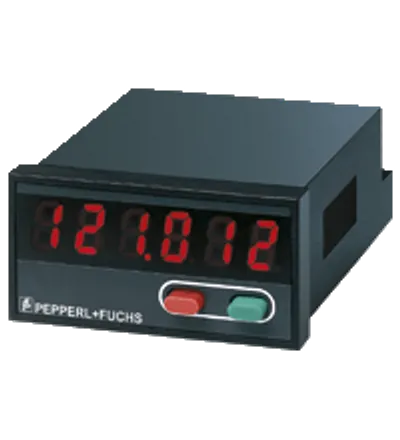

| KCT-6ST-C | 105455 | 10 ... 30 V DC UB | 48 g | 48 mm x 24 mm x 65 mm | 1.5 W P0 |

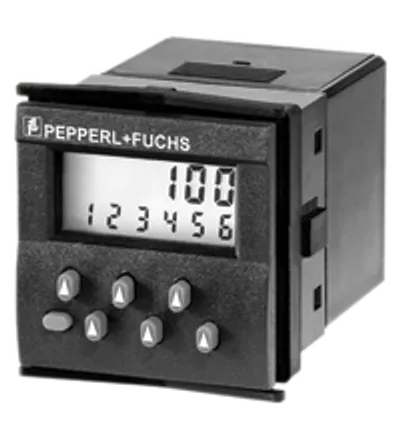

| KCY1-6SR-B | 110351 | Battery 2 x 3.6 V UB | 80 g | 48 mm x 48 mm x 85 mm | — |

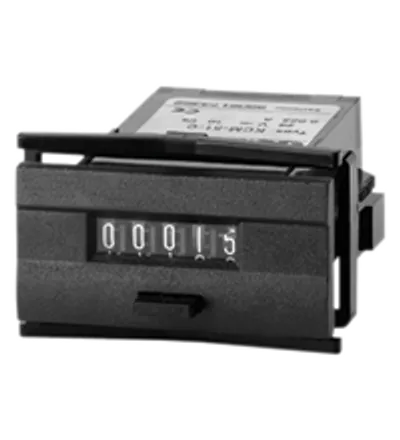

| KCM-51-V | 097906 | 230 V AC UB | 48 g | 48 mm x 24 mm x 59 mm | 1.3 VA P0 |
| KCM-51-C | 097905 | 24 V DC UB | 62 g | 48 mm x 24 mm x 59 mm | 0.6 W P0 |
| KCT-6S-C | 097901 | 10 ... 30 V DC UB | 48 g | 48 mm x 24 mm x 65 mm | 1.5 W P0 |

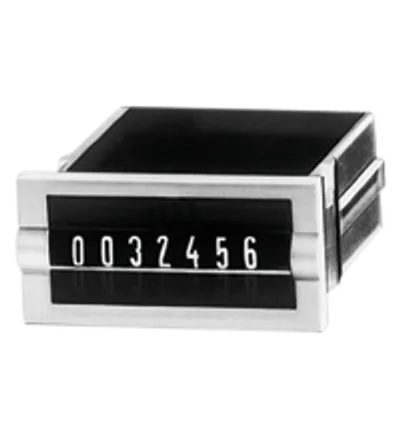

| KCM-70A-C | 097907 | 24 V DC UB | 18 g | 32 mm x 15 mm x 36 mm | 0.3 W P0 |

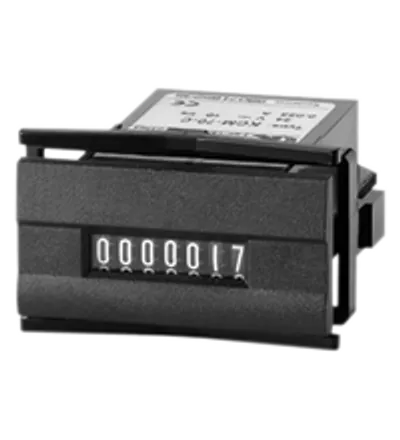

| KCM-70-V | 097903 | 230 V AC UB | 50 g | 48 mm x 24 mm x 54 mm | 1.3 VA P0 |
| KCM-70-C | 097902 | 24 V DC UB | 60 g | 48 mm x 24 mm x 54 mm | 0.6 W P0 |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
