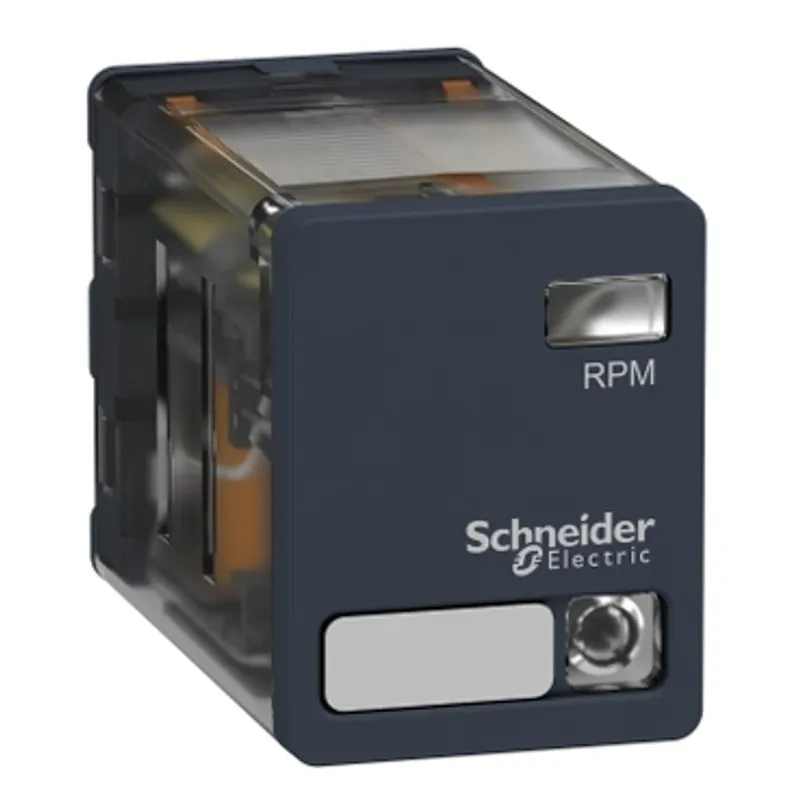

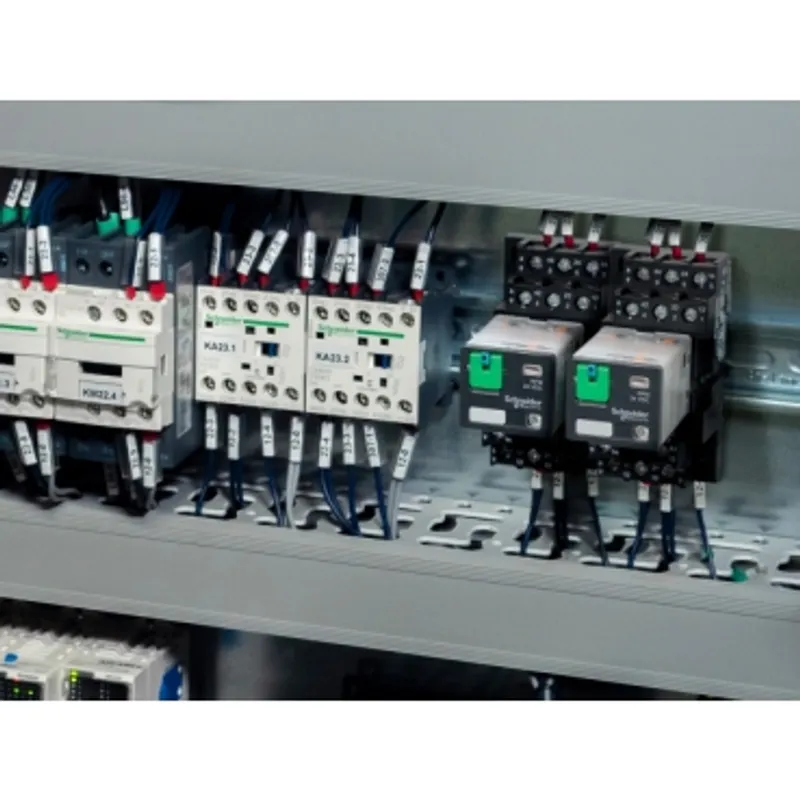

Schneider Electric RPM23B7
Plug In Relay, Harmony Relay, power, 15A at 277VAC, 2CO contacts, 24VAC 50/60HZ coil, LED
- MPN
- RPM23B7
- EAN
- 3389119217972
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original RPM23B7 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric RPM23B7?
This product is part of the Harmony Electromechanical Relays range, an offer of interface, miniature and power electromechanical relays. The power plug-in relay has 2 changeover contact with 15A at 250V AC and 15A at 28V DC resistive load current. It is a power relay with a control circuit voltage of 24V AC at 50/60Hz. This plug-in relay comes with status LED and flat plug-in pin. It offers electrical durability of about 1,00,000 cycles for resistive load and mechanical durability of about 10 million cycles. Its dimensions are 21mm (width) x 27mm (height) x 39mm (depth). It weighs 0.036kg. It is suitable for industrial, automation and control applications. This product is certified by EAC, CSA and UL. It meets CSA C22.2 No 14, UL 508 and EN/IEC 61810-1 standards. The Harmony electromechanical relay features flexible add-on accessories like protection module, timing module, maintaining clamp and marking legend. The Harmony electromechanical relay includes interface, miniature and power relays from 1 CO to 4 CO contacts, up to 30A.
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RPM series |
| Product or component type | Plug-in relay |
| Contacts type and composition | 2 C/O |
| Relay type | Power relay |
| Status LED | With |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Release time | 20 ms at nominal voltage |
| Ambient air temperature for operation | -40…55 °C |
| [Ithe] conventional enclosed thermal current | 15 A at -40…55 °C |
| Control type | Without lockable test button |
| [Ie] rated operational current | 15 A at 277 V (AC) conforming to UL, 15 A at 28 V (DC) conforming to UL, 15 A at 250 V (AC) NO conforming to IEC, 15 A at 28 V (DC) NO conforming to IEC, 7.5 A at 250 V (AC) NC conforming to IEC, 7.5 A at 28 V (DC) NC conforming to IEC |
| Degree of protection (Housing only) | IP40 conforming to IEC 60529 |
| Rated operational voltage limits | 19.2...26.4 V AC |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Maximum switching capacity | 3750 VA, 420 W |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Dielectric strength | 1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Protection category | RT I |
| Mounting support | Plug-in |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |

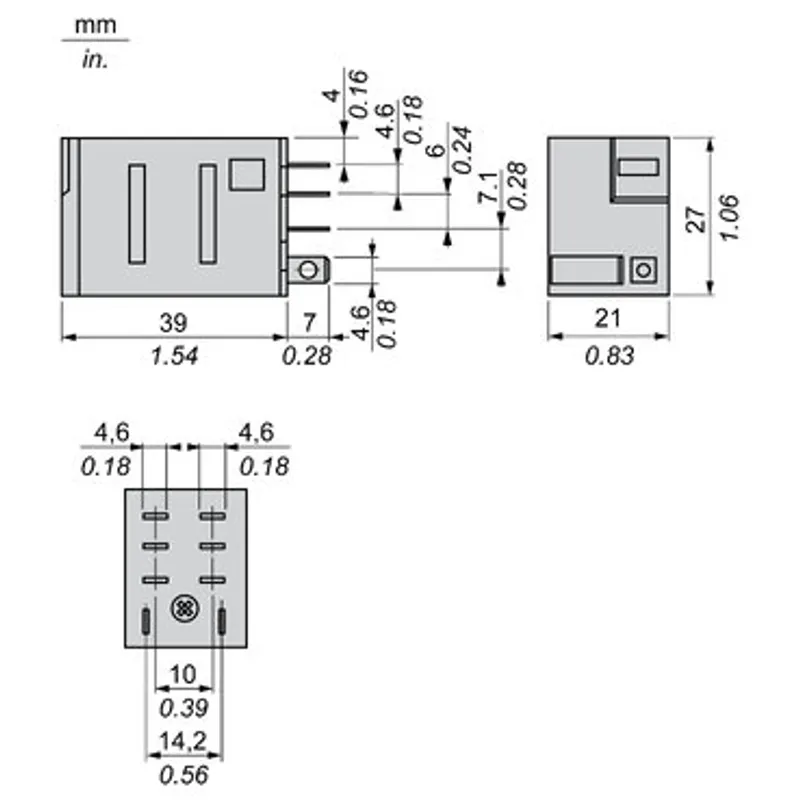

| Width | 21 mm |
| Height | 27 mm |
| Depth | 39 mm |
| Net weight | 0.036 kg |
| Average coil consumption in VA | 1.1 at 60 Hz |
| Pollution degree | 3 |
| Standards | CSA C22.2 No 14, UL 508, IEC 61810-1 |
| Product certifications | EAC, CSA, UL |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 15 gn for in operation, 30 gn for not operating |
Packaging
| Package 1 | 1 PCE, 4.8 cm × 2.8 cm × 2.2 cm (L × W × H), 37 g |
| Package 2 | 10 BB1, 12.5 cm × 10.4 cm × 3.4 cm (L × W × H), 402 g |
| Package 3 | 120 S01, 40 cm × 15 cm × 15 cm (L × W × H), 5.088 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
RPM23B7: frequently asked questions
Can I still buy the RPM23B7 now that it is discontinued?
Yes. Schneider Electric has discontinued the RPM23B7, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can RPM23B7 be shipped?
RPM23B7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RPM23B7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RPM23B7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RPM23B7, subject to availability and destination.
