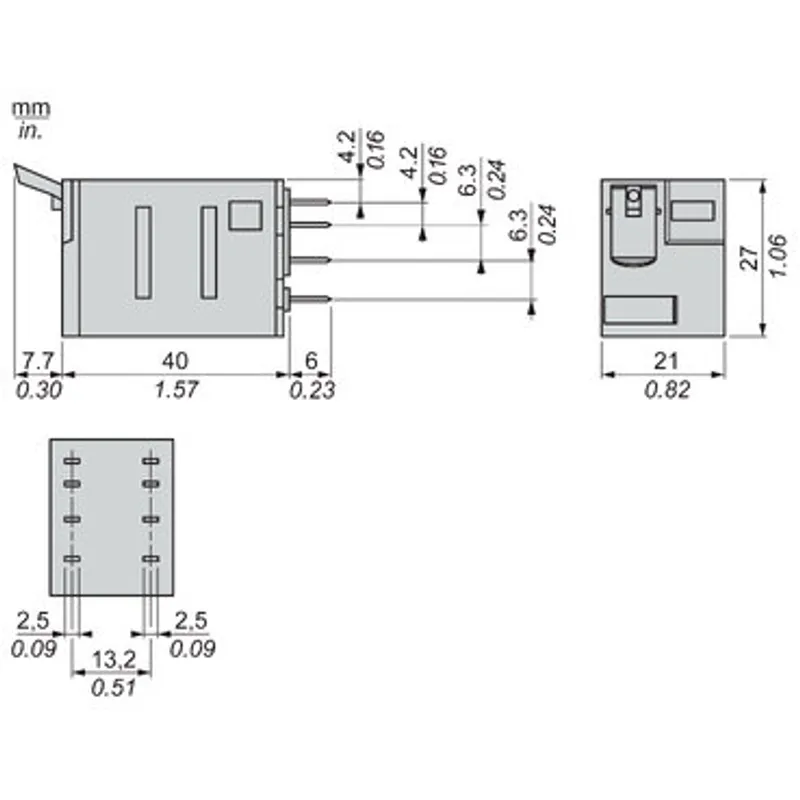

Harmony, Miniature plug-in relay, 6 A, 2 CO, with lockable test button, 240 V AC — photo 2 of 4

Harmony, Miniature plug-in relay, 6 A, 2 CO, with lockable test button, 240 V AC — photo 3 of 4

Harmony, Miniature plug-in relay, 6 A, 2 CO, with lockable test button, 240 V AC — photo 4 of 4

Available on request

Schneider Electric RXM2AB1U7 – Harmony, Miniature plug-in relay, 6 A, 2 CO, with lockable test button, 240 V AC

MPN: RXM2AB1U7 · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original RXM2AB1U7 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Harmony Electromechanical Relays
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.04 kg
UPC / EAN	3606480437151
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the RXM2AB1U7 now that it is discontinued?

Yes. Schneider Electric has discontinued the RXM2AB1U7, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can RXM2AB1U7 be shipped?

RXM2AB1U7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RXM2AB1U7 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RXM2AB1U7 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RXM2AB1U7, subject to availability and destination.

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 6A, control circuit voltage of 240 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Specifications

Range of product	Harmony Electromechanical Relays
Series name	RXM series
Product or component type	Plug-in relay
Relay type	Miniature relay
Contacts type and composition	2 C/O
Status LED	Without
Control type	Lockable test button
[Uc] control circuit voltage	240 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current	6 A
Continuous output current	10 A
[Uimp] rated impulse withstand voltage	4 kV during 1.2/50 µs
[Ie] rated operational current	3 A at 28 V (DC) NC conforming to IEC, 3 A at 250 V (AC) NC conforming to IEC, 6 A at 28 V (DC) NO conforming to IEC, 6 A at 250 V (AC) NO conforming to IEC
Minimum switching capacity	170 mW at 10 mA, 17 V
Electrical durability	200000 cycles for resistive load
Average coil consumption in VA	1.2 at 60 Hz
Rated operational voltage limits	192...264 V AC
[Ui] rated insulation voltage	250 V conforming to IEC
Average consumption	1.2 VA at 60 Hz
Maximum switching voltage	250 V conforming to IEC
Drop-out voltage threshold	>= 0.15 Uc
Load current	6 A at 250 V AC, 6 A at 28 V DC
Operating time	20 ms
Maximum switching capacity	1500 VA/168 W
Average resistance	17720 Ohm at 20 °C +/- 15 %
Mechanical durability	10000000 cycles
Safety reliability data	B10d = 100000
Operating rate	<= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Utilisation coefficient	20 %
reset time	35 ms
Dielectric strength	1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
Compatibility code	RXM
Protection category	RT I
Pollution degree	3
Operating position	Any position
Test levels	Level A group mounting
Device presentation	Complete product
Contacts material	AgNi
Shape of pin	Flat (faston type)
Net weight	0.037 kg
Ambient air temperature for operation	-40…40 °C
IP degree of protection	IP40 conforming to IEC 60529
Standards	IEC 61810-1
Product certifications	UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
Ambient air temperature for storage	-40…85 °C
Vibration resistance	3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
Shock resistance	10 gn for in operation, 30 gn for not operating

Packaging

Package 1	1 PCE, 4.8 cm × 2.7 cm × 2.1 cm (L × W × H), 35 g
Package 2	10 BB1, 12.5 cm × 10.5 cm × 3 cm (L × W × H), 392 g
Package 3	120 S01, 40 cm × 15 cm × 15 cm (L × W × H), 4.918 kg
