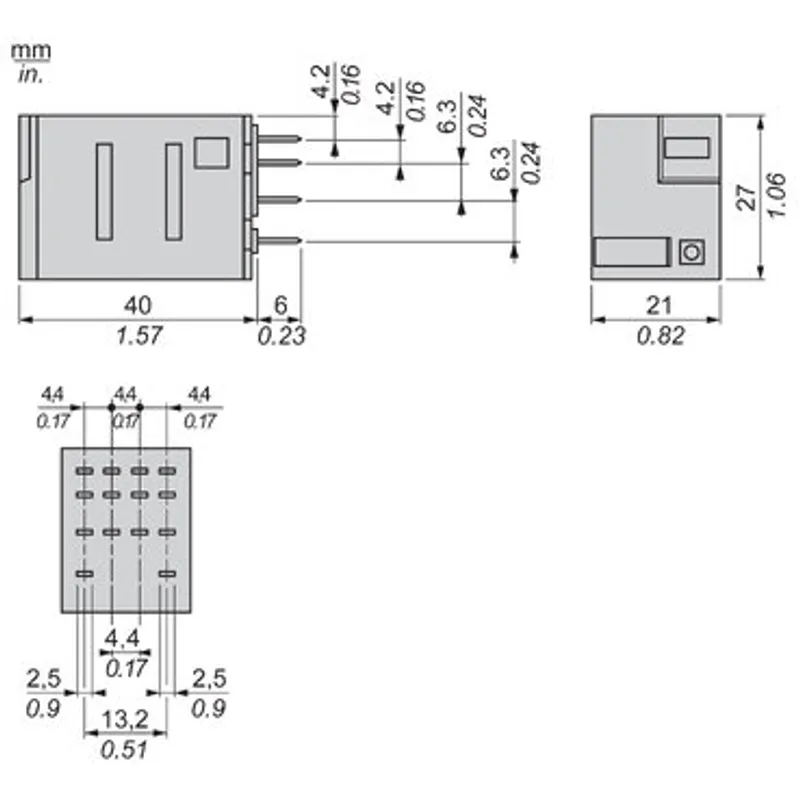

Plug In Relay, Harmony Relay, miniature, 6A at 277VAC, 4CO contacts, 120VAC 50/60Hz coil, with LED — photo 2 of 4

Plug In Relay, Harmony Relay, miniature, 6A at 277VAC, 4CO contacts, 120VAC 50/60Hz coil, with LED — photo 3 of 4

Plug In Relay, Harmony Relay, miniature, 6A at 277VAC, 4CO contacts, 120VAC 50/60Hz coil, with LED — photo 4 of 4

Available on request

Schneider Electric RXM4AB3F7 – Plug In Relay, Harmony Relay, miniature, 6A at 277VAC, 4CO contacts, 120VAC 50/60Hz coil, with LED

MPN: RXM4AB3F7 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Harmony Electromechanical Relays
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.04 kg
UPC / EAN	3389119217279
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can RXM4AB3F7 be shipped?

RXM4AB3F7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RXM4AB3F7 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RXM4AB3F7 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RXM4AB3F7, subject to availability and destination.

This product is part of the Harmony Electromechanical Relays range, an offer of interface, miniature and power electromechanical relays. The miniature plug-in relay has 4 changeover contact with 6A at 250V AC and 6A at 28V DC resistive load current. It is a miniature relay with a control circuit voltage of 120V AC at 50/60Hz. This plug-in relay comes with status LED and flat plug-in pin. It offers electrical durability of about 1,00,000 cycles for resistive load and mechanical durability of about 10 million cycles. A green LED on the front will illuminate when the relay is on. Its dimensions are 21mm (width) x 27mm (height) x 40mm (depth). It weighs 0.037kg. It is suitable for industrial, automation and control applications. This product is certified by Lloyd's, GOST, CSA, CE and UL. It meets UL 508, CSA C22.2 No 14 and EN/IEC 61810-1 standards. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The Harmony electromechanical relay features flexible add-on accessories like protection module, timing module, maintaining clamp and marking legend. The Harmony electromechanical relay includes interface, miniature and power relays from 1 CO to 4 CO contacts, up to 30A.

Specifications

Range of product	Harmony Electromechanical Relays
Series name	RXM series
Product or component type	Plug-in relay
Relay type	Miniature relay
Contacts type and composition	4 C/O
Status LED	With
Control type	Without lockable test button
[Uc] control circuit voltage	120 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current	6 A
Continuous output current	5 A
[Uimp] rated impulse withstand voltage	2.5 kV during 1.2/50 µs
[Ie] rated operational current	3 A at 28 V (DC) NC conforming to IEC, 3 A at 250 V (AC) NC conforming to IEC, 6 A at 28 V (DC) NO conforming to IEC, 6 A at 250 V (AC) NO conforming to IEC, 6 A at 277 V (AC) conforming to UL, 8 A at 30 V (DC) conforming to UL
Minimum switching capacity	170 mW at 10 mA, 17 V
Electrical durability	100000 cycles for resistive load
Average coil consumption in VA	1.2 at 60 Hz
Rated operational voltage limits	96...132 V AC
[Ui] rated insulation voltage	250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL
Average consumption	1.2 VA at 60 Hz
Maximum switching voltage	250 V conforming to IEC
Drop-out voltage threshold	>= 0.15 Uc
Load current	6 A at 250 V AC, 6 A at 28 V DC
Operating time	20 ms
Maximum switching capacity	1500 VA/168 W
Average resistance	4430 Ohm at 20 °C +/- 15 %
Mechanical durability	10000000 cycles
Safety reliability data	B10d = 100000
Operating rate	<= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Utilisation coefficient	20 %
reset time	20 ms
Dielectric strength	1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
Compatibility code	RXM
Protection category	RT I
Pollution degree	2
Operating position	Any position
Test levels	Level A group mounting
Device presentation	Complete product
Contacts material	AgNi
Shape of pin	Flat (faston type)
Net weight	0.037 kg
Ambient air temperature for operation	-40…55 °C
IP degree of protection	IP40 conforming to IEC 60529
Standards	UL 508, CSA C22.2 No 14, IEC 61810-1
Product certifications	UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
Ambient air temperature for storage	-40…85 °C
Vibration resistance	3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
Shock resistance	10 gn for in operation, 30 gn for not operating

Packaging

Package 1	1 PCE, 4.500 cm × 2.700 cm × 2.000 cm (L × W × H), 34.000 g
Package 2	10 BB1, 12.700 cm × 10.300 cm × 3.100 cm (L × W × H), 367.000 g
Package 3	240 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 9.293 kg
