Hybrid cables Parts
Compare Hybrid cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dimensions – Length | Bend radius – Moving | Weight |
|---|---|---|---|
| 8CCH03X5.11230-1 | 3.5 m | ≥150 mm | 1.2 kg |
| 8CCH0007.11110-1 | 7 m | ≥150 mm | 2.5 kg |
| 8CCH0001.11130-1 | 1 m | ≥150 mm | 0.4 kg |
| 8CCH0002.11130-1 | 2 m | ≥150 mm | 0.7 kg |
| 8CCH0003.11130-1 | 3 m | ≥150 mm | 1.1 kg |
| 8CCH01X5.11230-1 | 1.5 m | ≥150 mm | 0.5 kg |
| 8CCH02X5.11130-1 | 2.5 m | ≥150 mm | 0.9 kg |
| 8CCH02X5.11230-1 | 2.5 m | ≥150 mm | 0.9 kg |
| 8CCH0008.11110-1 | 8 m | ≥150 mm | 2.8 kg |
| 8CCH0020.11110-1 | 20 m | ≥150 mm | 7 kg |

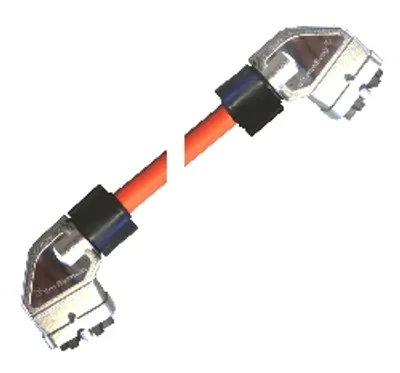

| 8CCH06X5.11230-1 | 6.5 m | ≥150 mm | 2.3 kg |
| 8CCH0006.11130-1 | 6 m | ≥150 mm | 2.1 kg |
| 8CCH0006.11230-1 | 6 m | ≥150 mm | 2.1 kg |
| 8CCH0001.11230-1 | 1 m | ≥150 mm | 0.4 kg |
| 8CCH0003.11230-1 | 3 m | ≥150 mm | 1.1 kg |
| 8CCH0005.11230-1 | 5 m | ≥150 mm | 1.8 kg |
| 8CCH0002.11230-1 | 2 m | ≥150 mm | 0.7 kg |
| 8CCH0004.11130-1 | 4 m | ≥150 mm | 1.4 kg |
| 8CCH0004.11230-1 | 4 m | ≥150 mm | 1.4 kg |
| 8CCH0015.11110-1 | 15 m | ≥160 mm | 5.3 kg |
| 8CCH01X2.11110-1 | 1.2 m | ≥150 mm | 0.42 kg |
| 8CCH01X3.11110-1 | 1.3 m | ≥150 mm | 0.46 kg |
| 8CCH01X4.11110-1 | 1.4 m | ≥150 mm | 0.49 kg |
| 8CCH01X5.11110-1 | 1.5 m | ≥150 mm | 0.53 kg |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 5x 2.5 mm² + 2x 2x 0.75 mm² + 2x 2x 0.34 mm² / 1.55- 100 VZN |
| Durability | In preparation |
| Power lines – Quantity | 5 |
| Power lines – Wire insulation | PE |
