B&R 8CCH0020.11110-1

Name: B&R 8CCH0020.11110-1
Brand: B&R
SKU: 8CCH0020.11110-1

MPN: 8CCH0020.11110-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Hybrid cables
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	7 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8CCH0020.11110-1 be shipped?

8CCH0020.11110-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8CCH0020.11110-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8CCH0020.11110-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8CCH0020.11110-1, subject to availability and destination.

• Can be used in cable drag chains

• Assembled specifically for use with ACOPOSremote/ACOPOSmotor drive systems

• Hybrid connector system for secure connections

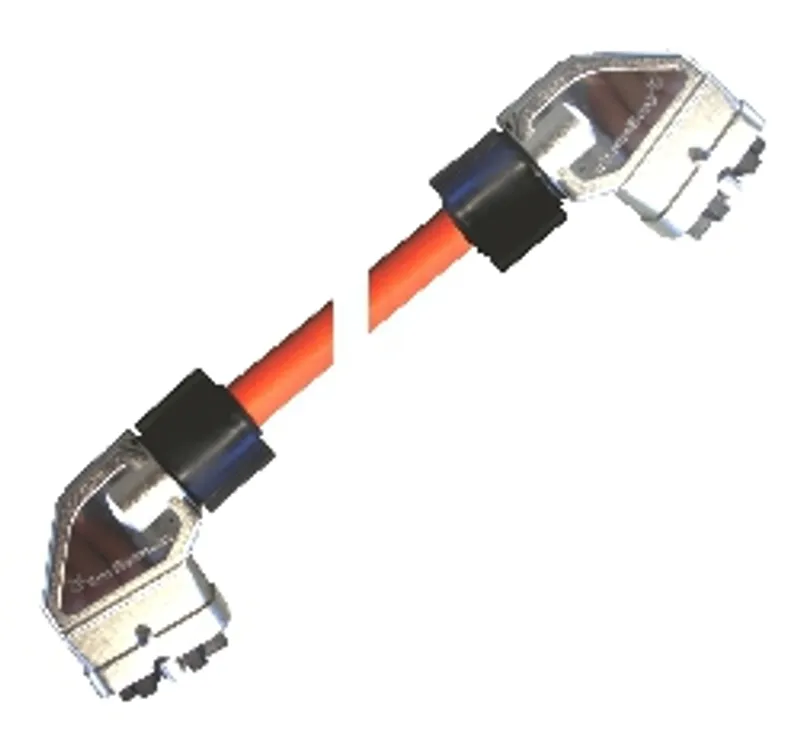

Hybrid cable, length 20 m, 2x 2x 0.34 mm² + 4x 0.75 mm² + 5x 2.5 mm², 2x 15-pin female TYCO connector, can be used in cable drag chains

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E225616; Power conversion equipment
Cable cross section	5x 2.5 mm² + 2x 2x 0.75 mm² + 2x 2x 0.34 mm² / 1.55- 100 VZN
Durability	In preparation

Cable construction

Power lines – Quantity	5
Power lines – Wire insulation	PE
Power lines – Wire colors	Black, red, brown, white, yellow/green
Power lines – Variant	Tinned copper stranded wire
Power lines – Cross section	2.5 mm²
Power lines – Shield	No
Power lines – Stranding	No
Signal line – Quantity	4
Signal line – Wire insulation	PE
Signal line – Wire colors	Pink/Blue, violet/gray
Signal line – Variant	Tinned copper stranded wire
Signal line – Cross section	0.75 mm²
Signal line – Shield	Yes
Signal line – Stranding	Yes
Data lines – Quantity	4
Data lines – Wire insulation	PE
Data lines – Wire colors	VZN (cat. 5)
Data lines – Variant	Tinned copper stranded wire
Data lines – Cross section	0.34 mm²
Data lines – Shield	Yes
Data lines – Stranding	Yes
Outer jacket – Material	PUR
Outer jacket – Color	Orange, similar to RAL 2003 flat
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield

Connector

Type	15-pin female TYCO connector
Mating cycles	Max. 20
Contacts	15
Degree of protection per EN 60529	IP65

Electrical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">

Test voltage – Wire - Wire	2.5 mm²: 3 kV; 0.75 mm²: 2 kV; 0.34 mm²: 2 kV
Test voltage – Wire - Shield	2.5 mm²: 3 kV; 0.75 mm²: 1 kV; 0.34 mm²: 1 kV
Conductor resistance – Power lines	≤8 Ω/km
Conductor resistance – Signal line	≤26 Ω/km
Conductor resistance – Data lines	≤56 Ω/km
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting	23.7 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct	27.3 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray	29.1 A
Operating voltage	Power lines: ≤1000 V; Signal lines: ≤1000 V; Data lines: ≤100 V
Insulation resistance	≥500 MΩ*km

Ambient conditions " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">

Temperature – Moving	-40°C to +80°C
Temperature – Static	-40°C to +80°C

Mechanical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">

Dimensions – Length	20 m
Dimensions – Diameter	14.6 mm ±0.4 mm
Bend radius – Single bend	>60 mm
Bend radius – Moving	≥150 mm
Drag chain data – Acceleration	Max. 50 m/s² (depends on the length of the travel path)
Drag chain data – Flex cycles	≥5,000,000
Drag chain data – Velocity	Max. 300 m/min
Weight	7 kg
