2-channel analog input; Resistor bridges (strain gauge)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | I/O Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 750-1491 be shipped?
750-1491 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 750-1491 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 750-1491 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 750-1491, subject to availability and destination.

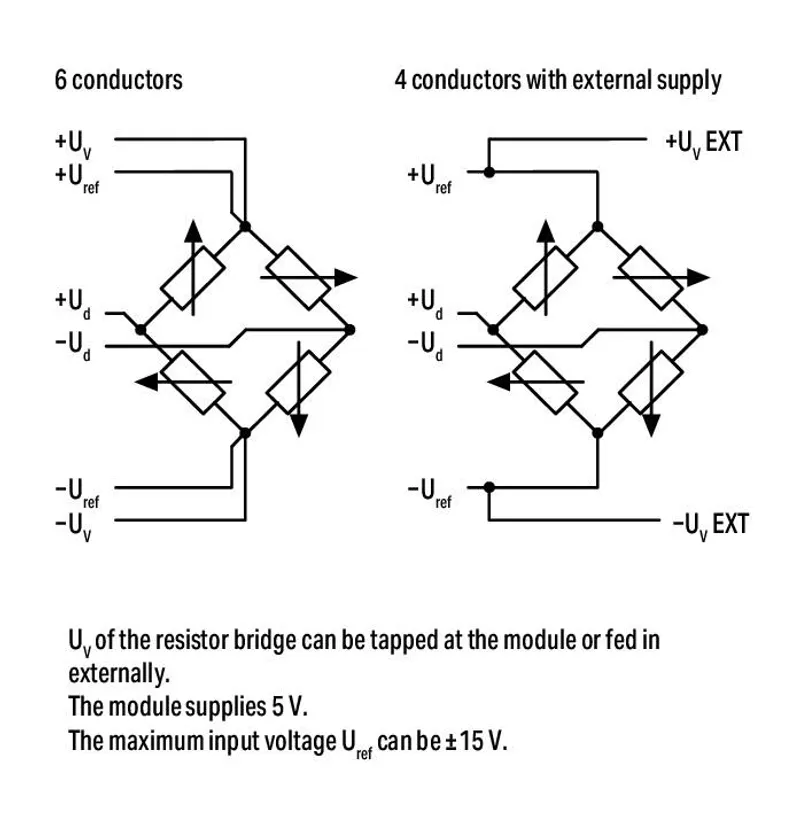

This analog input module directly connects to two resistor bridges.<br/>The bridge voltage U<sub>D</sub> and supply voltage U<sub>ref</sub> of the respective bridge are digitized with a resolution of 16 bits.<br/><br/>The two input channels for the respective resistor bridge are available as two 16-bit values for additional processing.<br/>The bridge detuning can be determined from the quotients of the two measurement values U<sub>d</sub> and U<sub>ref</sub>.<br/>Functional galvanic isolation is provided between both channels.<br/>The internal supply voltage is derived from the system supply.<br/>The supply of a separate 24 V field voltage is not necessary. The voltage supplied via the power jumper contacts is looped through to downstream I/O modules.<br/>The shield connects to the DIN-rail.<br/>The module is parameterized via GSD file, <b><i>e!</i></b><i>COCKPIT</i> or WAGO-I/O-<i>CHECK</i>.
Specifications
Technical data
| Number of analog inputs | 2 |
| Total number of channels (module) | 2 |
| Signal type | Resistor bridge (strain gauge), Resistor bridge (strain gauge) |
| Sensor supply | 5 VDC |
| Signal voltage U<sub>D</sub> | ±15 mV; ±30 mV; ±60 mV; ±120 mV; ±240 mV; ±360 mV |
| Signal voltage U<sub>ref</sub> | Internal +5 V; External ±5 V; ±10 V; ±15 V |
| Resolution [bit] | 16 Bit |
| Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
| Internal resistance | > 200 kΩ (Uref), > 1.4 MΩ (Ud) |
| Conversion time | 10 ms (min.) |
| Measurement error (25 °C) | UD: ±30 µV; Uref: ±0.05 % of the upper-range value |
| Measurement error over entire temperature range | ±0.2 % of the upper-range value; with user calibration up to ±0.05 % |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 70 mA |
| Current consumption: System and sensor | 200 mA |
| Isolation | Per UL 61010-2-201: 1.2 kVDC system/channel and channel/channel |

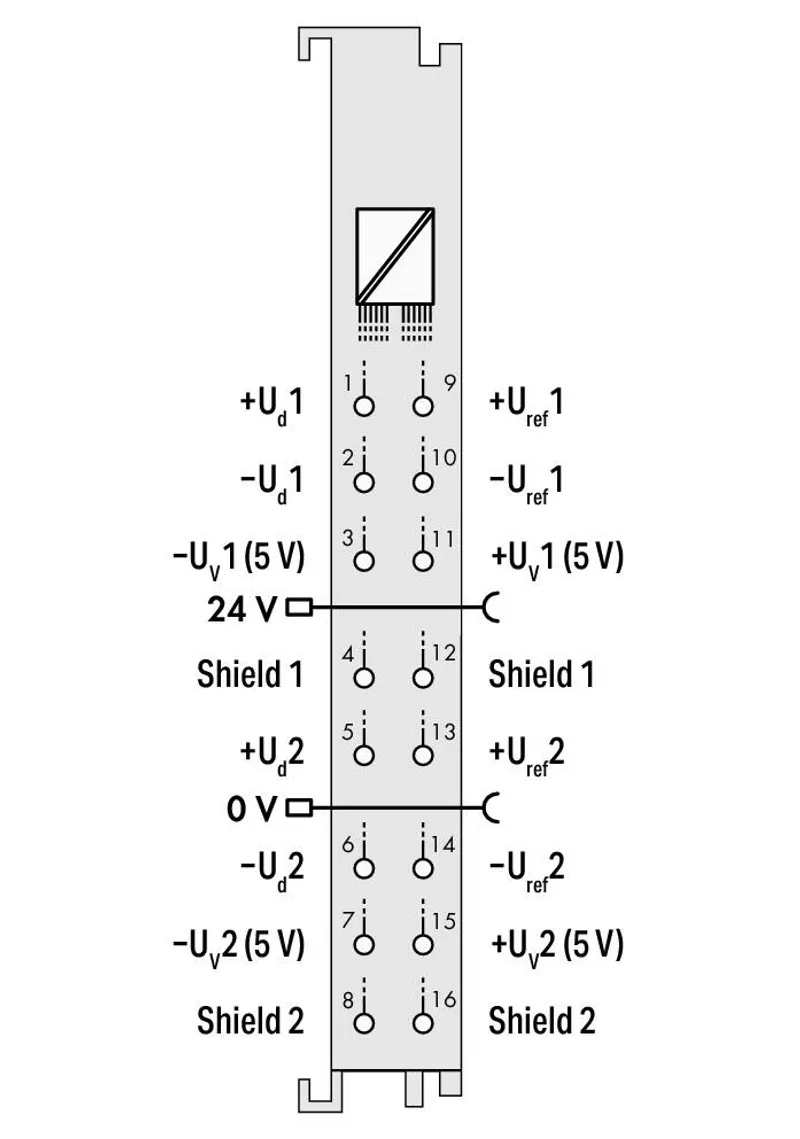

| Indicators | LED (1, 3, 9, 11) green: Function UD, Uref; LED (2, 4, 10, 12) red: Error UD, Uref |
Connection data
| Connection technology: I/O | 16 x Push-in CAGE CLAMP® |
| Connectable conductor materials | Copper |
| Connection type | Inputs/outputs |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mechanical data
| Mounting type | DIN-35 rail |
| Pluggable connector | fixed |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.624 MJ |
| Weight | 44.9 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-3 |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4066966116120 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32101619 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,No Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | c6eecec8-368f-47fd-870d-33b12daa1fdc |
| SCIP notification number (Belgium) | e6af0df5-82f9-4d79-b148-ecd400381f0f |
| SCIP notification number (Bulgaria) | d9e2595f-7764-4b36-bca4-ea53e571a420 |
| SCIP notification number (Czech Republic) | 24064782-aad8-4c33-bb89-8b7209554563 |
| SCIP notification number (Denmark) | f02b6737-8f8d-4099-81e7-79ea7939a2e8 |
| SCIP notification number (Finland) | 8dfb4e8b-285e-45f9-8194-fc4aef26d8f7 |
| SCIP notification number (France) | 1f886934-d49a-4d11-9f05-6211e610d40a |
| SCIP notification number (Germany) | 0f2423d1-52f1-4d97-bd0b-2a7c912590e5 |
| SCIP notification number (Hungary) | 1bec5116-e76e-47c2-8ec1-b031bfa428aa |
| SCIP notification number (Italy) | 18d64416-ea71-48a8-9728-230f74d18408 |
| SCIP notification number (Netherlands) | 88ab6331-8b28-4e4a-9489-f714c3ea61ca |
| SCIP notification number (Poland) | e6c10cb7-3b7c-4404-a6ab-af9ec3732d76 |
| SCIP notification number (Romania) | f8509a2c-d98c-4a9c-b779-e6b87e2dd217 |
| SCIP notification number (Sweden) | 89cbc01f-8e4d-4d42-a9fd-b91e3da631af |
