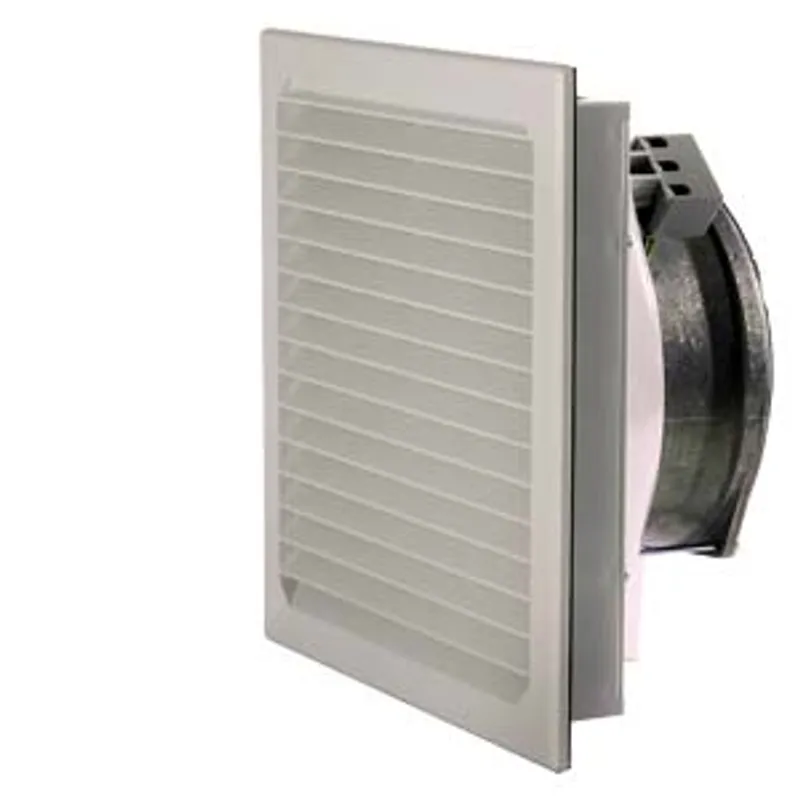

Siemens 8MR6411-5LV41

Filter fan, Extract: W: 223 mm, H: 223 mm, RAL 7035, IP54, Airflow: 250 m3/h, Ue AC: 115 V

MPN: 8MR6411-5LV41
Category: Air-Conditioning

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 8MR6411-5LV41?

Filter fan, Extract: W: 223 mm, H: 223 mm, RAL 7035, IP54, Airflow: 250 m3/h, Ue AC: 115 V

Specifications

Model

product brand name	SIVACON
product designation	filter fan
type of ventilation	ventilation
fan design withdrawable fan	No
design of the product EMC version	No

General technical data

A-rated sound power level maximum	52 dB
consumed active power rated value	43 W
cutout width	223 mm
cutout height	223 mm
operating period	40 000 h
rotor speed at 50 Hz rated value	2 760 1/min
rotor speed at 60 Hz rated value	3 030 1/min
type of voltage of the operating voltage	AC
consumed current maximum	0.53 A
operating voltage — at AC at 50 Hz rated value maximum	115 V
operating voltage — at AC at 60 Hz rated value maximum	115 V

Protection class

protection class IP

IP54

Appearance

RAL color number	7 035
color	light grey

Product details

product component fan

Number

number of ventilators

Mechanical Design

height	250 mm
width	250 mm
depth	126 mm
installation location	Control cabinet side panels, door, vertical
fastening method	snap-on mounting
fastening method — 19-inch installation	No
fastening method — wall mounting	Yes
Net Weight	1.823 kg
material	plastic
ambient temperature during operation — minimum	-10 °C
ambient temperature during operation — maximum	55 °C
