Home / Siemens / Air-Conditioning / Siemens 8MR6411-5LV10

Siemens

Siemens 8MR6411-5LV10

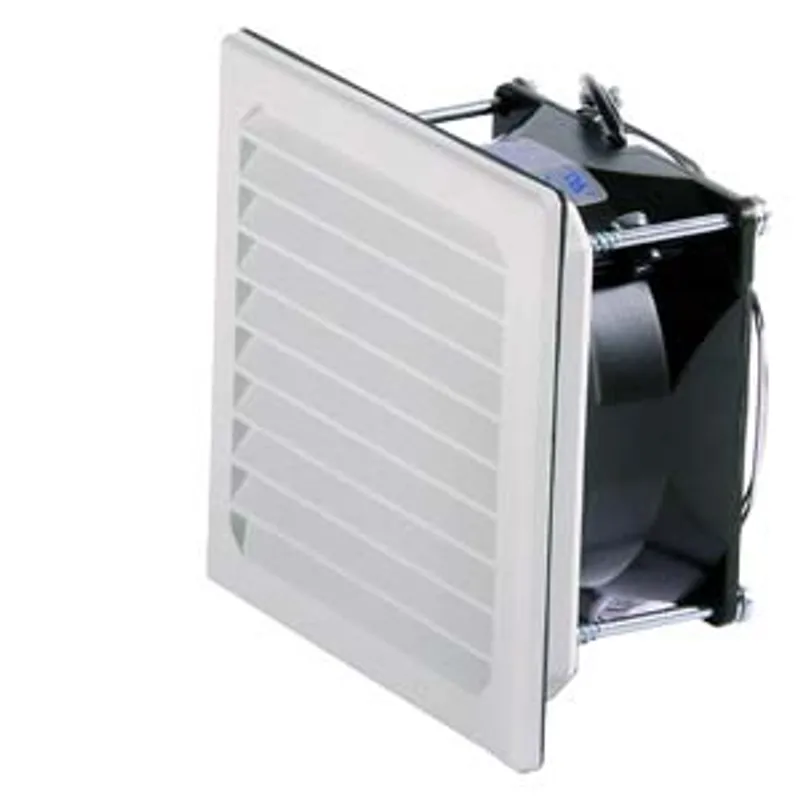

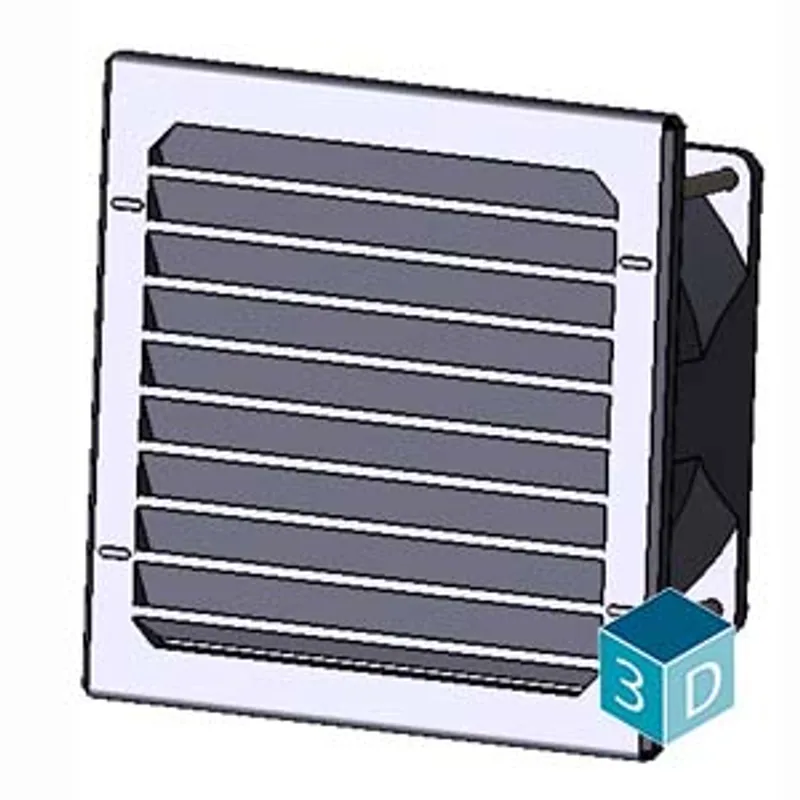

Filter fan, Extract: W: 92 mm, H: 92 mm, RAL 7035, IP54, Airflow: 25 m3/h, Ue AC: 115 V

MPN: 8MR6411-5LV10
Category: Air-Conditioning

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 8MR6411-5LV10?

Filter fan, Extract: W: 92 mm, H: 92 mm, RAL 7035, IP54, Airflow: 25 m3/h, Ue AC: 115 V, with Connecting cable 0.5m

Specifications

Model

product brand name	SIVACON
product designation	filter fan
design of the product	With connecting cable 0.5 m
type of ventilation	ventilation
fan design withdrawable fan	No
design of the product EMC version	No

General technical data

A-rated sound power level maximum	30 dB
consumed active power rated value	12 W
cutout width	92 mm
cutout height	92 mm
operating period	40 000 h
rotor speed at 50 Hz rated value	2 700 1/min
rotor speed at 60 Hz rated value	3 200 1/min
type of voltage of the operating voltage	AC
consumed current maximum	0.14 A
operating voltage — at AC at 50 Hz rated value maximum	115 V
operating voltage — at AC at 60 Hz rated value maximum	115 V

Protection class

protection class IP

IP54

Appearance

RAL color number	7 035
color	light grey

Product details

product component fan

Number

number of ventilators

Mechanical Design

height	105 mm
width	105 mm
depth	60 mm
installation location	Control cabinet side panels, door, vertical
fastening method	snap-on mounting
fastening method — 19-inch installation	No
fastening method — wall mounting	Yes
Net Weight	527 g
material	plastic
ambient temperature during operation — minimum	-10 °C
ambient temperature during operation — maximum	55 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8MR6411-5LV10PDF
