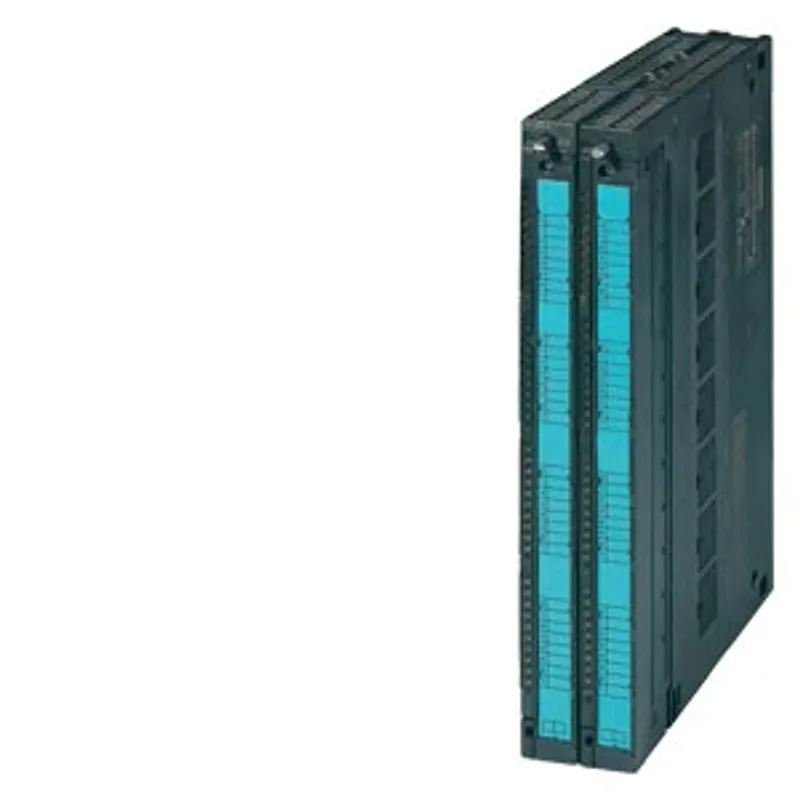

Siemens 6ES7455-1VS00-0AE0

SIMATIC S7-400, control module FM 455 S, 16 channels, step and pulse, 8/16 AI + 16 DI+ 32 DO

MPN: 6ES7455-1VS00-0AE0
Category: FM 455 controller module

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7455-1VS00-0AE0?

SIMATIC S7-400, control module FM 455 S, 16 channels, step and pulse, 8/16 AI + 16 DI+ 32 DO

Specifications

Supply voltage

Load voltage L+ — Rated value (DC)	24 V
Load voltage L+ — permissible range, lower limit (DC)	20.4 V
Load voltage L+ — permissible range, upper limit (DC)	28.8 V

Input current

from load voltage L+ (without load), max.

400 mA; typ. 330 mA

Power loss

Power loss, typ.	10.7 W
Power loss, max.	16.2 W

Digital inputs

Number of digital inputs	16
Input characteristic curve in accordance with IEC 61131, type 2	Yes
Input voltage — Rated value (DC)	24 V
Input voltage — for signal "0"	-3 to +5V
Input voltage — for signal "1"	13 to 30V
Input current — for signal "1", typ.	7 mA
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Digital outputs

Number of digital outputs	32
Short-circuit protection	Yes; Electronic
Limitation of inductive shutdown voltage to	L+ (-1.5 V)
Controlling a digital input	Yes
Switching capacity of the outputs — on lamp load, max.	5 W
Load resistance range — lower limit	240 Ω
Load resistance range — upper limit	4 kΩ
Output voltage — for signal "1", min.	L+ (-2.5 V)
Output current — for signal "1" rated value	0.1 A
Output current — for signal "1" permissible range for 0 to 60 °C, min.	5 mA
Output current — for signal "1" permissible range for 0 to 60 °C, max.	150 mA
Output current — for signal "0" residual current, max.	0.5 mA
Parallel switching of two outputs — for logic links	Yes
Switching frequency — with resistive load, max.	100 Hz
Switching frequency — with inductive load, max.	0.5 Hz
Switching frequency — on lamp load, max.	100 Hz
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Analog inputs

Number of analog inputs	16; With thermocouples or 2-wire connection; 8 with Pt 100 or 4-wire connection
permissible input voltage for voltage input (destruction limit), max.	20 V
permissible input current for current input (destruction limit), max.	40 mA
Input ranges — Voltage	Yes
Input ranges — Current	Yes
Input ranges — Thermocouple	Yes
Input ranges — Resistance thermometer	Yes
Input ranges (rated values), voltages — 0 to +10 V	Yes
Input ranges (rated values), voltages — 0 to +10 V — Input resistance (0 to 10 V)	100 kΩ
Input ranges (rated values), voltages — 1.75 V to +11.75 V	Yes
Input ranges (rated values), voltages — 1.75 V to +11.75 V — Input resistance (-1.75 V to +11.75 V)	100 kΩ
Input ranges (rated values), voltages — 80 mV to +80 mV	Yes
Input ranges (rated values), voltages — 80 mV to +80 mV — Input resistance (-80 mV to +80 mV)	10 MΩ
Input ranges (rated values), currents — 0 to 20 mA	Yes
Input ranges (rated values), currents — 0 to 20 mA — Input resistance (0 to 20 mA)	50 Ω
Input ranges (rated values), currents — 0 to 23.5 mA	Yes
Input ranges (rated values), currents — 0 to 23.5 mA — Input resistance (0 to 23.5 mA)	50 Ω
Input ranges (rated values), currents — 3.5 mA to +23.5 mA	Yes
Input ranges (rated values), currents — 3.5 mA to +23.5 mA — Input resistance (-3.5 mA to +23.5 mA)	50 Ω
Input ranges (rated values), currents — 4 mA to 20 mA	Yes
Input ranges (rated values), currents — 4 mA to 20 mA — Input resistance (4 mA to 20 mA)	50 Ω
Input ranges (rated values), thermocouples — type B	Yes
Input ranges (rated values), thermocouples — type B — Input resistance (Type B)	10 MΩ
Input ranges (rated values), thermocouples — Type J	Yes
Input ranges (rated values), thermocouples — Type J — Input resistance (type J)	10 MΩ
Input ranges (rated values), thermocouples — Type K	Yes
Input ranges (rated values), thermocouples — Type K — Input resistance (Type K)	10 MΩ
Input ranges (rated values), thermocouples — Type R	Yes
Input ranges (rated values), thermocouples — Type R — Input resistance (Type R)	10 MΩ
Input ranges (rated values), thermocouples — Type S	Yes
Input ranges (rated values), thermocouples — Type S — Input resistance (Type S)	10 MΩ
Input ranges (rated values), resistance thermometer — Pt 100	Yes
Input ranges (rated values), resistance thermometer — Pt 100 — Input resistance (Pt 100)	10 MΩ
Thermocouple (TC) — Temperature compensation — internal temperature compensation	Yes; Parameterizable
Thermocouple (TC) — Temperature compensation — external temperature compensation with Pt100	Yes; Parameterizable
Characteristic linearization — Parameterizable	Yes
Characteristic linearization — Parameterizable — for thermocouples	Type B, J, K, R, S
Characteristic linearization — Parameterizable — for resistance thermometer	Pt100 (standard)
Cable length — shielded, max.	200 m; 50 m at 80 mV and thermocouples

Analog value generation for the inputs

Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.	14 bit; 12 bit or 14 bit, parameterizable
Integration and conversion time/resolution per channel — Conversion time (per channel)	16.67 ms; for 12 bit: 16 2/3 ms for 60 Hz, 20 ms for 50 Hz; for 14 bit: 100 ms for 50 Hz and 60 Hz

Encoder

Connection of signal encoders — for voltage measurement	Yes
Connection of signal encoders — for current measurement as 4-wire transducer	Yes
Connectable encoders — 2-wire sensor	Yes
Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max.	1.5 mA

Errors/accuracies

Operational error limit in overall temperature range — Voltage, relative to input range, (+/-)	±0.6 to ±1%
Operational error limit in overall temperature range — Current, relative to input range, (+/-)	±0.6 to ±1%
Operational error limit in overall temperature range — Resistance thermometer, relative to input range, (+/-)	±0.6 to ±1%
Basic error limit (operational limit at 25 °C) — Voltage, relative to input range, (+/-)	±0.4 to ±0.6 %
Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-)	±0.4 to ±0.6 %
Basic error limit (operational limit at 25 °C) — Resistance thermometer, relative to input range, (+/-)	±0.4 to ±0.6 %

Interrupts/diagnostics/status information

Substitute values connectable

Yes; Parameterizable

Integrated Functions

Control technology — Number of closed-loop controllers

16; With thermocouples or 2-wire connection; 8 with Pt 100 or 4-wire connection

Potential separation

Potential separation controller — between the channels	No
Potential separation controller — between the channels and backplane bus	Yes; Optocoupler

Isolation

Isolation tested with

500 V DC

Connection method

required front connector

2x 48-pin

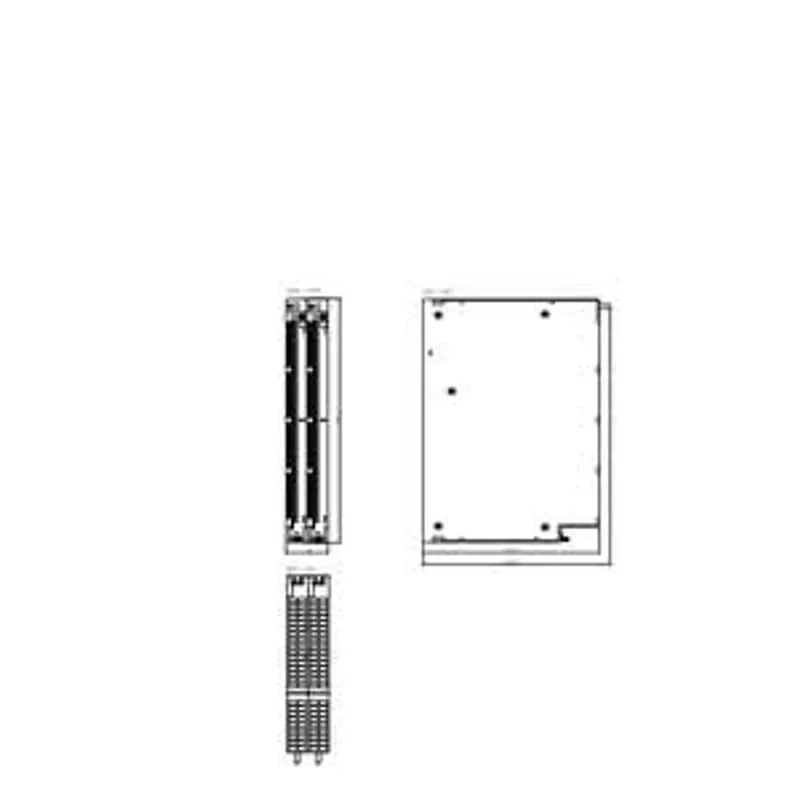

Dimensions

Width	50 mm
Height	290 mm
Depth	210 mm

Weights

Weight, approx.

1 400 g
