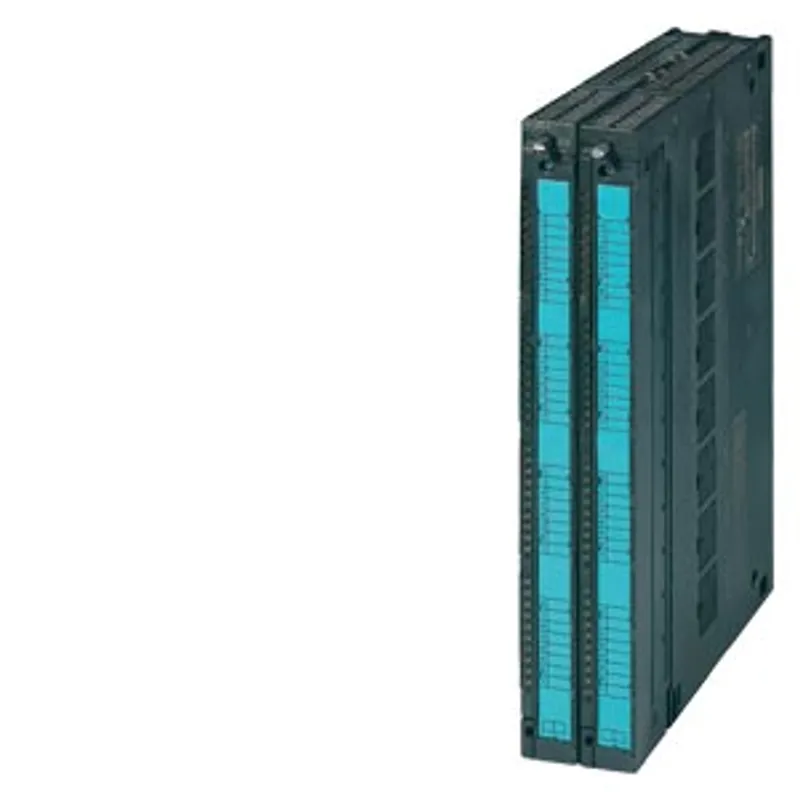

Siemens 6ES7455-0VS00-0AE0 – SIMATIC S7-400, control module FM 455 C, 16 channels
MPN: 6ES7455-0VS00-0AE0 · Brand: Siemens
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | FM 455 controller module |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.58 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 6ES7455-0VS00-0AE0 be shipped?
6ES7455-0VS00-0AE0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7455-0VS00-0AE0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7455-0VS00-0AE0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7455-0VS00-0AE0, subject to availability and destination.
SIMATIC S7-400, control module FM 455 C, 16 channels, continuous, 8/16 AI + 16 DI+ 16 AO
Specifications
Supply voltage
| Load voltage L+ — Rated value (DC) | 24 V |
| Load voltage L+ — permissible range, lower limit (DC) | 20.4 V |
| Load voltage L+ — permissible range, upper limit (DC) | 28.8 V |
Input current
| from load voltage L+ (without load), max. | 440 mA; typ. 370 mA |
Power loss
| Power loss, typ. | 12 W |
| Power loss, max. | 17.3 W |
Digital inputs
| Number of digital inputs | 16 |
| Input characteristic curve in accordance with IEC 61131, type 2 | Yes |
| Input voltage — Rated value (DC) | 24 V |
| Input voltage — for signal "0" | -3 to +5V |
| Input voltage — for signal "1" | 13 to 30V |
| Input current — for signal "1", typ. | 7 mA |
| Cable length — shielded, max. | 1 000 m |
| Cable length — unshielded, max. | 600 m |
Analog inputs
| Number of analog inputs | 16; With thermocouples or 2-wire connection; 8 with Pt 100 or 4-wire connection |
| permissible input voltage for voltage input (destruction limit), max. | 20 V |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Input ranges — Voltage | Yes |
| Input ranges — Current | Yes |
| Input ranges — Thermocouple | Yes |
| Input ranges — Resistance thermometer | Yes |
| Input ranges (rated values), voltages — 0 to +10 V | Yes |
| Input ranges (rated values), voltages — 0 to +10 V — Input resistance (0 to 10 V) | 100 kΩ |
| Input ranges (rated values), voltages — 1.75 V to +11.75 V | Yes |
| Input ranges (rated values), voltages — 1.75 V to +11.75 V — Input resistance (-1.75 V to +11.75 V) | 100 kΩ |
| Input ranges (rated values), voltages — 80 mV to +80 mV | Yes |
| Input ranges (rated values), voltages — 80 mV to +80 mV — Input resistance (-80 mV to +80 mV) | 10 MΩ |
| Input ranges (rated values), currents — 0 to 20 mA | Yes |
| Input ranges (rated values), currents — 0 to 20 mA — Input resistance (0 to 20 mA) | 50 Ω |
| Input ranges (rated values), currents — 0 to 23.5 mA | Yes |
| Input ranges (rated values), currents — 0 to 23.5 mA — Input resistance (0 to 23.5 mA) | 50 Ω |
| Input ranges (rated values), currents — 3.5 mA to +23.5 mA | Yes |
| Input ranges (rated values), currents — 3.5 mA to +23.5 mA — Input resistance (-3.5 mA to +23.5 mA) | 50 Ω |
| Input ranges (rated values), currents — 4 mA to 20 mA | Yes |
| Input ranges (rated values), currents — 4 mA to 20 mA — Input resistance (4 mA to 20 mA) | 50 Ω |
| Input ranges (rated values), thermocouples — Type B | Yes |
| Input ranges (rated values), thermocouples — Type B — Input resistance (Type B) | 10 MΩ |
| Input ranges (rated values), thermocouples — Type J | Yes |
| Input ranges (rated values), thermocouples — Type J — Input resistance (type J) | 10 MΩ |
| Input ranges (rated values), thermocouples — Type K | Yes |
| Input ranges (rated values), thermocouples — Type K — Input resistance (Type K) | 10 MΩ |
| Input ranges (rated values), thermocouples — Type R | Yes |
| Input ranges (rated values), thermocouples — Type R — Input resistance (Type R) | 10 MΩ |
| Input ranges (rated values), thermocouples — Type S | Yes |
| Input ranges (rated values), thermocouples — Type S — Input resistance (Type S) | 10 MΩ |
| Input ranges (rated values), resistance thermometer — Pt 100 | Yes |
| Input ranges (rated values), resistance thermometer — Pt 100 — Input resistance (Pt 100) | 10 MΩ |
| Thermocouple (TC) — Temperature compensation — internal temperature compensation | Yes; Parameterizable |
| Thermocouple (TC) — Temperature compensation — external temperature compensation with Pt100 | Yes; Parameterizable |
| Characteristic linearization — Parameterizable | Yes |
| Characteristic linearization — Parameterizable — for thermocouples | Type B, J, K, R, S |
| Characteristic linearization — Parameterizable — for resistance thermometer | Pt100 (standard) |
| Cable length — shielded, max. | 200 m; 50 m at 80 mV and thermocouples |
Analog outputs
| Number of analog outputs | 16 |
| Voltage output, short-circuit protection | Yes |
| Voltage output, short-circuit current, max. | 25 mA |
| Current output, no-load voltage, max. | 18 V |
| Output ranges, voltage — 0 to 10 V | Yes |
| Output ranges, voltage — 10 V to +10 V | Yes |
| Output ranges, current — 0 to 20 mA | Yes |
| Output ranges, current — 20 mA to +20 mA | Yes |
| Output ranges, current — 4 mA to 20 mA | Yes |
| Connection of actuators — for voltage output two-wire connection | Yes |
| Connection of actuators — for current output two-wire connection | Yes |
| Load impedance (in rated range of output) — with voltage outputs, min. | 1 kΩ |
| Load impedance (in rated range of output) — with voltage outputs, capacitive load, max. | 1 µF |
| Load impedance (in rated range of output) — with current outputs, max. | 500 Ω |
| Load impedance (in rated range of output) — with current outputs, inductive load, max. | 1 mH |
| Cable length — shielded, max. | 200 m; 50 m at 80 mV and thermocouples |
Analog value generation for the inputs
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 14 bit; 12 bit or 14 bit, parameterizable |
| Integration and conversion time/resolution per channel — Conversion time (per channel) | 16.67 ms; for 12 bit: 16 2/3 ms for 60 Hz, 20 ms for 50 Hz; for 14 bit: 100 ms for 50 Hz and 60 Hz |
Analog value generation for the outputs
| Settling time — for resistive load | 0.1 ms |
| Settling time — for capacitive load | 3.3 ms |
| Settling time — for inductive load | 0.5 ms |
Encoder
| Connection of signal encoders — for voltage measurement | Yes |
| Connection of signal encoders — for current measurement as 4-wire transducer | Yes |
| Connectable encoders — 2-wire sensor | Yes |
| Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max. | 1.5 mA |
Errors/accuracies
| Operational error limit in overall temperature range — Voltage, relative to input range, (+/-) | ±0.6 to ±1% |
| Operational error limit in overall temperature range — Current, relative to input range, (+/-) | ±0.6 to ±1% |
| Operational error limit in overall temperature range — Resistance thermometer, relative to input range, (+/-) | ±0.6 to ±1% |
| Operational error limit in overall temperature range — Voltage, relative to output range, (+/-) | 0.5 % |
| Operational error limit in overall temperature range — Current, relative to output range, (+/-) | 0.6 % |
| Basic error limit (operational limit at 25 °C) — Voltage, relative to input range, (+/-) | ±0.4 to ±0.6 % |
| Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-) | ±0.4 to ±0.6 % |
| Basic error limit (operational limit at 25 °C) — Resistance thermometer, relative to input range, (+/-) | ±0.4 to ±0.6 % |
| Basic error limit (operational limit at 25 °C) — Voltage, relative to output range, (+/-) | 0.4 % |
| Basic error limit (operational limit at 25 °C) — Current, relative to output range, (+/-) | 0.5 % |
Interrupts/diagnostics/status information
| Substitute values connectable | Yes; Parameterizable |
Integrated Functions
| Control technology — Number of closed-loop controllers | 16; With thermocouples or 2-wire connection; 8 with Pt 100 or 4-wire connection |
Potential separation
| Potential separation controller — between the channels | No |
| Potential separation controller — between the channels and backplane bus | Yes; Optocoupler |
Isolation
| Isolation tested with | 500 V DC |
Connection method
| required front connector | 2x 48-pin |
Dimensions
| Width | 50 mm |
| Height | 290 mm |
| Depth | 210 mm |
Weights
| Weight, approx. | 1 400 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet 6ES7455-0VS00-0AE0 |
