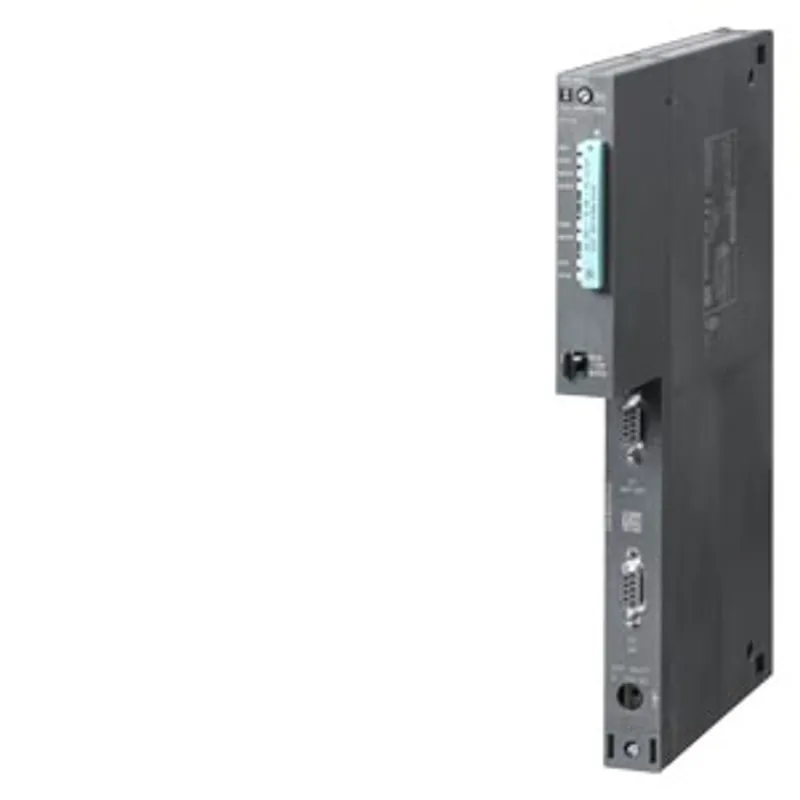

Siemens 6ES7416-2XP07-0AB0 – SIMATIC S7-400, CPU 416-2 — photo 2 of 4

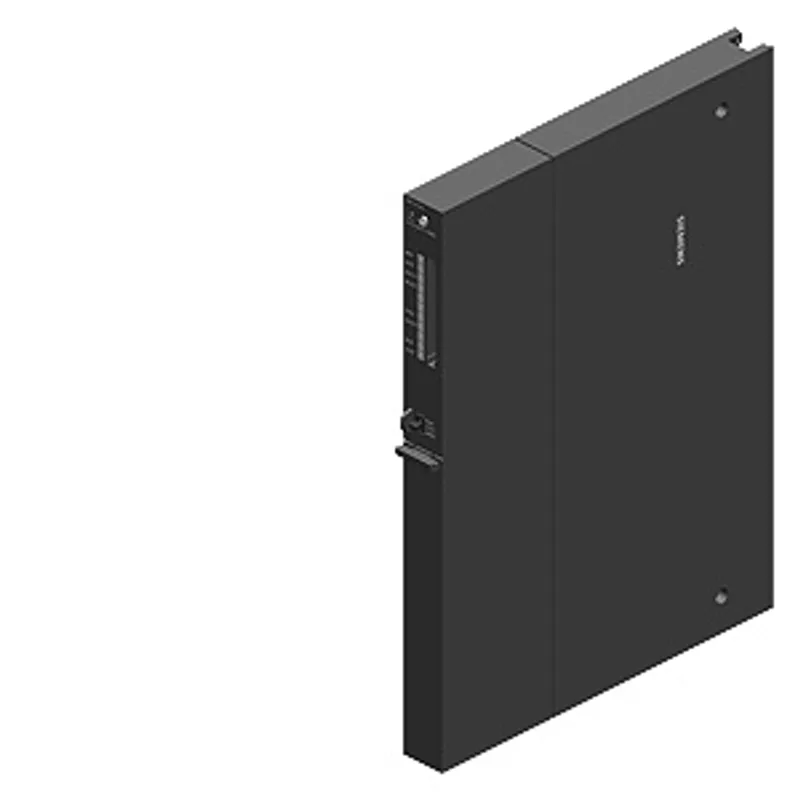

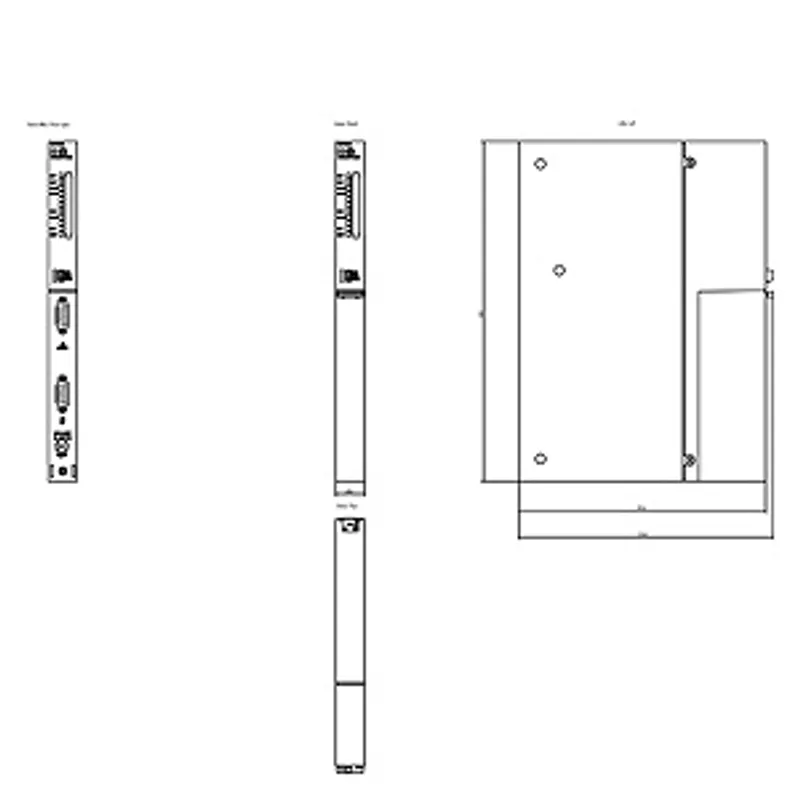

Siemens 6ES7416-2XP07-0AB0 – SIMATIC S7-400, CPU 416-2 — photo 3 of 4

Available on request

Siemens 6ES7416-2XP07-0AB0 – SIMATIC S7-400, CPU 416-2

MPN: 6ES7416-2XP07-0AB0 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	CPU 416
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	8.96 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 6ES7416-2XP07-0AB0 be shipped?

6ES7416-2XP07-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7416-2XP07-0AB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7416-2XP07-0AB0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7416-2XP07-0AB0, subject to availability and destination.

SIMATIC S7-400, CPU 416-2, Central processing unit with: Work memory 8 MB, (4 MB code, 4 MB data), 1st interface MPI/DP 12 Mbit/s, 2nd interface PROFIBUS DP,

Specifications

General information

Product type designation	CPU 416-2
HW functional status	01
Firmware version	V7.0
Product function — Isochronous mode	Yes; For PROFIBUS only
Engineering with — Programming package	STEP 7 V5.4 or higher with HSP 261

CiR - Configuration in RUN

CiR synchronization time, basic load	100 ms
CiR synchronization time, time per I/O byte	10 µs

Supply voltage

Rated value (DC)

Power supply via system power supply

Input current

from backplane bus 5 V DC, typ.	0.9 A
from backplane bus 5 V DC, max.	1.1 A
from backplane bus 24 V DC, max.	300 mA; 150 mA per DP interface
from interface 5 V DC, max.	90 mA; At each DP interface

Power loss

Power loss, typ.

4.5 W

Storage

Type of memory	RAM
Work memory — Integrated	8 Mbyte
Work memory — integrated (for program)	4 Mbyte
Work memory — integrated (for data)	4 Mbyte
Work memory — expandable	No
Load memory — expandable FEPROM	Yes; with Memory Card (FLASH)
Load memory — expandable FEPROM, max.	64 Mbyte
Load memory — integrated RAM, max.	1 Mbyte
Load memory — expandable RAM	Yes; with Memory Card (RAM)
Load memory — expandable RAM, max.	64 Mbyte
Backup — present	Yes
Backup — with battery	Yes; all data
Backup — without battery	No

Battery

Backup battery — Backup current, typ.	180 µA; up to 40 °C
Backup battery — Backup current, max.	850 µA
Backup battery — Backup time, max.	Dealt with in the module data manual with the secondary conditions and the factors of influence
Backup battery — Feeding of external backup voltage to CPU	5 V DC to 15 V DC

CPU processing times

for bit operations, typ.	12.5 ns
for word operations, typ.	12.5 ns
for fixed point arithmetic, typ.	12.5 ns
for floating point arithmetic, typ.	25 ns

CPU-blocks

DB — Number, max.	10 000; Number range: 1 to 16000
DB — Size, max.	64 kbyte
FB — Number, max.	5 000; Number range: 0 to 7999
FB — Size, max.	64 kbyte
FC — Number, max.	5 000; Number range: 0 to 7999
FC — Size, max.	64 kbyte
OB — Number, max.	see instruction list
OB — Size, max.	64 kbyte
OB — Number of free cycle OBs	1; OB 1
OB — Number of time alarm OBs	8; OB 10-17
OB — Number of delay alarm OBs	4; OB 20-23
OB — Number of cyclic interrupt OBs	9; OB 30-38 (shortest cycle that can be set = 500 µs)
OB — Number of process alarm OBs	8; OB 40-47
OB — Number of DPV1 alarm OBs	3; OB 55-57
OB — Number of isochronous mode OBs	4; OB 61-64
OB — Number of multicomputing OBs	1; OB 60
OB — Number of background OBs	1; OB 90
OB — Number of startup OBs	3; OB 100-102
OB — Number of asynchronous error OBs	9; OB 80-88
OB — Number of synchronous error OBs	2; OB 121, 122
Nesting depth — per priority class	24
Nesting depth — additional within an error OB	2

Counters, timers and their retentivity

S7 counter — Number	2 048
S7 counter — Retentivity — adjustable	Yes
S7 counter — Retentivity — preset	Z 0 to Z 7
S7 counter — Counting range — lower limit	0
S7 counter — Counting range — upper limit	999
IEC counter — present	Yes
IEC counter — Type	SFB
IEC counter — Number	Unlimited (limited only by RAM capacity)
S7 timer — Number	2 048
S7 timer — Retentivity — adjustable	Yes
S7 timer — Retentivity — preset	No times retentive
S7 timer — Time range — lower limit	10 ms
S7 timer — Time range — upper limit	9 990 s
IEC timer — present	Yes
IEC timer — Type	SFB
IEC timer — Number	Unlimited (limited only by RAM capacity)

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.	Total working and load memory (with backup battery)
Flag — Size, max.	16 kbyte; Size of bit memory address area
Flag — Retentivity available	Yes
Flag — Retentivity preset	MB 0 to MB 15
Flag — Number of clock memories	8; in 1 memory byte
Local data — adjustable, max.	32 kbyte
Local data — preset	16 kbyte

Address area

I/O address area — Inputs	16 kbyte
I/O address area — Outputs	16 kbyte
Process image — Inputs, adjustable	16 kbyte
Process image — Outputs, adjustable	16 kbyte
Process image — Inputs, default	512 byte
Process image — Outputs, default	512 byte
Process image — consistent data, max.	244 byte
Process image — Access to consistent data in process image	Yes
Subprocess images — Number of subprocess images, max.	15
Digital channels — Inputs	131 072
Digital channels — Inputs — of which central	131 072
Digital channels — Outputs	131 072
Digital channels — Outputs — of which central	131 072
Analog channels — Inputs	8 192
Analog channels — Inputs — of which central	8 192
Analog channels — Outputs	8 192
Analog channels — Outputs — of which central	8 192

Hardware configuration

Number of expansion units, max.	21
connectable OPs	95
Multicomputing	Yes; 4 CPUs max. (with UR1 or UR2)
Interface modules — Number of connectable IMs (total), max.	6
Interface modules — Number of connectable IM 460s, max.	6
Interface modules — Number of connectable IM 463s, max.	4; IM 463-2
Number of DP masters — integrated	2
Number of DP masters — via CP	10; CP 443-5 Extended
Number of DP masters — via IM 467	4
Number of DP masters — Mixed mode IM + CP permitted	No; IM 467 cannot be used jointly with CP 443-5 Ext. or CP 443-1 in PROFINET IO mode
Number of DP masters — via interface module	0
Number of DP masters — Number of pluggable S5 modules (via adapter capsule in central device), max.	6
Number of IO Controllers — integrated	0
Number of IO Controllers — Via CP	4; Max. 4 in the central controller; no mixed operation of different CP 443-1 types in PROFINET IO mode
Number of operable FMs and CPs (recommended) — FM	Limited by number of slots and number of connections
Number of operable FMs and CPs (recommended) — CP, PtP	CP 440: Limited by number of slots; CP 441: limited by number of connections
Number of operable FMs and CPs (recommended) — PROFIBUS and Ethernet CPs	14; In total max. 10 CPs as DP master and PROFINET controller, of which up to 10 IMs or CPs as DP master and up to 4 CPs as PROFINET controller
Slots — required slots	1

Time of day

Clock — Hardware clock (real-time)	Yes
Clock — retentive and synchronizable	Yes
Clock — Resolution	1 ms
Clock — Deviation per day (buffered), max.	1.7 s; Power off
Clock — Deviation per day (unbuffered), max.	8.6 s; For power On
Operating hours counter — Number	16
Operating hours counter — Number/Number range	0 to 15
Operating hours counter — Range of values	SFCs 2, 3 and 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours
Operating hours counter — Granularity	1 h
Operating hours counter — retentive	Yes
Clock synchronization — supported	Yes
Clock synchronization — to MPI, master	Yes
Clock synchronization — on MPI, device	Yes
Clock synchronization — to DP, master	Yes
Clock synchronization — on DP, device	Yes
Clock synchronization — in AS, master	Yes
Clock synchronization — in AS, device	Yes
Clock synchronization — on Ethernet via NTP	No; Via CP
Clock synchronization — to IF 964 DP	No
Time difference in system when synchronizing via — MPI, max.	200 ms

Interfaces

Interfaces/bus type	1 x MPI/PROFIBUS DP, 1 x PROFIBUS DP
Number of RS 485 interfaces	2; Combined MPI / PROFIBUS DP and PROFIBUS DP

1. Interface

Interface type	MPI/PROFIBUS DP
Isolated	Yes
Interface types — RS 485	Yes
Interface types — Output current of the interface, max.	150 mA
Protocols — MPI	Yes
Protocols — PROFIBUS DP master	Yes
Protocols — PROFIBUS DP device	Yes
MPI — Number of connections	44; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
MPI — Transmission rate, max.	12 Mbit/s
MPI — Services — PG/OP communication	Yes
MPI — Services — Routing	Yes
MPI — Services — Global data communication	Yes
MPI — Services — S7 basic communication	Yes
MPI — Services — S7 communication	Yes
MPI — Services — S7 communication, as client	Yes
MPI — Services — S7 communication, as server	Yes
PROFIBUS DP master — Number of connections, max.	32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
PROFIBUS DP master — Transmission rate, max.	12 Mbit/s
PROFIBUS DP master — max. number of DP devices	32
PROFIBUS DP master — Services — PG/OP communication	Yes
PROFIBUS DP master — Services — Routing	Yes; S7 routing
PROFIBUS DP master — Services — Global data communication	No
PROFIBUS DP master — Services — S7 basic communication	Yes
PROFIBUS DP master — Services — S7 communication	Yes
PROFIBUS DP master — Services — S7 communication, as client	Yes
PROFIBUS DP master — Services — S7 communication, as server	Yes
PROFIBUS DP master — Services — Equidistance	Yes
PROFIBUS DP master — Services — Isochronous mode	Yes
PROFIBUS DP master — Services — SYNC/FREEZE	Yes
PROFIBUS DP master — Services — activation/deactivation of DP devices	Yes
PROFIBUS DP master — Services — Direct data exchange (slave-to-slave communication)	Yes
PROFIBUS DP master — Services — DPV1	Yes
PROFIBUS DP master — Address area — Inputs, max.	2 kbyte
PROFIBUS DP master — Address area — Outputs, max.	2 kbyte
PROFIBUS DP master — User data per DP device — user data per DP device, max.	244 byte
PROFIBUS DP master — User data per DP device — Inputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Outputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Slots, max.	244
PROFIBUS DP master — User data per DP device — per slot, max.	128 byte
PROFIBUS DP device — Number of connections	32
PROFIBUS DP device — GSD file	http://support.automation.siemens.com/WW/view/en/113652
PROFIBUS DP device — Transmission rate, max.	12 Mbit/s
PROFIBUS DP device — automatic baud rate search	No
PROFIBUS DP device — Address area, max.	32; Virtual slots
PROFIBUS DP device — User data per address area, max.	32 byte
PROFIBUS DP device — User data per address area, max. — of which consistent, max.	32 byte
PROFIBUS DP device — Services — PG/OP communication	Yes; with interface active
PROFIBUS DP device — Services — Routing	Yes; with interface active
PROFIBUS DP device — Services — Global data communication	No
PROFIBUS DP device — Services — S7 basic communication	No
PROFIBUS DP device — Services — S7 communication	Yes
PROFIBUS DP device — Services — S7 communication, as client	Yes
PROFIBUS DP device — Services — S7 communication, as server	Yes
PROFIBUS DP device — Services — Direct data exchange (slave-to-slave communication)	No
PROFIBUS DP device — Services — DPV1	No
PROFIBUS DP device — Transfer memory — Inputs	244 byte
PROFIBUS DP device — Transfer memory — Outputs	244 byte

2. Interface

Interface type	PROFIBUS DP
Isolated	Yes
Interface types — RS 485	Yes
Interface types — Output current of the interface, max.	150 mA
Protocols — PROFIBUS DP master	Yes
Protocols — PROFIBUS DP device	Yes
PROFIBUS DP master — Number of connections, max.	32
PROFIBUS DP master — Transmission rate, max.	12 Mbit/s
PROFIBUS DP master — max. number of DP devices	125
PROFIBUS DP master — Services — PG/OP communication	Yes
PROFIBUS DP master — Services — Routing	Yes; S7 routing
PROFIBUS DP master — Services — Global data communication	No
PROFIBUS DP master — Services — S7 basic communication	Yes
PROFIBUS DP master — Services — S7 communication	Yes
PROFIBUS DP master — Services — S7 communication, as client	Yes
PROFIBUS DP master — Services — S7 communication, as server	Yes
PROFIBUS DP master — Services — Equidistance	Yes
PROFIBUS DP master — Services — Isochronous mode	Yes
PROFIBUS DP master — Services — SYNC/FREEZE	Yes
PROFIBUS DP master — Services — activation/deactivation of DP devices	Yes
PROFIBUS DP master — Services — Direct data exchange (slave-to-slave communication)	Yes
PROFIBUS DP master — Services — DPV1	Yes
PROFIBUS DP master — Address area — Inputs, max.	8 kbyte
PROFIBUS DP master — Address area — Outputs, max.	8 kbyte
PROFIBUS DP master — User data per DP device — user data per DP device, max.	244 byte
PROFIBUS DP master — User data per DP device — Inputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Outputs, max.	244 byte
PROFIBUS DP master — User data per DP device — Slots, max.	244
PROFIBUS DP master — User data per DP device — per slot, max.	128 byte
PROFIBUS DP device — Number of connections	32
PROFIBUS DP device — GSD file	http://support.automation.siemens.com/WW/view/en/113652
PROFIBUS DP device — Transmission rate, max.	12 Mbit/s
PROFIBUS DP device — Address area, max.	32
PROFIBUS DP device — User data per address area, max.	32 byte
PROFIBUS DP device — User data per address area, max. — of which consistent, max.	32 byte
PROFIBUS DP device — Services — Routing	Yes; with interface active
PROFIBUS DP device — Transfer memory — Inputs	244 byte
PROFIBUS DP device — Transfer memory — Outputs	244 byte

Protocols

SIMATIC communication — S7 routing	Yes
Open IE communication — ISO-on-TCP (RFC1006)	Via CP 443-1 and loadable FB
Open IE communication — ISO-on-TCP (RFC1006) — Data length, max.	1 452 bytes via CP 443-1 Adv.
Web server — supported	No

Isochronous mode

Equidistance	Yes
Number of DP masters with isochronous mode	2
payload per isochronous device, max.	244 byte
shortest clock pulse	1 ms; 0.5 ms without use of SFC 126, 127
max. cycle	32 ms

Communication functions

PG/OP communication	Yes
PG/OP communication — Number of connectable OPs with message processing	95; When using Alarm_S/SQ and Alarm_D/DQ
PG/OP communication — Number of connectable OPs without message processing	95
Data record routing	Yes
Global data communication — supported	Yes
Global data communication — Number of GD loops, max.	16
Global data communication — Number of GD packets, transmitter, max.	16
Global data communication — Number of GD packets, receiver, max.	32
Global data communication — Size of GD packets, max.	54 byte
Global data communication — Size of GD packet (of which consistent), max.	1 variable
S7 basic communication — supported	Yes
S7 basic communication — User data per job, max.	76 byte
S7 basic communication — User data per job (of which consistent), max.	1 variable
S7 communication — supported	Yes
S7 communication — as server	Yes
S7 communication — as client	Yes
S7 communication — User data per job, max.	64 kbyte
S7 communication — User data per job (of which consistent), max.	462 byte; 1 variable
S5 compatible communication — supported	Yes; Via FC AG_SEND and AG_RECV, max. via 10 CP 443-1 or 443-5
S5 compatible communication — User data per job, max.	8 kbyte
S5 compatible communication — User data per job (of which consistent), max.	240 byte
S5 compatible communication — Number of simultaneous AG-SEND/AG-RECV orders per CPU, max.	64/64
Standard communication (FMS) — supported	Yes; Via CP and loadable FB
Number of connections — overall	96
Number of connections — usable for PG communication	95
Number of connections — usable for PG communication — reserved for PG communication	1
Number of connections — usable for PG communication — adjustable for PG communication, max.	0
Number of connections — usable for OP communication	95
Number of connections — usable for OP communication — reserved for OP communication	1
Number of connections — usable for OP communication — adjustable for OP communication, max.	0
Number of connections — usable for S7 basic communication	94
Number of connections — usable for S7 basic communication — reserved for S7 basic communication	0
Number of connections — usable for S7 basic communication — adjustable for S7 basic communication, max.	0
Number of connections — usable for S7 communication	94
Number of connections — usable for S7 communication — reserved for S7 communication	0
Number of connections — usable for S7 communication — adjustable for S7 communication, max.	0
Number of connections — usable for routing	47
Number of connections — usable for routing — reserved for routing	0
Number of connections — usable for routing — adjustable for routing, max.	0

S7 message functions

Number of login stations for message functions, max.	95; Max. 95 with Alarm_S/SQ and Alarm_D/DQ (OPs); max. 16 with Alarm, Alarm_8, Alarm_8P, Notify and Notify_8 (e.g. WinCC)
Symbol-related messages	Yes
SCAN procedure	Yes
Program alarms	Yes
Process diagnostic messages	Yes
simultaneously active Alarm_S blocks, max.	1 000; Simultaneously active alarm_S/SQ blocks or alarm_D/DQ blocks
Alarm 8-blocks	Yes
Alarm 8-blocks — Number of instances for alarm 8 and S7 communication blocks, max.	4 000
Alarm 8-blocks — preset, max.	600
Process control messages	Yes
Number of archives that can log on simultaneously (SFB 37 AR_SEND)	32
Number of messages — overall, max.	1 024
Number of messages — in 100 ms grid, max.	128
Number of messages — in 500 ms grid, max.	512
Number of messages — in 1000 ms grid, max.	1 024
Number of additional values — with 100 ms grid, max.	1
Number of additional values — with 500, 1000 ms grid, max.	10

Test commissioning functions

Status block	Yes; Up to 16 simultaneously
Single step	Yes
Number of breakpoints	16
Status/control — Status/control variable	Yes; Up to 16 variable tables
Status/control — Variables	Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Status/control — Number of variables, max.	70; Status/control
Forcing — Forcing	Yes
Forcing — Forcing, variables	Inputs, outputs, bit memories, peripheral inputs, peripheral outputs
Forcing — Number of variables, max.	512
Diagnostic buffer — present	Yes
Diagnostic buffer — Number of entries, max.	3 200
Diagnostic buffer — Number of entries, max. — can be set	Yes
Diagnostic buffer — Number of entries, max. — preset	120
Service data — Can be read out	Yes

Standards, approvals, certificates

CE mark	Yes
CSA approval	Yes
UL approval	Yes
cULus	Yes
FM approval	Yes
RCM (formerly C-TICK)	Yes
KC approval	Yes
EAC (formerly Gost-R)	Yes

Ambient conditions

Ambient temperature during operation — min.	0 °C
Ambient temperature during operation — max.	60 °C

Configuration

Configuration software — STEP 7	Yes
Programming — Command set	see instruction list
Programming — Nesting levels	7
Programming — Access to consistent data in process image	Yes
Programming — System functions (SFC)	see instruction list
Programming — System function blocks (SFB)	see instruction list
Programming — Programming language — LAD	Yes
Programming — Programming language — FBD	Yes
Programming — Programming language — STL	Yes
Programming — Programming language — SCL	Yes
Programming — Programming language — CFC	Yes
Programming — Programming language — GRAPH	Yes
Programming — Programming language — HiGraph®	Yes
Programming — Number of simultaneously active SFCs — DPSYC_FR	2; SFC 11; per interface
Programming — Number of simultaneously active SFCs — D_ACT_DP	8; SFC 12; per interface
Programming — Number of simultaneously active SFCs — RD_REC	8; SFC 59; per interface
Programming — Number of simultaneously active SFCs — WR_REC	8; SFC 58; per interface
Programming — Number of simultaneously active SFCs — WR_PARM	8; SFC 55; per interface
Programming — Number of simultaneously active SFCs — PARM_MOD	1; SFC 57; per interface
Programming — Number of simultaneously active SFCs — WR_DPARM	2; SFC 56; per interface
Programming — Number of simultaneously active SFCs — DPNRM_DG	8; SFC 13; per interface
Programming — Number of simultaneously active SFCs — RDSYSST	8; SFC 51
Programming — Number of simultaneously active SFCs — DP_TOPOL	1; SFC 103; per interface
Programming — Number of simultaneously active SFBs — RDREC	8; SFB 52; per interface, but not more than 32 across all external interfaces
Programming — Number of simultaneously active SFBs — WRREC	8; SFB 53; per interface, but not more than 32 across all external interfaces
Know-how protection — User program protection/password protection	Yes
Know-how protection — Block encryption	Yes; With S7 block Privacy
