CPU 416 Parts

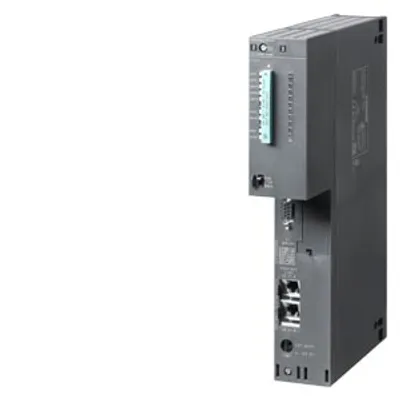

Available on requestSiemens 6ES7416-3ES07-0AB0 – SIMATIC S7-400, CPU 416-3 PN/DP Central processing unit…MPN: 6ES7416-3ES07-0AB0 · Siemens
Price on request
Request a quote

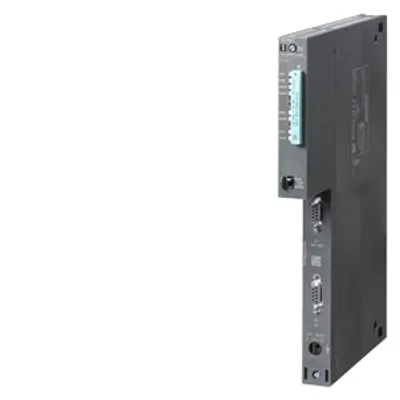

Available on requestSiemens 6ES7416-2XP07-0AB0 – SIMATIC S7-400, CPU 416-2MPN: 6ES7416-2XP07-0AB0 · Siemens
Price on request
Request a quote

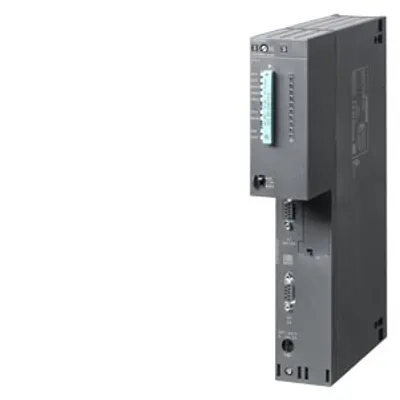

Available on requestSiemens 6ES7416-3XS07-0AB0 – SIMATIC S7-400, CPU 416-3MPN: 6ES7416-3XS07-0AB0 · Siemens
Price on request
Request a quoteCompare CPU 416
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | from backplane bus 5 V DC, typ. | from backplane bus 5 V DC, max. | Power loss, typ. | Number of DP masters — via interface module |
|---|---|---|---|---|---|
| 6ES7416-3ES07-0AB0 | CPU 416-3 PN/DP | 1.3 A | 1.6 A | 6.5 W | 1; IF 964-DP |
| 6ES7416-2XP07-0AB0 | CPU 416-2 | 0.9 A | 1.1 A | 4.5 W | 0 |
| 6ES7416-3XS07-0AB0 | CPU 416-3 | 1.1 A | 1.3 A | 5.5 W | 1 |
Common to all listed parts
| HW functional status | 01 |
| Firmware version | V7.0 |
| CiR synchronization time, basic load | 100 ms |
| CiR synchronization time, time per I/O byte | 10 µs |
| Rated value (DC) | Power supply via system power supply |
| from interface 5 V DC, max. | 90 mA; At each DP interface |
| Type of memory | RAM |
| Work memory — expandable | No |
