Siemens 3VA9114-0RL21

Residual current device RCD520B basic RCD type B or B+ loadside mounted rated resid. current 0.03...5 A…

MPN: 3VA9114-0RL21
Category: Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 3VA9114-0RL21?

residual current device RCD520B basic RCD type B or B+ loadside mounted rated resid. current 0.03...5 A adjustable tv 0...10,000 ms 4-pole In=160 A Ue=127-690 V accessory for: 3VA11

Specifications

Model

product brand name	SENTRON
product designation	Residual current protection device types B and B+
accessories	Residual current protection module type B and B+

General technical data

fastening method	screw fixing
number of poles	4
protection class IP / on the front	IP40

Voltage

supply voltage / at AC — minimum	127 V
supply voltage / at AC — maximum	690 V

Current

operational current / at AC / rated value	160 A
response value / of the residual current	0.03;0.05;0.1;0.3;0.5;1;3;5
product function / communication with residual current equipment	No
product function / integrated / alarm management	Yes
product function / integrated / alarm management	Pre-alarm indication 30%
product function / remote-controlled tripping	No
product feature / sealable	Yes
product function / selectable tripping characteristic	Yes
product function / selectable RCD or monitoring mode	Yes
position / of the infeed / on the RCD component	Top or bottom
type of electrical connection / for main current circuit	busbar connection
set values / of the limit value of not tripping time	0;0.06;0.15;0.3;0.5;1.0;2.0;3.0;5.0;10.0
type of trip indicator / electrical	Yes
type of trip indicator / communication	No
power loss [W] / maximum	7.6 W
operating frequency / rated value / maximum	60 Hz
frequency / of fault current — minimum	0 Hz
frequency / of fault current — maximum	100 000 Hz

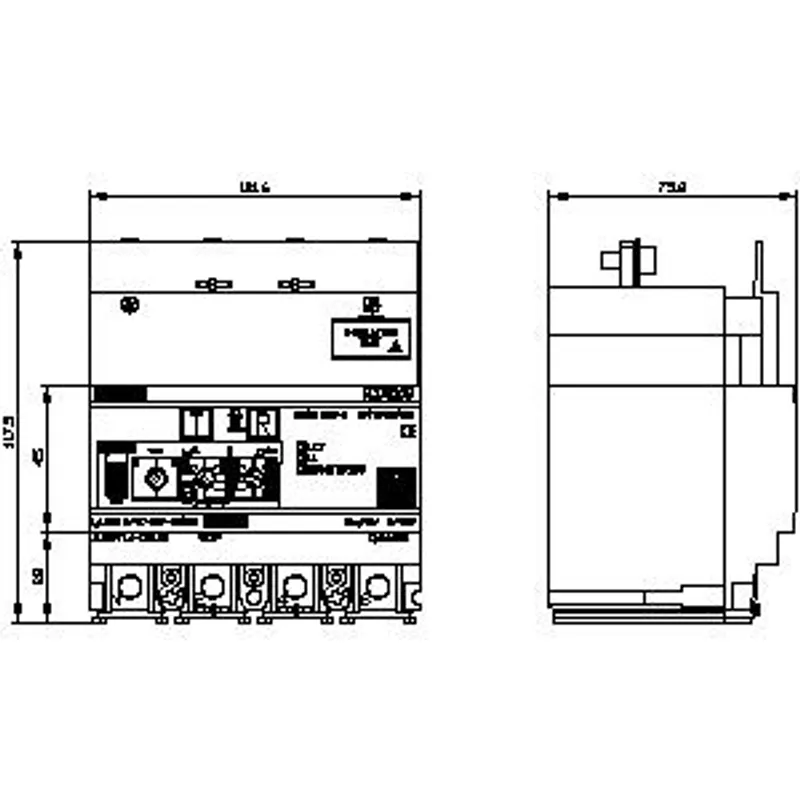

Mechanical Design

height	100 mm
width	101.5 mm
depth	70 mm
net weight	710 g
Net Weight	933 g

Connetctions according UL

ambient temperature / during operation — minimum	-25 °C
ambient temperature / during operation — maximum	70 °C
ambient temperature / during storage — minimum	-40 °C
ambient temperature / during storage — maximum	80 °C
